iZ 4818 KAA (968999205) - Husqvarna 48" Zero-Turn Mower (2004-08) Main Frame Assembly Parts Diagram

48" Zero-Turn Mower

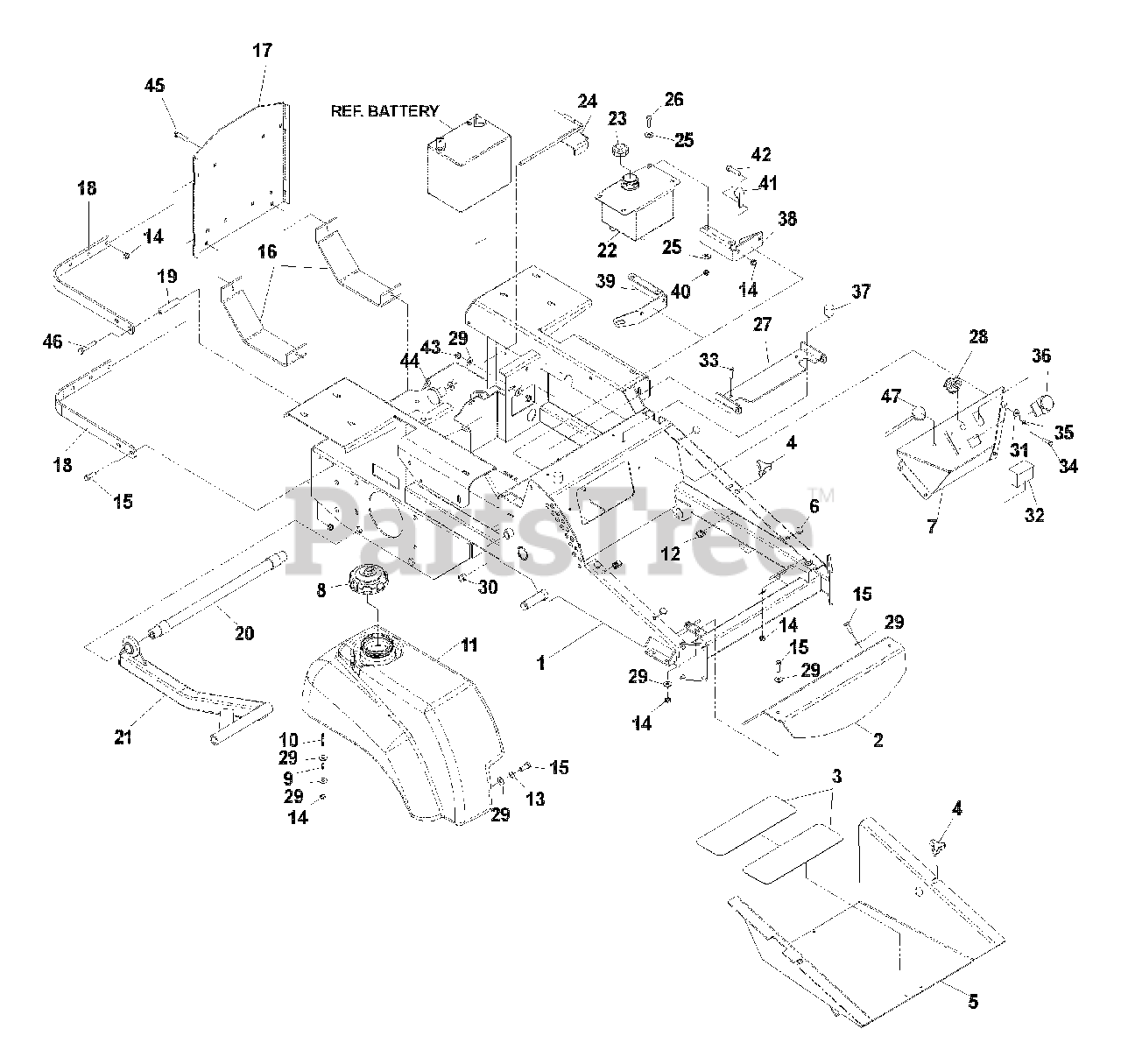

Main Frame Assembly Parts Diagram

  • Title
1

Husqvarna 539107434

FRAME W/DECALS

$

$

Not available

2

$70.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539106954

FOOT PLATE

$113.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, Qty 15

0

7

Husqvarna 539104996

CONSOLE WLDMT.

$54.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539106188

FUEL CAP
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 2 left!

0

$10.99

$

In Stock, only 4 left!

0

11

Husqvarna 539104410

FUEL TANK, RIGHT

$

$

Not available

11

Husqvarna 539104409

FUEL TANK, LEFT

Note: (NOT SHOWN)

$

$

Not available

12

Husqvarna 539104763

"U" CLIP, 5/16C

$6.49

$

In Stock, Qty 12

0

13

Husqvarna 539990187

LOCKWASHER, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

14

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106957

SKID PLATE

$21.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

$21.99

$

In Stock, only 1 left!

0

$51.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539104197

STRUT MT WLDMT

$

$

Not available

21

Husqvarna 539108350

STRUT, RIGHT

$667.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539108351

STRUT, LEFT

Note: (NOT SHOWN)

$169.99

$

Usually ships in 3-10 days

0

22

$

$

Not available

23

Husqvarna 539101202

CAP OIL TANK

$24.99

$

In Stock, only 1 left!

0

24

Husqvarna 539106899

BATTERY HOLD DOWN

$68.99

$

In Stock, only 1 left!

0

25

Husqvarna 539990598

WASHER, 1/4, FLAT

$

$

Not available

26

Husqvarna 539990580

HCS 1/4C X 3/4

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105224

SEAT BKT W/DECAL

$30.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539101770

SWITCH, IGNITION

$

$

Not available

29

Husqvarna 539990692

WASHER, 5/16, FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

30

$

$

Not available

31

Husqvarna 539990598

WASHER, 1/4, FLAT

$

$

Not available

32

Husqvarna 539102540

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

33

Husqvarna 539990580

HCS 1/4C X 3/4

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990362

TFS 1/4C X 5/8

$4.99

$

In Stock, Qty 12

0

35

Husqvarna 539990052

LOCKWASHER, 1/4

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101768

BLADE SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 9

0

37

Husqvarna 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539106931

TANK MOUNT, RIGHT

$

$

Not available

39

Husqvarna 539106929

TANK MOUNT, LEFT

$8.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539976978

NUT, 1/4C, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

41

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990184

LOCKNUT, 5/16C

$3.99

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

45

Husqvarna 539107271

RHSSNB 5/16 X 1
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

46

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539102733

CHOKE CONTROL

$56.99

$

In Stock, Qty 5

0

Husqvarna 539105281

HOSE, FUEL (TO ENGINE)
(Superseded to 539105382)

Note: (NOT SHOWN)

$13.99

$

In Stock, only 2 left!

0

Husqvarna 539105527

HOSE, FUEL (RIGHT TANK)
(Superseded to 539110424)

Note: (NOT SHOWN)

$7.99

$

In Stock, only 2 left!

0

Husqvarna 539105530

HOSE, FUEL (LEFT TANK)

Note: (NOT SHOWN)

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 539102679

VALVE, FUEL

Note: (NOT SHOWN)

$56.99

$

In Stock, only 2 left!

0

Husqvarna 539912222

CLAMP, HOSE

Note: (NOT SHOWN)

$4.99

$

In Stock, only 1 left!

0

Husqvarna 539102650

HOSE BARB, 90°.

Note: (NOT SHOWN)

$

$

Not available

Husqvarna 539103275

CONTROL THROTTLE

Note: (NOT SHOWN)

$34.99

$

In Stock, only 1 left!

0
