iZ 4818 (968999205) - Husqvarna 48" Zero-Turn Mower (2004-08) MAINFRAME, LEFT SIDE Parts Diagram

48" Zero-Turn Mower

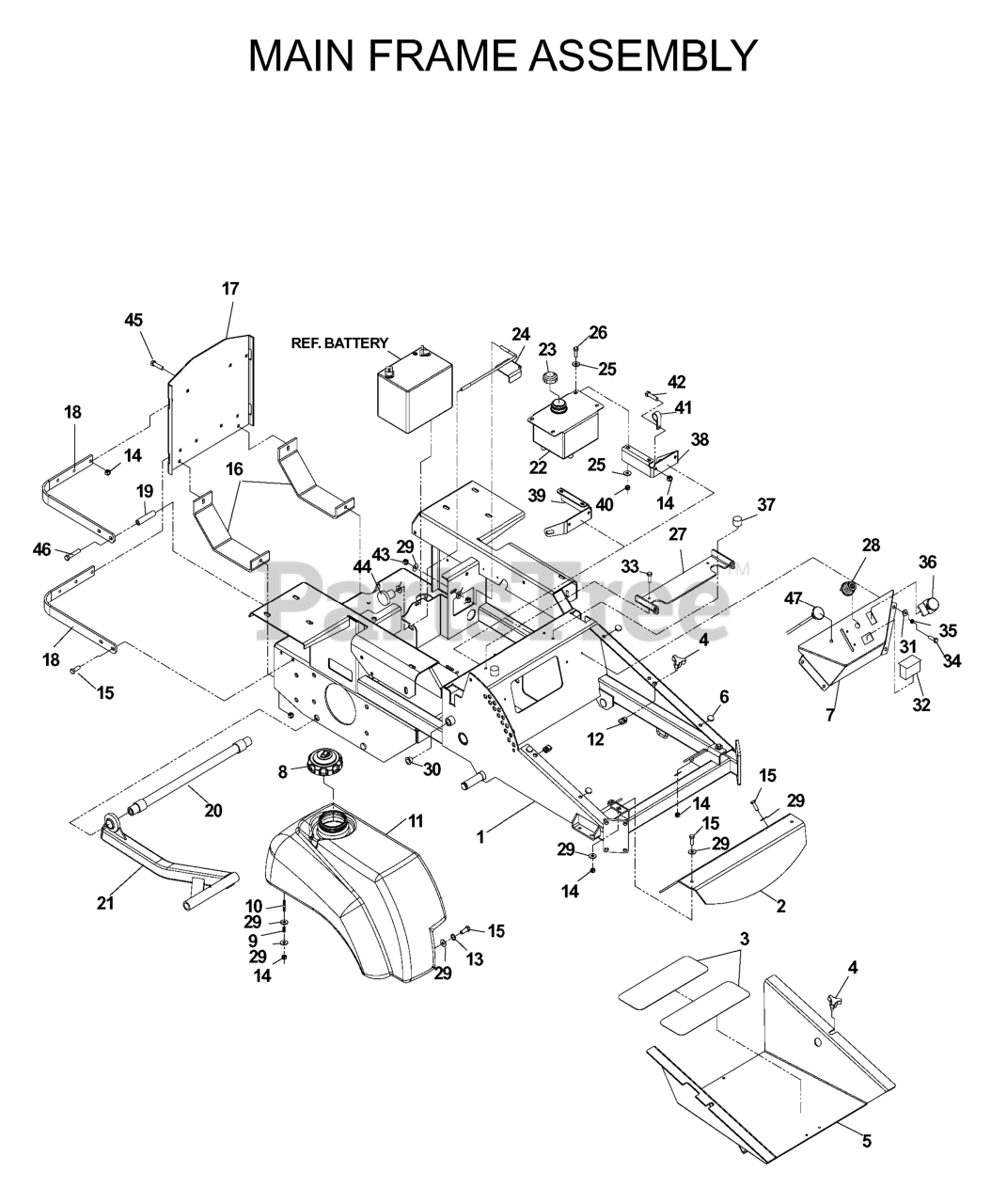

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

539108351

Husqvarna 539108351

STRUT, LEFT

$169.99

$

Usually ships in 3-10 days

0

539104409

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

$

$

Not available

27

Husqvarna 539105224

SEAT BRKT W/DECAL

$30.99

$

Usually ships in 3-10 days

0

539105530

Husqvarna 539105530

FUEL LINE 34"

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539102685

LOOM CLIP

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539102519

BUSHING

$

$

Not available

17

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539106929

TANK MOUNT

$8.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539104410

FUEL TANK RT

$

$

Not available

22

Husqvarna 539105024

OIL TANK

$

$

Not available

4

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, Qty 9

0

9

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

25

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

47

Husqvarna 539102733

CHOKE CONTROL, COMPLETE

$56.99

$

In Stock, Qty 5

0

6

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

1

Husqvarna 539107434

MAIN FRAME W/ DECALS

$

$

Not available

38

Husqvarna 539106931

TANK MOUNT

$

$

Not available

539105527

Husqvarna 539105527

FUEL LINE 24"
(Superseded to 539110424)

$7.99

$

In Stock, only 2 left!

0

18

Husqvarna 539106961

ENGINE SHROUD BRKT

$21.99

$

In Stock, only 1 left!

0

539105281

Husqvarna 539105281

FUEL LINE 29.5"
(Superseded to 539105382)

$13.99

$

In Stock, only 2 left!

0

539912222

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 539106962

SPACER

$51.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

43

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539104197

STRUT MOUNT WELDMENT

$

$

Not available

5

Husqvarna 539106954

FOOT PLATE

$113.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

539102650

Husqvarna 539102650

HOSE BARB 90 DEGREE

$

$

Not available

539103275

Husqvarna 539103275

THROTTLE CABLE

$34.99

$

In Stock, only 1 left!

0

32

Husqvarna 539102540

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

8

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

26

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539108350

STRUT, RIGHT

$667.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

45

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

29

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539106899

BATTERY HOLD DOWN

$68.99

$

In Stock, only 1 left!

0

2

Husqvarna 539106941

FOOTREST ORANGE

$70.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

33

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101202

HYDRAULIC CAP

$24.99

$

In Stock, only 1 left!

0

539102679

Husqvarna 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

7

Husqvarna 539104996

CONSOLE WLD

$54.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106957

SKID PLATE

$21.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539101770

IGNITION SWITCH KIT

$

$

Not available
