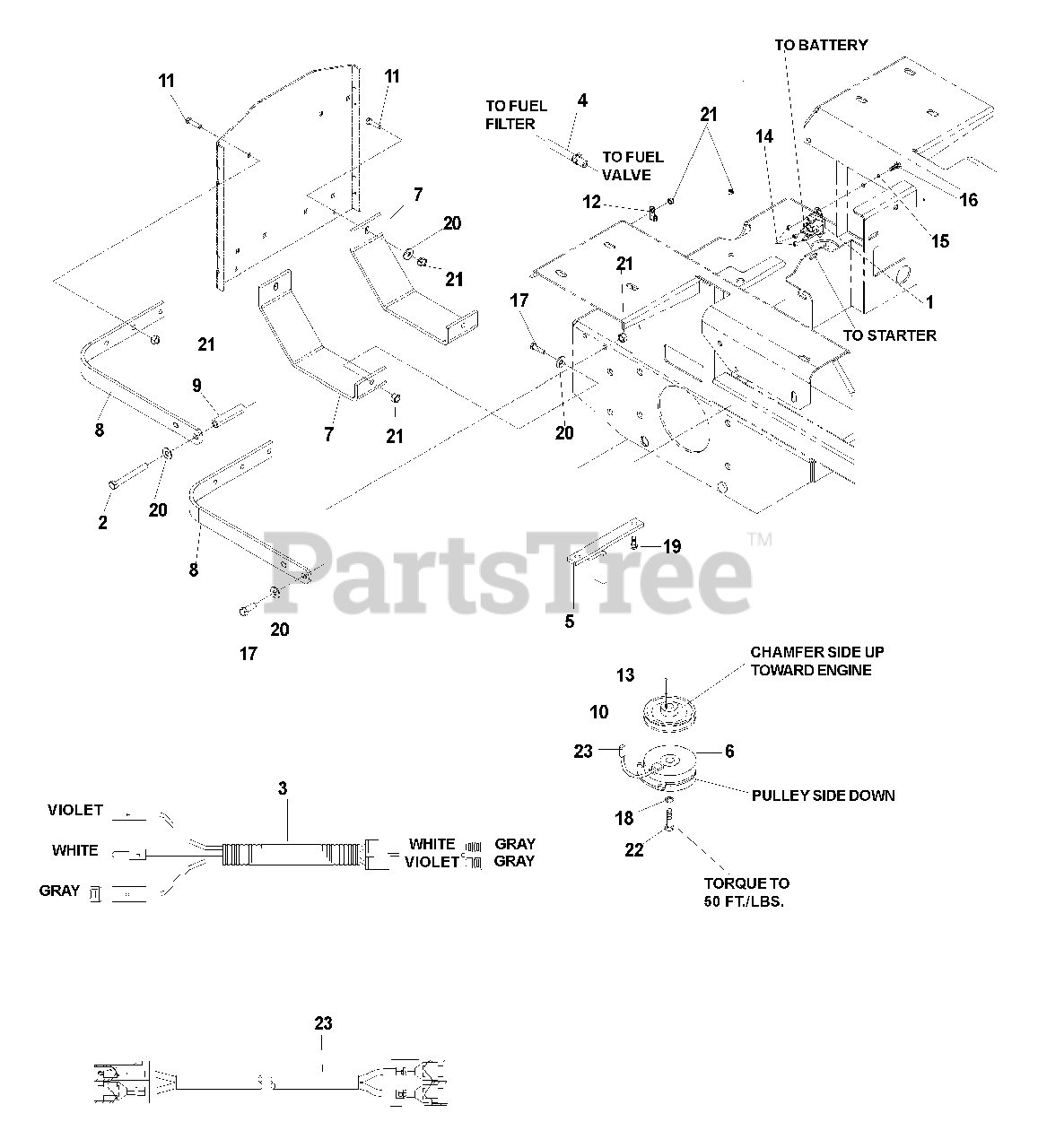

iZ 4817 TSKAA (968999255) - Husqvarna 48" Zero-Turn Mower (2006-08) Kawasaki 17 & 19 HP Engine Assembly Parts Diagram

48" Zero-Turn Mower

Kawasaki 17 & 19 HP Engine Assembly Parts Diagram

  • Title
1

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102335

HCS, 5/16-18 X 4, GR5

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539104415

PIGTAIL, KAWASAKI

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539105281

FUEL LINE HOSE
(Superseded to 539105382)

$13.99

$

In Stock, only 2 left!

0

5

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

$

$

Not available

7

Husqvarna 539106957

SKID PLATE

$21.99

$

Usually ships in 3-10 days

0

$21.99

$

In Stock, only 1 left!

0

$51.99

$

Usually ships in 3-10 days

0

$

$

Not available

11

Husqvarna 539107271

RHSNB, 5/16-18 X 1, GR5
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 539109867

CLAMP, DOUBLE TUBE

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976978

NUT, 1/4-20, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990053

WASHER, 1/4

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 539990072

HCS, 1/4-20 X 5/8, GR5

$3.99

$

In Stock, only 1 left!

0

17

Husqvarna 539990209

HCS, 5/16-18 X 1, GR5

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

19

Husqvarna 539990669

HCS, 5/16-18 X 1 3/4, GR5
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

20

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539991120

HCS, 7/16-20 X 2 1/2, GR5

$6.99

$

In Stock, Qty 8

0

23

Husqvarna 539105637

CLUTCH HARNESS

$26.99

$

In Stock, Qty 6

0

Husqvarna 539102757

CABLE

Note: (NOT SHOWN)

$15.99

$

Usually ships in 3-10 days

0

Husqvarna 539102759

INSULATOR, BATTERY

Note: (NOT SHOWN)

$4.99

$

In Stock, only 2 left!

0
