iZ 4817 T (968999255) - Husqvarna 48" Zero-Turn Mower (2005-08) SEAT Parts Diagram

48" Zero-Turn Mower

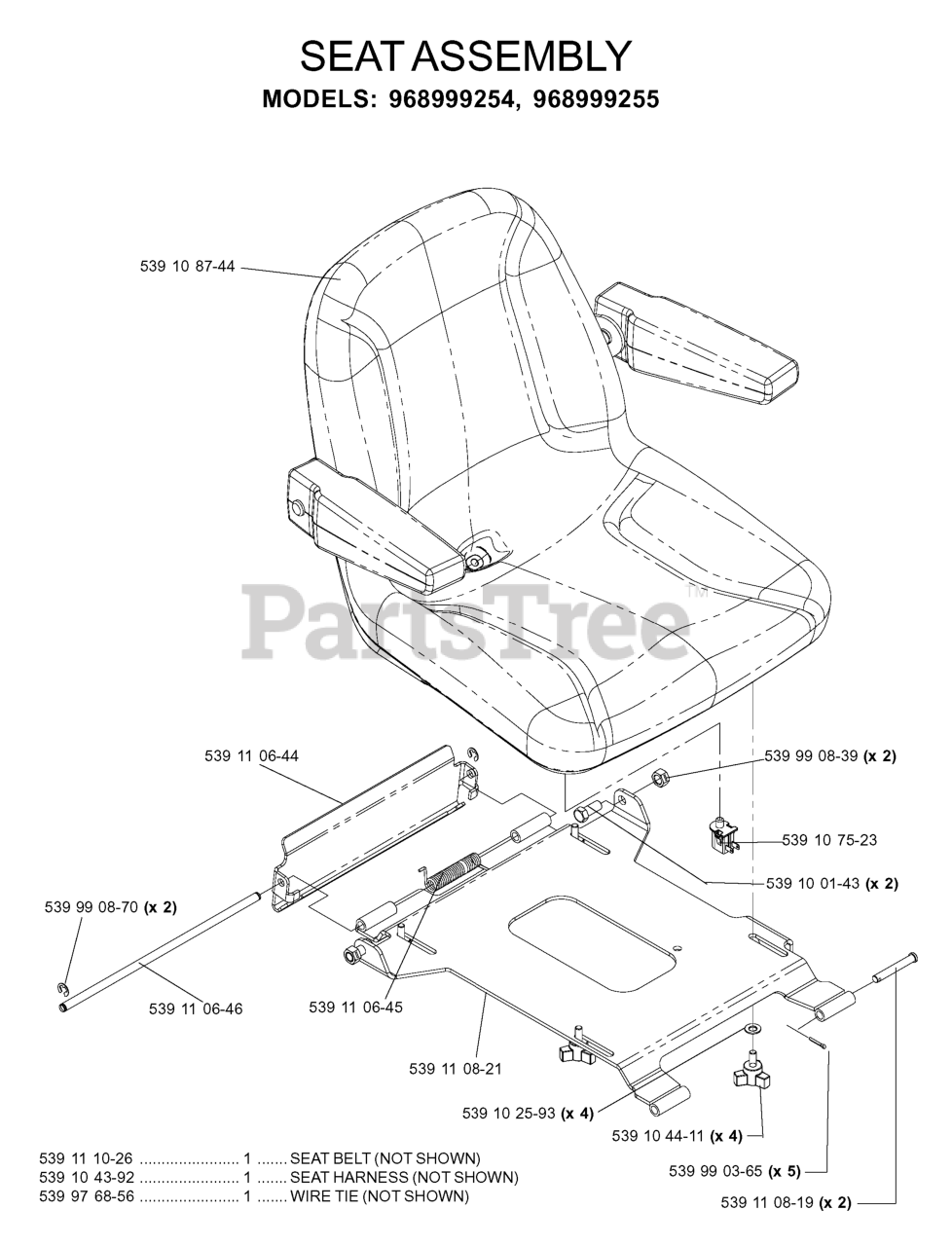

SEAT Parts Diagram

  • Title

539 10 87-44

Husqvarna 539108744

SEAT W/ARMRESTS

$

$

Not available

539 11 10-26

Husqvarna 539111026

SEAT BELT

Note: SEAT BELT (NOT SHOWN)

$

$

Not available

539 11 06-46

Husqvarna 539110646

SEAT LATCH ROD

$14.99

$

Usually ships in 3-10 days

0

539 99 08-39

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

539 10 01-43

Husqvarna 539100143

HCS 7/16-14 X 1 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

539 11 06-44

Husqvarna 539110644

SEAT LATCH BRACKET

$34.99

$

Usually ships in 3-10 days

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 11 08-19

Husqvarna 539110819

CLEVIS PIN 3/8

$3.99

$

Usually ships in 3-10 days

0

539 10 25-93

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

539 99 08-70

Husqvarna 539990870

E RING 3/8"

$6.49

$

In Stock, only 1 left!

0

539 11 08-21

Husqvarna 539110821

SEAT MOUNT WLDMT, PAN

$109.99

$

Usually ships in 3-10 days

0

539 10 43-92

Husqvarna 539104392

SEAT HARNESS

Note: SEAT HARNESS (NOT SHOWN)

$

$

Not available

539 10 44-11

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

539 97 68-56

Husqvarna 539976856

TIE, PLASTIC

Note: WIRE TIE (NOT SHOWN)

$5.99

$

Usually ships in 3-10 days

0

539 10 75-23

Husqvarna 539107523

SEAT SWITCH

$10.99

$

In Stock, Qty 6

0

539 11 06-45

Husqvarna 539110645

TORSION SPRING (SEAT)

$12.99

$

Usually ships in 3-10 days

0
