iZ 4817 (968999230) - Husqvarna 48" Zero-Turn Mower (2004-09) 48"/122CM CUTTING DECK Parts Diagram

48" Zero-Turn Mower

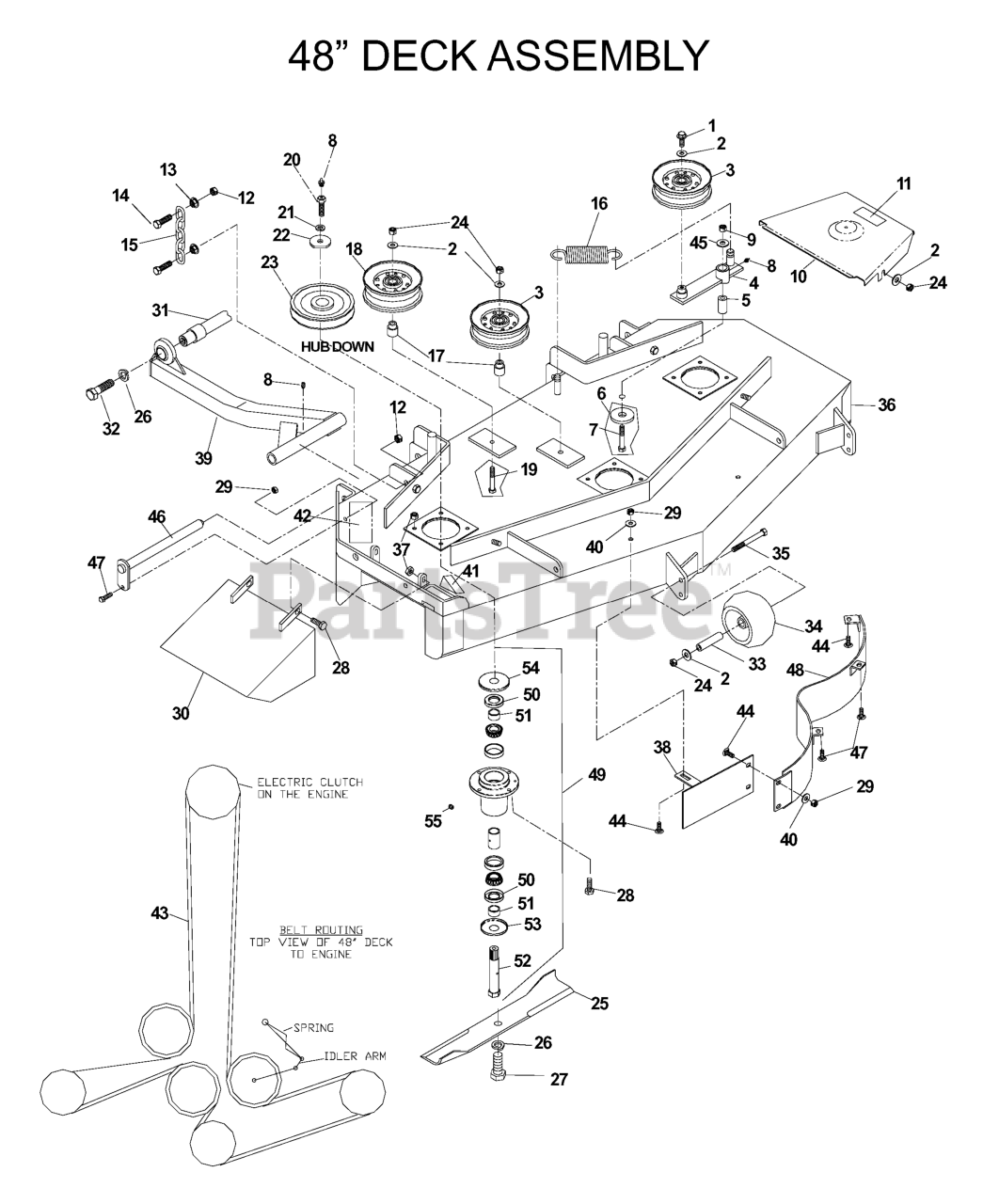

48"/122CM CUTTING DECK Parts Diagram

  • Title

11

Husqvarna 539102892

DECAL, NO STEP

$0.99

$

In Stock, only 2 left!

0

12

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

25

Husqvarna 539100340

BLADE OEM 16 1/4"

$26.99

$

In Stock, only 3 left!

0

18

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

54

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

539108902

Husqvarna 539108902

RT 48 SHIELD, ORG

$

$

Not available

6

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

539104621

Husqvarna 539104621

STRUT SLDMT-LT
(Superseded to 539108351)

$169.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539103687

DECK BELT 48"
(Superseded to 539111949)

$

$

Not available

13

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

35

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

42

Husqvarna 539100344

DECAL, DANGER

$

$

Not available

10

Husqvarna 539108904

LT 48 SHIELD, ORG

$

$

Not available

28

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

55

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539104609

STRUT WLDMT - RT
(Superseded to 539108350)

$667.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539104199

HCS 5/8C X 2 GR.5

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539105448

MAIN BAFFLE - 48" DECK BLK

$364.99

$

In Stock, only 1 left!

0

20

Husqvarna 539108766

DRILLED BOLT 7/16-20 X 1 1/2"
(Superseded to 539112120)

$30.99

$

In Stock, only 1 left!

0

8

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

23

Husqvarna 539107276

RP PULLEY - 42/48"
(Superseded to 539112141)

$43.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539107350

CHUTE 48"
(Superseded to 539107351)

$56.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

33

Husqvarna 539102698

BUSHING

$

$

Not available

46

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

9

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539105444

CENTER BAFFLE 48"

$

$

Not available

4

Husqvarna 539103230

IDLER ARM

$

$

Not available

52

Husqvarna 539108759

SPLINED SHAFT - 42/48"

$

$

Not available

21

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

5

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

1

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

49

Husqvarna 539108772

SPINDLE ASSY - 42/48"
(Superseded to 966956001)

$

$

Not available

51

Husqvarna 539108758

SPACER

$

$

Not available

22

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

19

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

44

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539104197

STRUT MOUNT WELDMENT

$

$

Not available

34

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

3

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

37

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

2

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

36

Husqvarna 539105779

DECK W/DECALS 48"

$

$

Not available

41

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

53

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0
