iZ 4218 KAA (968999204) - Husqvarna 42" Zero-Turn Mower (2004-08) Park Brake Assembly Parts Diagram

42" Zero-Turn Mower

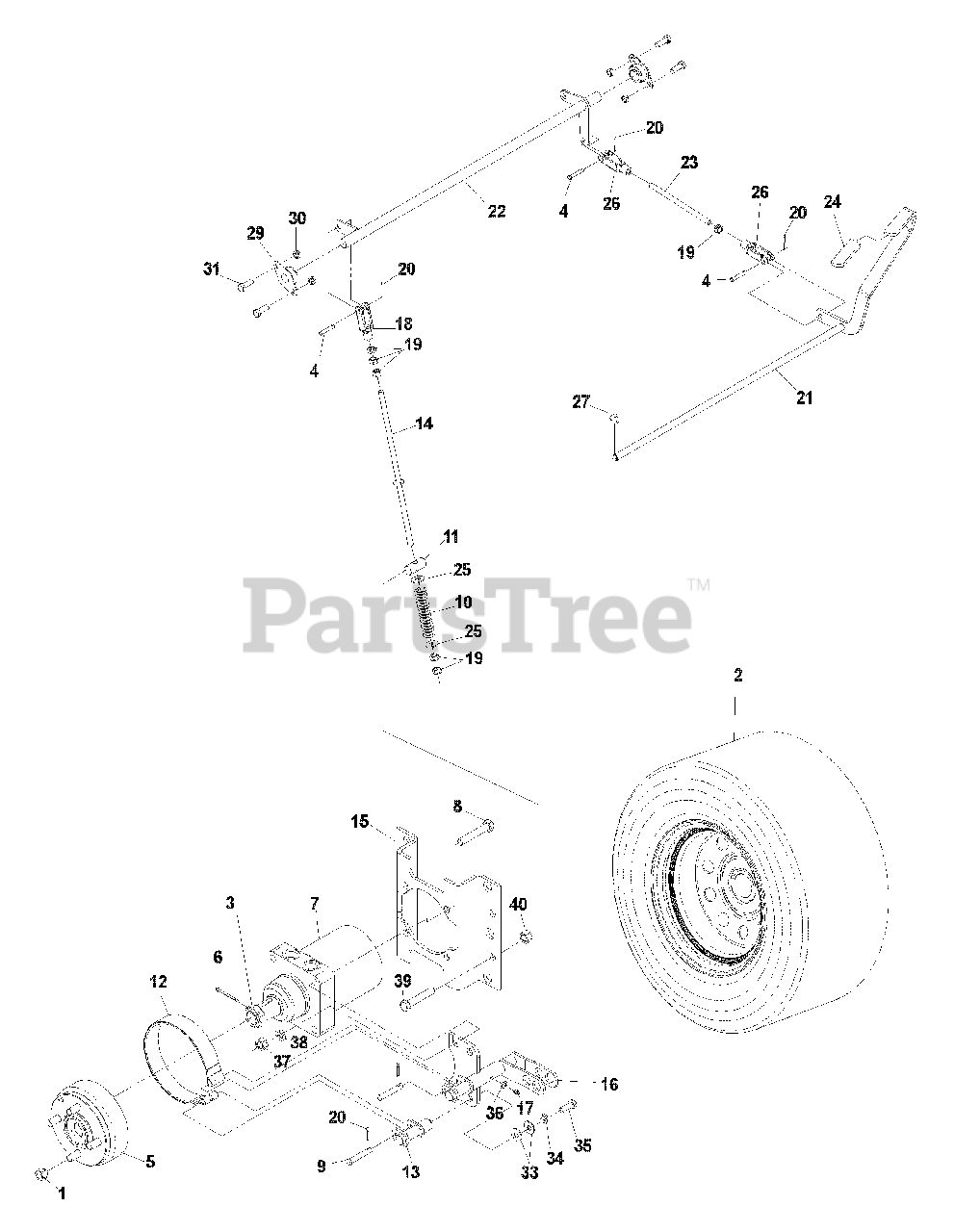

Park Brake Assembly Parts Diagram

  • Title

1

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

2

Husqvarna 539106882

REAR TIRE ASM.(COMPLETE)(42" DECK)

$

$

Not available

2

Husqvarna 539107432

TIRE, 23 X 8.5-12
(Superseded to 522905001)

$399.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107392

RIM, 12 X 7
(Superseded to 539106882)

$

$

Not available

2

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 539106883

REAR TIRE ASM.(COMPLETE)(48" & 52" DECK)

$339.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107431

TIRE, 23 X 10.5-12

$423.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105983

RIM, 12 X 8.5

$

$

Not available

3

Husqvarna 539101468

HEX SLOTTED NUT

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539977703

CLEVIS PIN, 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

5

Husqvarna 539102415

HUB, W/BRAKE DRUM

$

$

Not available

6

Husqvarna 539104288

KEY-COTTER 4 MM X 45 MM

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539104417

WHEEL MOTOR

$1092.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

9

Husqvarna 539102746

PIN-CLEVIS, 3/8 X 2

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102817

SPRING-BRAKE COMPRESSION

$

$

Not available

11

Husqvarna 539102821

PIN-TRUNION

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102822

BAND-BRAKE

$

$

Not available

13

Husqvarna 539106873

BRAKE BAND SUPPORT

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539106972

LINKAGE

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106989

MOTOR STANDOFF

$48.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106990

BRAKE WLDMT

$

$

Not available

17

Husqvarna 539976998

ZERK, STRAIGHT, 1/4-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539977465

YOKE, 3/8-24

$24.99

$

In Stock, Qty 11

0

19

Husqvarna 539990155

NUT, HEX, 3/8F

$4.99

$

In Stock, Qty 16

0

20

Husqvarna 539990365

PIN-COTTER, 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 539106888

BRAKE LEVER WLDMT

$

$

Not available

22

Husqvarna 539106969

BRAKE CROSS SHAFT

$33.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539106971

LINKAGE SHORT

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539105036

GRIP

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 539102843

WASHER, 7/16
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539977465

YOKE

$24.99

$

In Stock, Qty 11

0

27

Husqvarna 539101949

E-RING, 1/2

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990155

NUT, 3/8F

$4.99

$

In Stock, Qty 16

0

29

Husqvarna 539102797

FLANGE BEARING

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990365

COTTER PIN
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 539990517

WASHER 3/8, FLAT

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990118

LOCKWASHER, 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

35

Husqvarna 539106791

HCS 3/8C X 1, GD 8

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

37

Husqvarna 539990258

NUT, 1/2C

$4.99

$

In Stock, Qty 14

0

38

Husqvarna 539990254

LOCKWASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990622

HCS 1/2 X 1 1/4, SERR WASHER

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0
