iZ 4217 TSKAA (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) Wiring Assembly Parts Diagram

42" Zero-Turn Mower

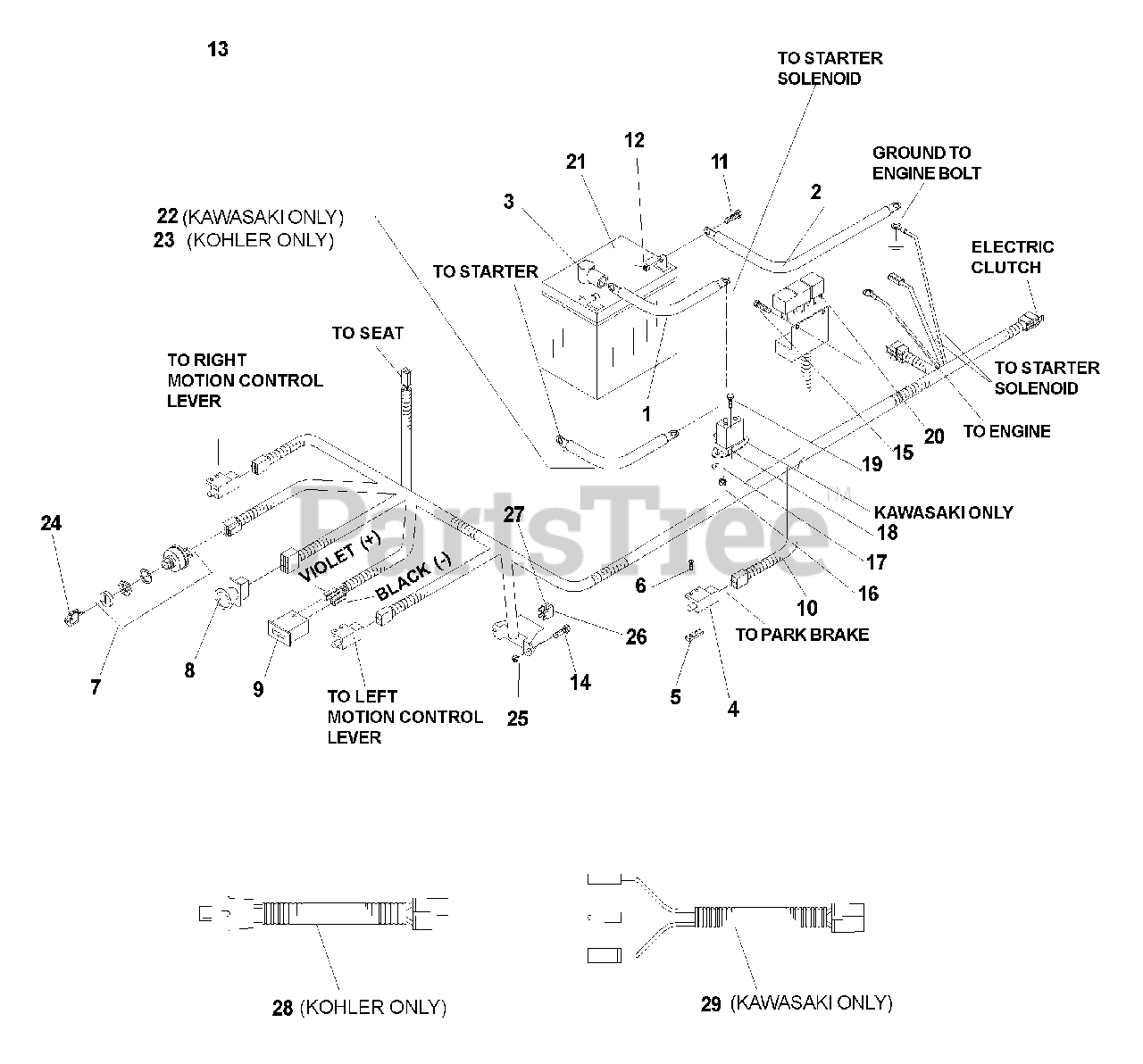

Wiring Assembly Parts Diagram

  • Title
1

Husqvarna 539103306

POSITIVE CABLE
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

2

Husqvarna 539102758

NEGATIVE CABLE

$

$

Not available

3

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 539101080

INTERLOCK SWITCH

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

6

Husqvarna 539976952

SCREW, #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

7

Husqvarna 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

8

Husqvarna 539101768

BLADE SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

9

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

10

Husqvarna 539110950

FRAME HARNESS

$

$

Not available

11

Husqvarna 539976934

HCS, 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539976977

NUT, #10-24, NYLOC

$

$

Not available

14

Husqvarna 539102617

SCREW, #10-24 X 7/8

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 539991034

SCREW, #10-24 X 5/8, WASH HD

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990372

NUT, , 1/4C, CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

17

Husqvarna 539990053

LOCKWASHER, 1/4, INTERNAL TOOTH

$3.99

$

In Stock, only 3 left!

0

18

Husqvarna 539101714

SOLENOID

Note: (KAWASAKI ONLY)

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990072

HCS, 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, Qty 8

0

21

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

22

Husqvarna 539104974

CABLE POSITIVE

Note: KAWASAKI ONLY

$

$

Not available

23

Husqvarna 539102757

CABLE POSITIVE

Note: KOHLER ONLY

$15.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539107544

KEY, PADDED
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

25

Husqvarna 539976977

NUT, #10-24, NYLOC

$

$

Not available

26

Husqvarna 539101771

FUSE, 7.5 AMP, 32 VOLT, ATO

$

$

Not available

27

Husqvarna 539102086

FUSE, 20 AMP, 32 VOLT, ATO

$

$

Not available

28

Husqvarna 539104416

PIGTAIL

Note: KOHLER ONLY

$42.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539104415

PIGTAIL

Note: KAWASAKI ONLY

$34.99

$

Usually ships in 3-10 days

0
