iZ 4217 TSKAA (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) Motion Control Assembly Parts Diagram

42" Zero-Turn Mower

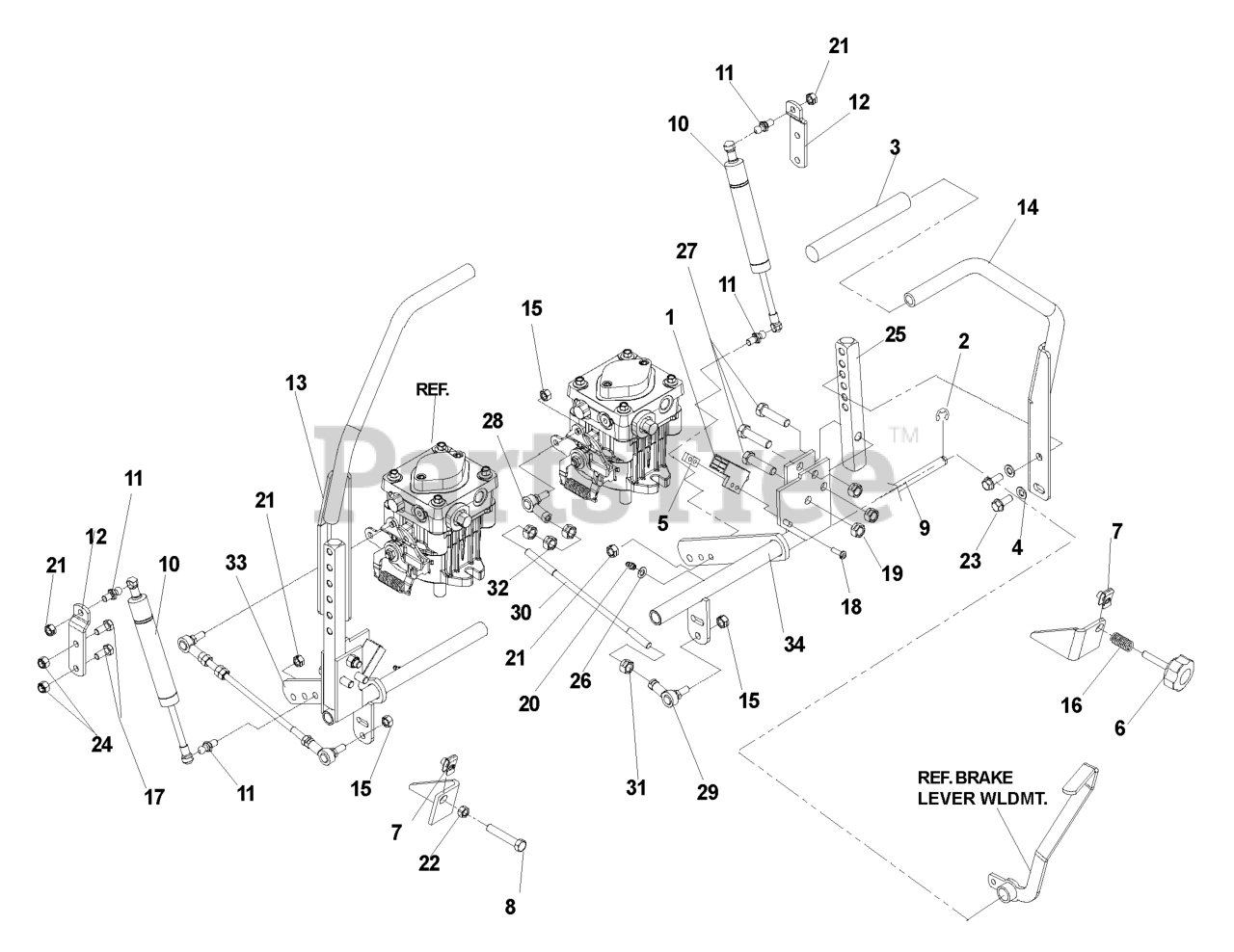

Motion Control Assembly Parts Diagram

  • Title
1

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101949

E-RING, 1/2

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102592

CUSHION, DRIVE LEVER

$

$

Not available

4

Husqvarna 539102593

WASHER, 3/8, SPRING, SPEC

$3.99

$

In Stock, only 4 left!

0

5

Husqvarna 539102678

NUT, #10-24

$15.99

$

In Stock, Qty 9

0

6

Husqvarna 539103003

ADJUSTMENT KNOB

$

$

Not available

7

Husqvarna 539104763

NUT, 5/16-18, U-TYPE, RETAINER

$6.49

$

In Stock, Qty 12

0

8

Husqvarna 539108394

HCS, 5/16-18 X 1 3/4, TPBLT, GR5

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539108659

CONTROL SHAFT

$30.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110606

DAMPENER
(Superseded to 539131932)

$87.99

$

Usually ships in 3-10 days

0

11

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539110811

DAMPENER ARM

$

$

Not available

13

Husqvarna 539110826

DRIVE LEVER, RIGHT

$60.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110827

DRIVE LEVER, LEFT

$60.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539110943

NUT, 5/16, NYLOC

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539111039

COMPRESSION SPRING

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976934

HCS, 5/16-18 X 3/4, GR5
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539976952

SCREW, #10-24 X 5/8, COMBO, SPEC
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

19

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976998

ZERK, STRAIGHT, 1/4-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 539990184

NUT, 5/16-18, CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990196

NUT, 5/16-18

$1.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990563

HCS, 3/8-16 X 1, GR5

$1.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539110638

ARM CONTROL SHAFT

$42.99

$

In Stock, only 1 left!

0

$0.99

$

In Stock, only 2 left!

0

27

Husqvarna 539990730

HCS, 3/8-16 X 1 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110603

ROD END, SPHERICAL, RIGHT

$40.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539110604

ROD END, SPHERICAL, LEFT

$24.99

$

In Stock, only 1 left!

0

30

$

$

Not available

31

Husqvarna 539991073

NUT, 5/16, JAM, LH

$3.99

$

Usually ships in 3-10 days

0

32

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539111030

DRIVE CONTROL, RIGHT

$242.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539111031

DRIVE CONTROL, LEFT

$218.99

$

Usually ships in 3-10 days

0
