iZ 4217 TSKAA (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) Deck Assembly 42" Parts Diagram

42" Zero-Turn Mower

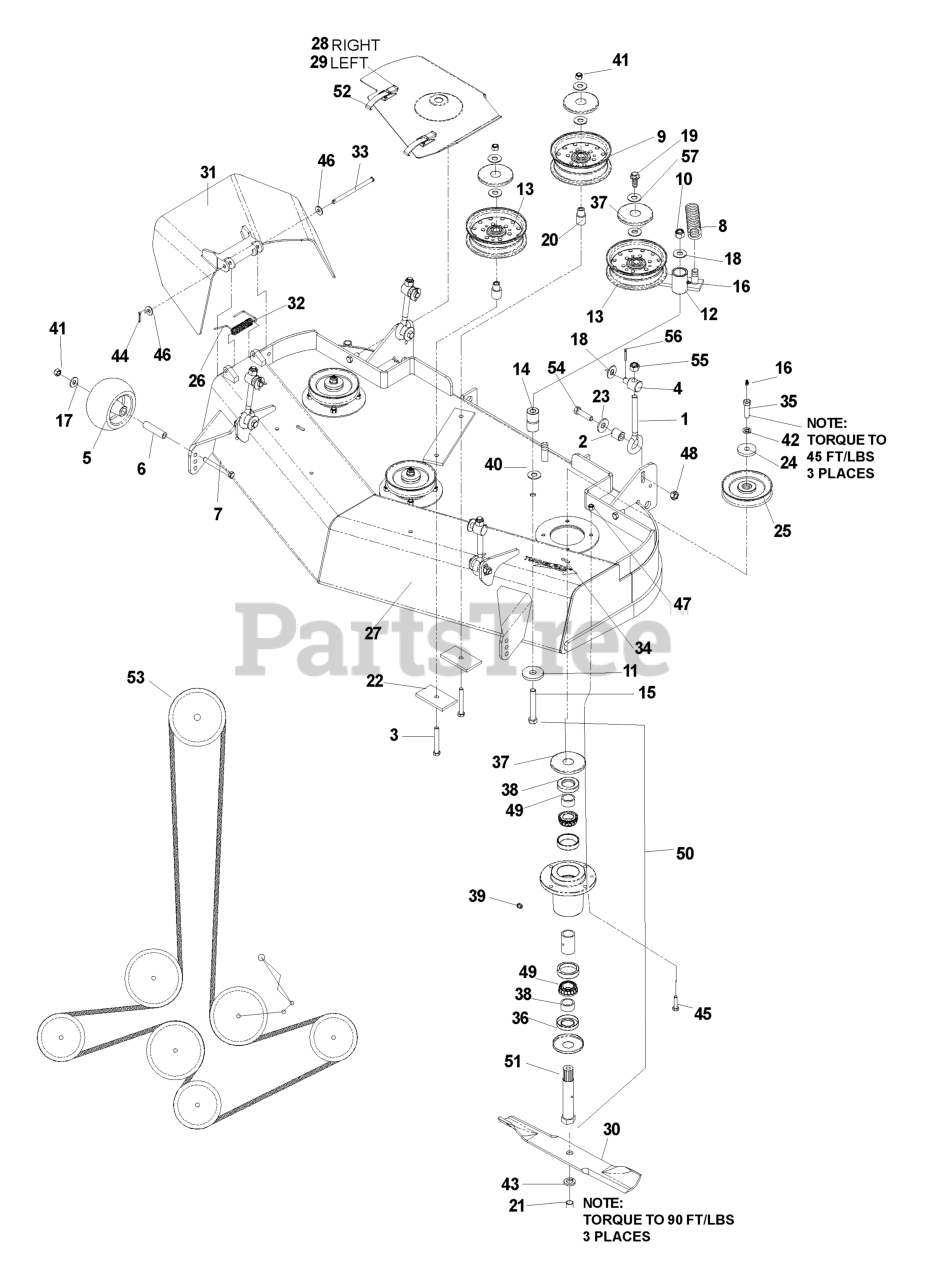

Deck Assembly 42" Parts Diagram

  • Title

1

Husqvarna 539119227

EYE BOLT

$18.99

$

In Stock, only 3 left!

0

2

Husqvarna 539114404

SPACER

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102612

HCS, 3/8-16 X 2 3/4, GR5

$5.99

$

In Stock, only 3 left!

0

4

Husqvarna 539114405

SWIVEL

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102643

ROLLER, ANTI SCALP

$

$

Not available

6

Husqvarna 539102698

BUSHING

$

$

Not available

7

Husqvarna 539102754

HCS, 3/8-16 X 3 1/2, GR8

$4.99

$

In Stock, Qty 13

0

8

Husqvarna 539103256

SPRING, EXTENSION

$12.99

$

In Stock, Qty 6

0

9

Husqvarna 539103258

PULLEY, IDLER

$53.99

$

In Stock, only 1 left!

0

10

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 539102243

WASHER, .65

$

$

Not available

12

Husqvarna 539103230

IDLER ARM

$

$

Not available

13

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 1 left!

0

14

Husqvarna 539103427

BUSHING, PIVOT

$9.49

$

In Stock, only 2 left!

0

15

Husqvarna 539103433

HCS, 1/2-13 X 3 1/4, GR5

$6.99

$

In Stock, only 4 left!

0

16

Husqvarna 539976998

ZERK, STRAIGHT, 1/4-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990550

WASHER, 9/16

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990582

HCS, 3/8-16 X 1,GR5

$

$

Not available

20

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

21

Husqvarna 539103299

HCS, 5/8-18 X 1 1/4, GR5

$

$

Not available

22

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

23

Husqvarna 539112484

SPRING WASHER, 1/2

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539106504

WASHER, .469

$

$

Not available

25

Husqvarna 539107276

PULLEY
(Superseded to 539112141)

$43.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 539111375

DECK W/DECALS

$

$

Not available

28

Husqvarna 539109663

BELT SHIELD, RIGHT

$42.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539109664

BELT SHIELD, LEFT

$42.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109681

BLADE, 14 5/8"

$

$

Not available

31

Husqvarna 539110731

DISCHARGE CHUTE

$56.99

$

In Stock, only 3 left!

0

32

Husqvarna 539110735

SPRING, TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 3 left!

0

33

Husqvarna 539110736

PIN-CLEVIS, 5/16 DIA. X 5.19

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539111560

DECAL, TUNNELRAM

$

$

Not available

35

Husqvarna 539112120

HCS, 7/16-20 X 1 1/2, GR8, SPEC

$30.99

$

In Stock, only 1 left!

0

36

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

37

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

38

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

39

Husqvarna 539977326

PLUG, VENTED

$13.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539113104

WASHER, 1/2

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

43

Husqvarna 539990333

LOCKWASHER, 5/8

$1.99

$

In Stock, Qty 6

0

44

Husqvarna 539990365

PIN COTTER, 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

45

Husqvarna 539990627

HCS, 5/16-18 X 1 1/4, GR5

$4.99

$

In Stock, only 1 left!

0

46

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990839

NUT, 7/16-14, CENTERLOCK, GR A

$3.99

$

In Stock, only 3 left!

0

49

Husqvarna 539108758

TOP & BOTTOM SPACER

$

$

Not available

50

Husqvarna 539108773

SPINDLE ASSEMBLY
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

51

Husqvarna 539112121

SPINDLE
(Superseded to 539112931)

$54.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539110832

DECK BELT
(Superseded to 510201101)

$

$

Not available

54

Husqvarna 539108073

HCS, 7/16-14 X 1 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 539109246

PIN, COTTER, 1/8 X 1

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539111897

WASHER, 3/8, SPEC

$

$

Not available

Husqvarna 539111370

CONFINEMENT PLATE
(Superseded to 539110135)

Note: (NOT SHOWN)

$

$

Not available
