iZ 4217 T (968999254) - Husqvarna 42" Zero-Turn Mower (2005-08) ENGINE 3 Parts Diagram

42" Zero-Turn Mower

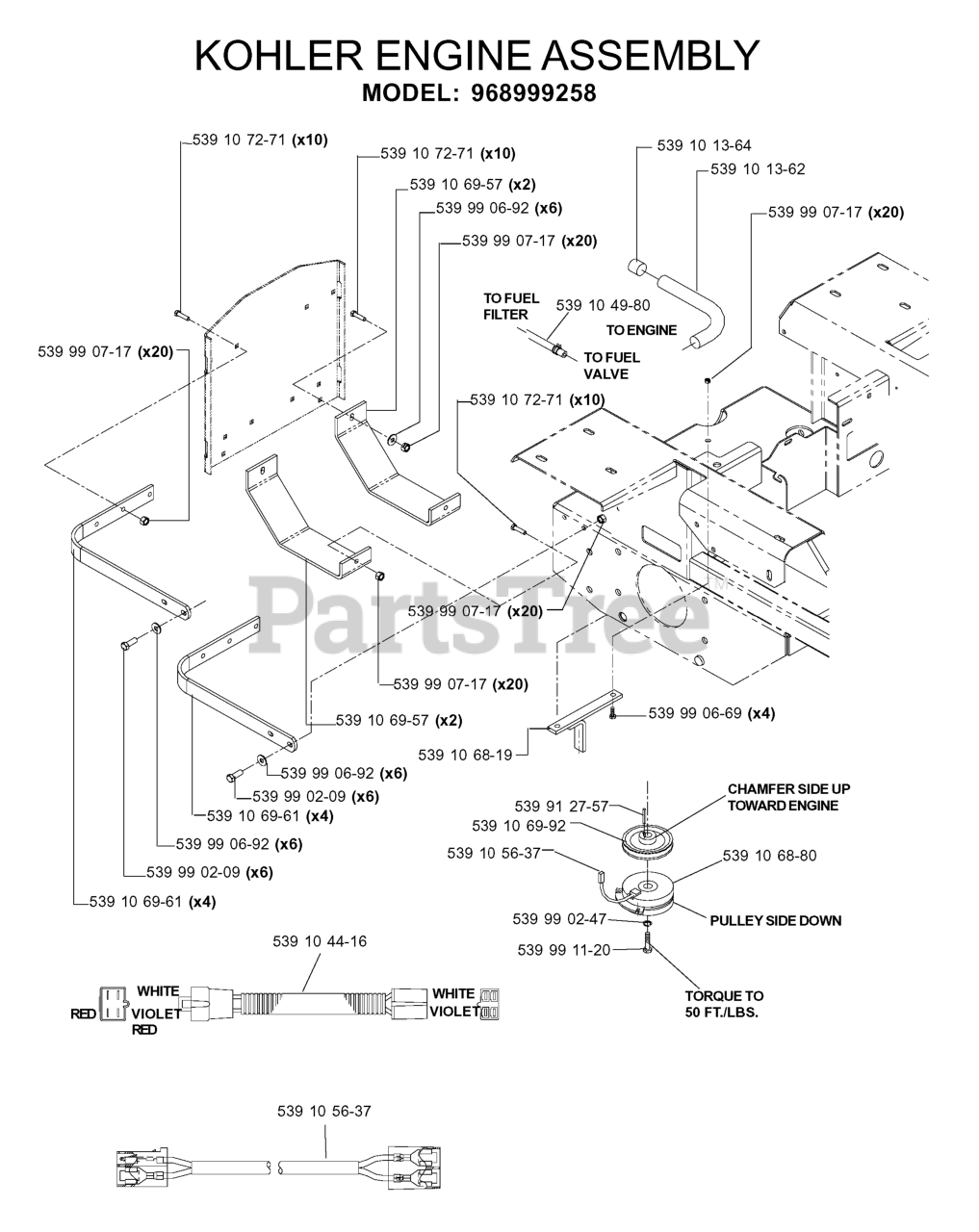

ENGINE 3 Parts Diagram

  • Title

539 10 49-80

Husqvarna 539104980

FUEL LINE 16"

Note: TO FUEL FILTER TO FUEL VALVE

$

$

Not available

539 99 11-20

Husqvarna 539991120

BOLT 7/16F X 2 1/2

Note: TORQUE TO 50 FT./LBS.

$6.99

$

In Stock, Qty 8

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 72-71

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

539 10 68-80

Husqvarna 539106880

CLUTCH-200 FT LB(RPLS 5218-102

Note: PULLEY SIDE DOWN

$

$

Not available

539 91 27-57

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

539 10 68-19

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

539 10 56-37

Husqvarna 539105637

CLUTCH HARNESS

$26.99

$

In Stock, Qty 6

0

539 10 69-61

Husqvarna 539106961

ENGINE SHROUD BRKT

$21.99

$

In Stock, only 1 left!

0

539 10 69-57

Husqvarna 539106957

SKID PLATE

$21.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539 99 02-47

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539 10 69-92

Husqvarna 539106992

PULLEY

$

$

Not available

539 99 06-69

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

539 10 13-64

Husqvarna 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 10 44-16

Husqvarna 539104416

KOH PIGTAIL

$42.99

$

Usually ships in 3-10 days

0

539 10 13-62

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0
