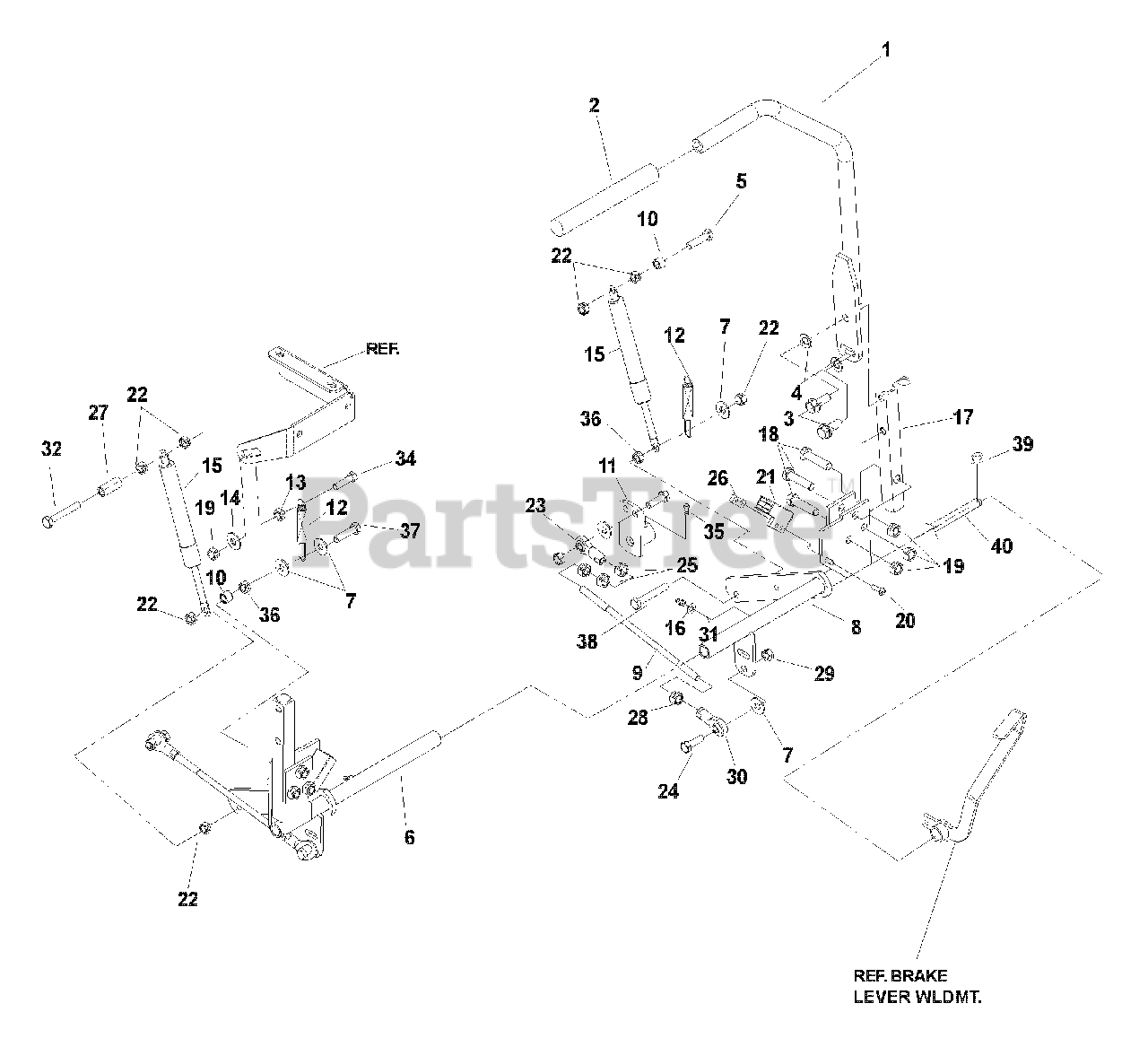

iZ 4217 SKAA (968999229) - Husqvarna 42" Zero-Turn Mower (SN: 033600000 & Above) (2004-09) Motion Control Assembly Parts Diagram

42" Zero-Turn Mower

Motion Control Assembly Parts Diagram

  • Title

1

Husqvarna 539104190

CONTROL LEVER WLDMT

$

$

Not available

2

Husqvarna 539102592

GRIP

$

$

Not available

3

Husqvarna 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102593

3/8 DISC SPRING WASHER

$3.99

$

In Stock, only 4 left!

0

5

Husqvarna 539976935

HCS 5/16C X 1 1/2

$

$

Not available

6

Husqvarna 539106923

CONTROL WELDMENT, RIGHT

$157.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539106924

CONTROL WELDMENT, LEFT

$145.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539103264

PUMP CONTROL LINK

$

$

Not available

10

Husqvarna 539102827

SPACER

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 539104382

CONTROL ARM, PUMP

$

$

Not available

12

Husqvarna 539103297

SPRING

$8.99

$

In Stock, only 2 left!

0

13

Husqvarna 539990613

3/8C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

16

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539102809

CONTROL ARM

$30.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990730

HCS 3/8C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976952

SCREW 310-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

21

Husqvarna 539101080

SWITCH

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990184

NUT, 5/16C, CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102590

BALL JOINT, RIGHT

$27.99

$

In Stock, only 1 left!

0

24

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 539990223

NUT, 5/16-24

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

27

Husqvarna 539104995

SPACER

$14.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539991073

NUT, 5/16F, LEFT HAND

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539102591

BALL JOINT, LEFT

$24.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

32

Husqvarna 539976937

HCS 5/16C X 2

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101341

HCS 3/8C X 3 (NOT SHOWN)

$5.99

$

In Stock, Qty 12

0

34

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539105079

SCREW, 5/16C X 5/8, SET

$

$

Not available

36

Husqvarna 539990585

NUT 5/16C, WHIZ

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539991055

BOLT, 5/16C X 2 1/4, TAP

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539100469

BOLT, 5/16C X 1 1/4, TAP
(Superseded to 539990627)

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 539101949

E-RING, 1/2

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539108659

CONTROL SHAFT

$30.99

$

Usually ships in 3-10 days

0
