iZ 4217 (968999703) - Husqvarna 42" Zero-Turn Mower (2008-12) Engine Plate Parts Diagram

42" Zero-Turn Mower

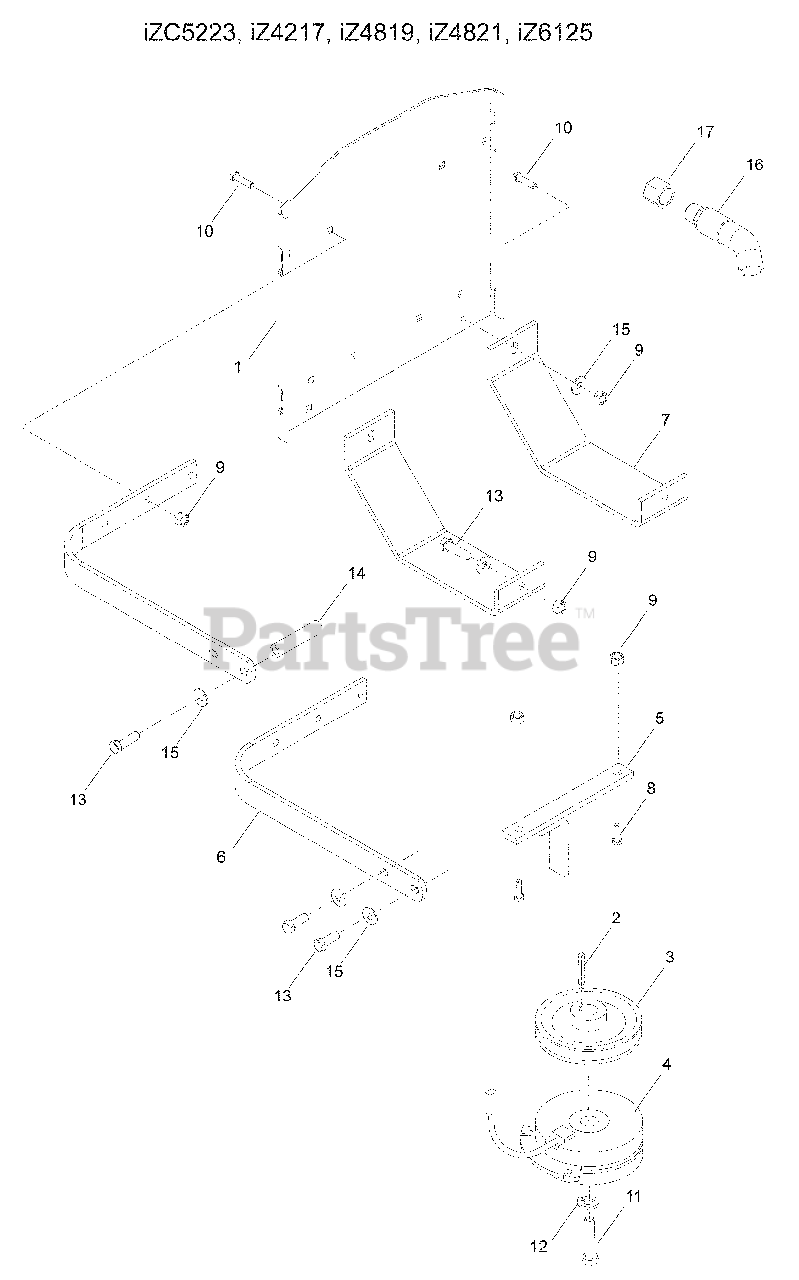

Engine Plate Parts Diagram

  • Title

1

Husqvarna 539106959

GUARD, REAR

$48.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539912757

KEY, ¼ SQ x 1¼

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106992

PULLEY

$

$

Not available

Husqvarna 539112774

PULLEY, iZ6125

$

$

Not available

4

Husqvarna 539105406

CLUTCH, iZ6125

$

$

Not available

Husqvarna 539105804

CLUTCH, iZ4217, iZ4819

$

$

Not available

Husqvarna 539106880

CLUTCH, iZ4821, iZC5221, iZC5223

$

$

Not available

5

539 106819

TIE DOWN, CLUTCH

$

$

Not available

6

539 106961

STRAP

$

$

Not available

7

539 106957

SKID PLATE

$

$

Not available

8

539 990669

HCS 5/16-18 x 1¾

$

$

Not available

9

539 990717

NUT 5/16-18 HEX NYLOC

$

$

Not available

10

539 107271

RHSNB 5/16-18 x 1

$

$

Not available

11

539 991120

HCS 7/16-20 x 2½

$

$

Not available

12

539 990247

WASHER 7/16 SLW

$

$

Not available

13

539 990209

HCS 5/16-18 x 1 iZ6125, iZC5223

$

$

Not available

539 102335

HCS 5/16-18 x 4 iZ4217, iZ4819, iZ4821, iZC5221

$

$

Not available

14

539 106962

SPACER iZ4217, iZ4819, iZ4821, iZC5221

$

$

Not available

15

539 990692

WASHER 5/16 STD FLT

$

$

Not available

16

539 101362

HOSE, DRAIN iZC5221, iZC5223, iZ4821, iZ6125

$

$

Not available

17

539 101364

PLUG, OIL iZC5221, iZC5223, iZ4821, iZ6125

$

$

Not available

Husqvarna 539105637

HARNESS, CLUTCH iZ4217, iZ4819

Note: NOT SHOWN

$26.99

$

In Stock, Qty 6

0

Husqvarna 539104415

PIGTAIL, KAWASAKI iZ4217, iZ4819, iZ4821, iZC5221

Note: NOT SHOWN

$34.99

$

Usually ships in 3-10 days

0

Husqvarna 539104416

PIGTAIL, KOHLER iZ6125, iZC5223

Note: NOT SHOWN

$42.99

$

Usually ships in 3-10 days

0

Husqvarna 539108199

GASKET, EXHAUST iZC5221

Note: NOT SHOWN

$

$

Not available
