iZ 4217 (968999703) - Husqvarna 42" Zero-Turn Mower (2008-12) Chassis / Frame Parts Diagram

42" Zero-Turn Mower

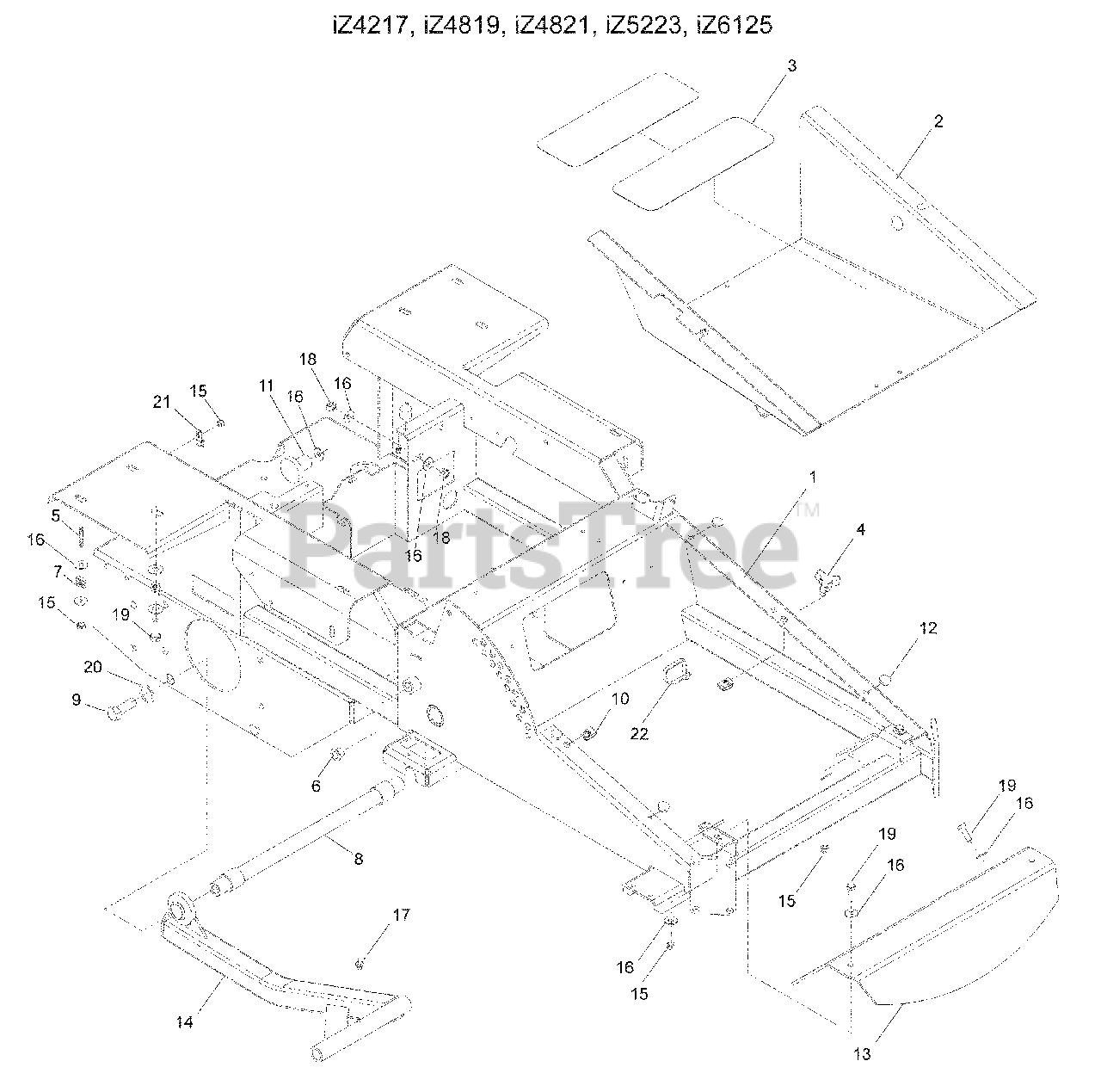

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539111098

FRAME w/DECALS

$897.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539111573

FOOT PLATE w/DECALS

$

$

Not available

3

Husqvarna 539977778

PAD, ABRASIVE

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539104411

KNOB w/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102502

TANK-STUD FUEL

$10.99

$

In Stock, only 4 left!

0

6

Husqvarna 539102519

BUSHING

$

$

Not available

7

Husqvarna 539102845

SPRING, FUEL TANK

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 539104197

STRUT MOUNT

$

$

Not available

9

Husqvarna 539104199

HCS 5/8-11 x 2

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104763

NUT 5/16-18, U-TYPE

$6.49

$

In Stock, Qty 12

0

11

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

13

Husqvarna 539106941

FOOT REST

$70.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110806

STRUT, RT

$424.99

$

Usually ships in 3-10 days

0

Husqvarna 539110807

STRUT, LT

$424.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539976998

ZERK, STRAIGHT ¼-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990333

WASHER 5/8 SPLIT LOCK

$1.99

$

In Stock, Qty 6

0

21

Husqvarna 539109867

CLAMP, DOUBLE TUBE

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0
