iZ 25 (968999771) - Husqvarna Zero-Turn Mower (2008-01) Mower Lift / Deck Lift Parts Diagram

Zero-Turn Mower

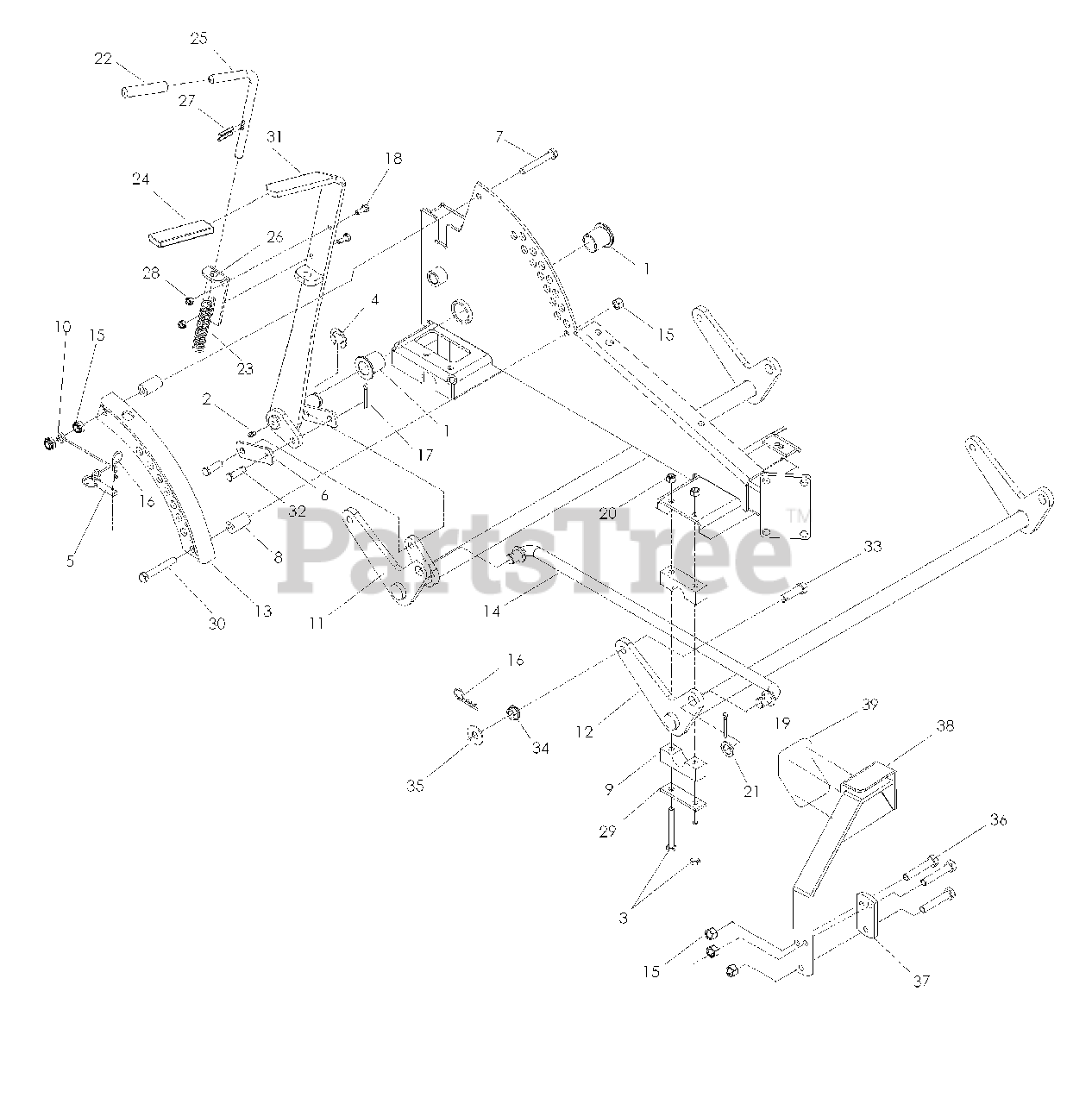

Mower Lift / Deck Lift Parts Diagram

  • Title

1

Husqvarna 539101232

BUSHING

$13.99

$

In Stock, Qty 7

0

2

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101721

HCS, 5/16 -18 x 2 3/4

$4.99

$

In Stock, Qty 7

0

4

Husqvarna 539101802

RING-E, 7/8

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102526

PIN LIFT, 1/2 x 2, W/RINGS

$21.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102565

LINKAGE

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102612

HCS, 3/8 -16 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna 539104530

SPACER

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539104808

BLOCK-PILLOW

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

11

Husqvarna 539109955

REAR LIFT SHAFT

$78.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109956

FRONT LIFT SHAFT

$72.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110803

ADJUSTMENT PLATE

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110808

CROSS LINK

$27.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539976989

PIN HAIR .120 x 2 1/2

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990365

PIN COTTER
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 539990580

HCS 1/4 -20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990654

PIN COTTER 5/32 x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539991043

BUSHING

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539101050

GRIP, VINYL

$3.99

$

In Stock, only 4 left!

0

23

Husqvarna 539101058

SPRING, COMPRESSION

$4.99

$

In Stock, only 2 left!

0

24

Husqvarna 539102515

GRIP, LIFT LEVER

$

$

Not available

25

Husqvarna 539103533

PIN 1/2 x 6.69 "L"

$21.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539103534

PIN MT

$27.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539106532

PIN GROOVED, 3/16 x 1 1/4

$3.99

$

In Stock, Qty 5

0

28

Husqvarna 539990761

NUT 1/4 -20, CENTERLOCK

$4.99

$

In Stock, only 4 left!

0

29

Husqvarna 539104807

REINFORCED BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

30

Husqvarna 539990637

HCS 3/8 -16 x 2 1/2

$1.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539109961

LIFT LEVER

$113.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539977703

PIN CLEVIS, 3/8 x 1 1/8

$5.99

$

In Stock, Qty 11

0

33

Husqvarna 539112520

HCS 7/16 -14 x 1 1/2

$

$

Not available

34

Husqvarna 539102582

NUT 7/16 -14 WHZLCK

$

$

Not available

35

Husqvarna 539104864

WASHER 7/16 FLAT
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990655

HCS 3/8 -16 x 1 1/2

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 539105184

PLATE, TIGHTENING

$46.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539105181

LIFT PEDAL

$

$

Not available

39

Husqvarna 539105187

PAD, ANTI-SKID

$3.49

$

In Stock, only 2 left!

0
