iZ 21 C (968999306) - Husqvarna Zero-Turn Mower (2009-09) ENGINE Parts Diagram

Zero-Turn Mower

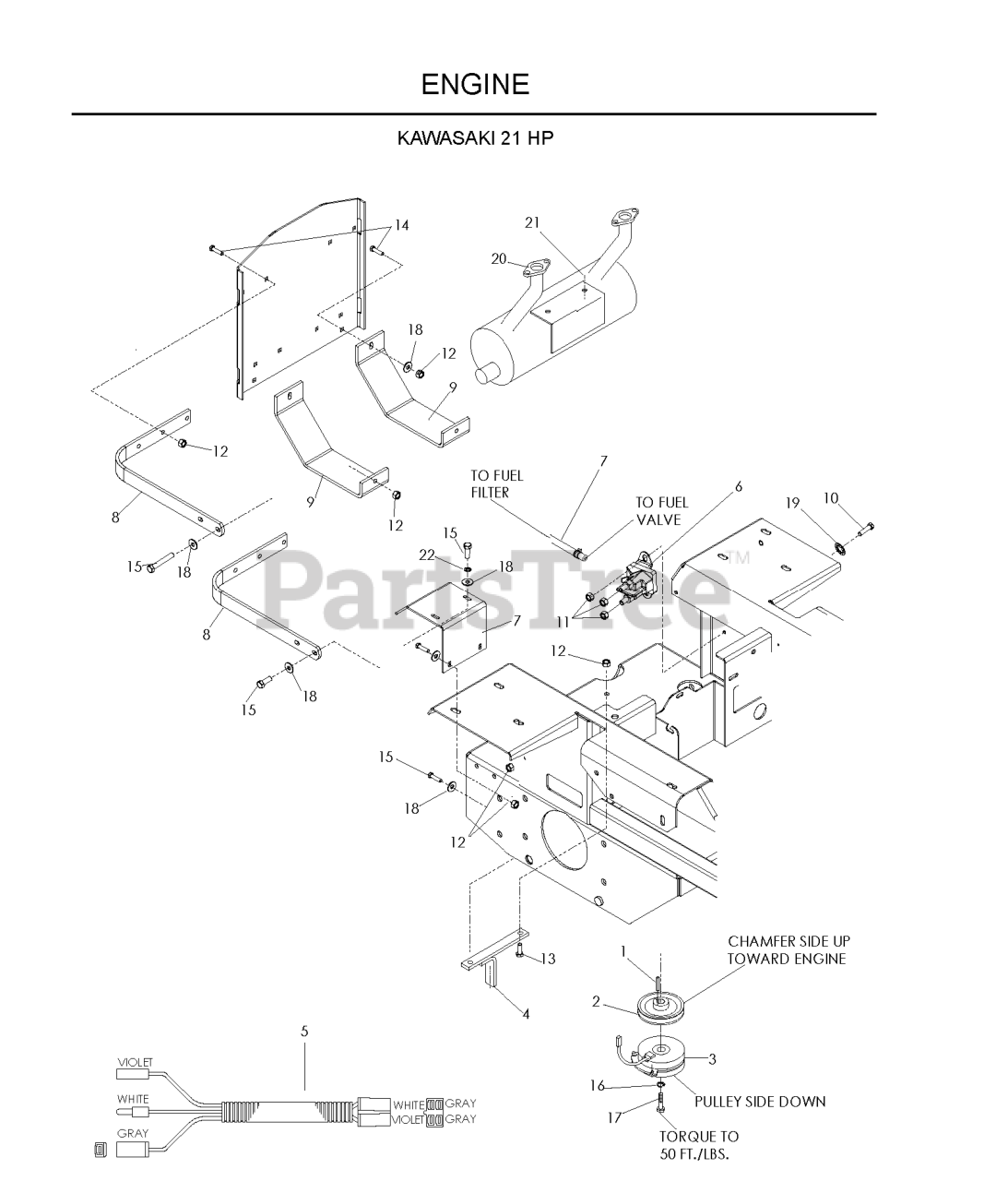

ENGINE Parts Diagram

  • Title

2

Husqvarna 539106992

PULLEY

$

$

Not available

20

Husqvarna 539108199

EXHAUST GASKET - KAW

$

$

Not available

10

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

6

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539106957

SKID PLATE

$21.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106880

CLUTCH-200 FT LB(RPLS 5218-102

$

$

Not available

16

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

5

Husqvarna 539104415

KAW PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

8

Husqvarna 539106961

ENGINE SHROUD BRKT

$21.99

$

In Stock, only 1 left!

0

4

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

21

Husqvarna 539105897

MUFFLER KAWASAKI GEN II

$

$

Not available

13

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 539111093

MUFFLER BRACKET BLACK

$36.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

11

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0
