iZ 21 C (968999306) - Husqvarna Zero-Turn Mower (2009-09) 48"/122CM CUTTING DECK Parts Diagram

Zero-Turn Mower

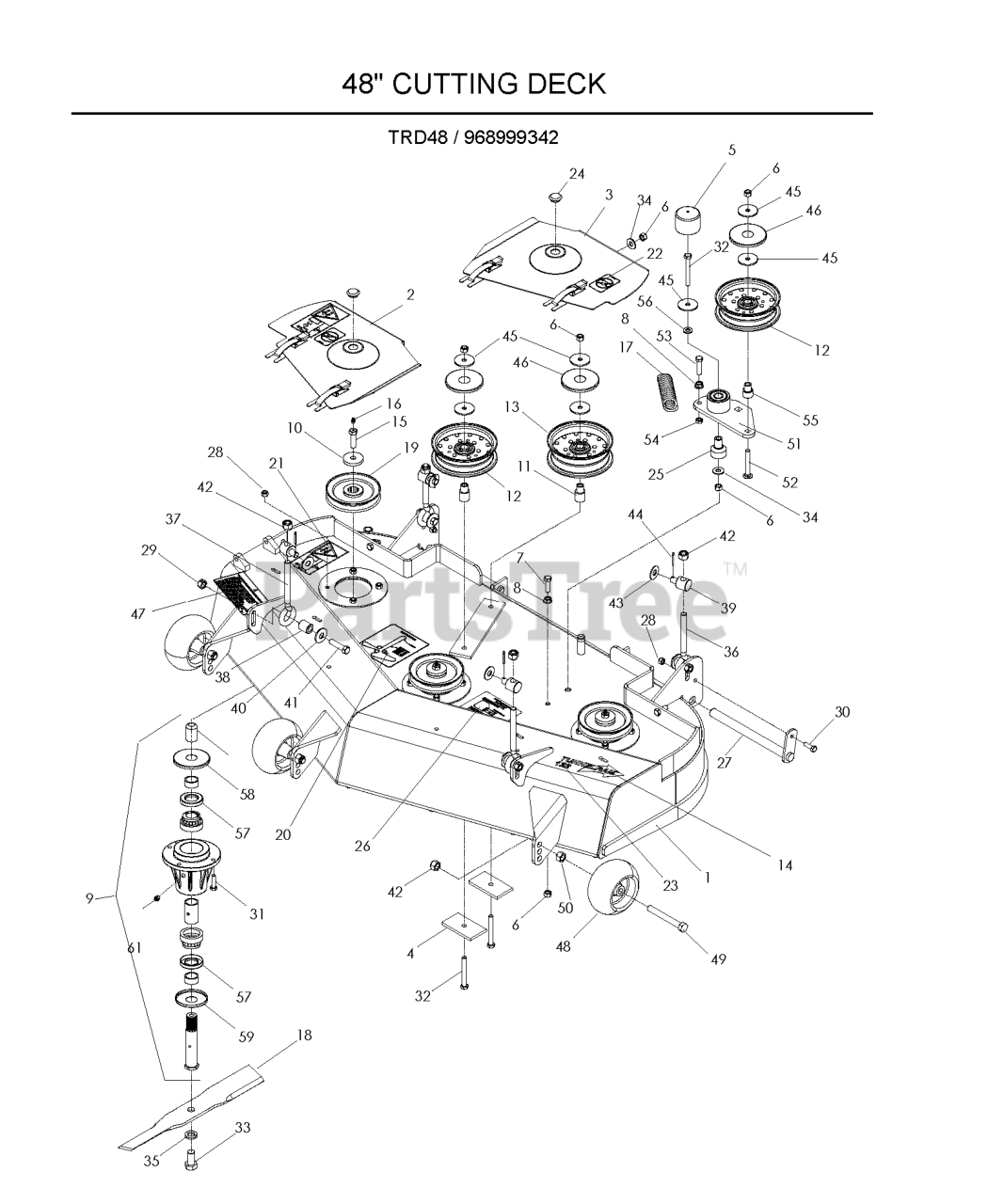

48"/122CM CUTTING DECK Parts Diagram

  • Title

35

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

37

Husqvarna 539114698

EYEBOLT, 1/2-13 X 5.88

$27.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

30

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

15

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

In Stock, only 1 left!

0

61

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539112484

SPRING WASHER - .50

$9.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

10

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

34

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

19

Husqvarna 539112141

PULLEY 42-48

$43.99

$

In Stock, only 1 left!

0

12

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

45

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

48

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

54

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

41

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

20

Husqvarna 539110967

DECAL, BELT ROUTING

$

$

Not available

8

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

16

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 539113358

BELT SHIELD ASSEMBLY, 48" L.H.

$133.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

23

Husqvarna 539112535

DECAL, 122

$

$

Not available

36

Husqvarna 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

38

Husqvarna 539114404

SPACER

$7.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 539111376

DECK W/DECALS 48" HUS

$

$

Not available

49

Husqvarna 539118862

HHB, 1/2-13X4
(Superseded to 539108366)

$6.99

$

In Stock, Qty 17

0

55

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

46

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

53

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

24

Husqvarna 539108382

PLUG, BUTTON HOLE

$0.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

9

Husqvarna 539112934

HOUSING ASM, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

39

Husqvarna 539114405

SWIVEL

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539111812

DECAL, TUNNEL RAM 6"

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

52

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539109246

PIN COTTER 1/8 X 1 ZD

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

43

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

7

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 539113359

BELT SHIELD ASSEMBLY, 48" R.H.

$133.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112612

BLADE, 16-1/4"

$

$

Not available

4

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

58

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

47

Husqvarna 539130245

DECAL, DISCHARGE, MULTILINGUAL

$2.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

17

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 5

0

6

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539105232

DECAL, ANTI SCALP

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

25

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 1 left!

0

42

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0
