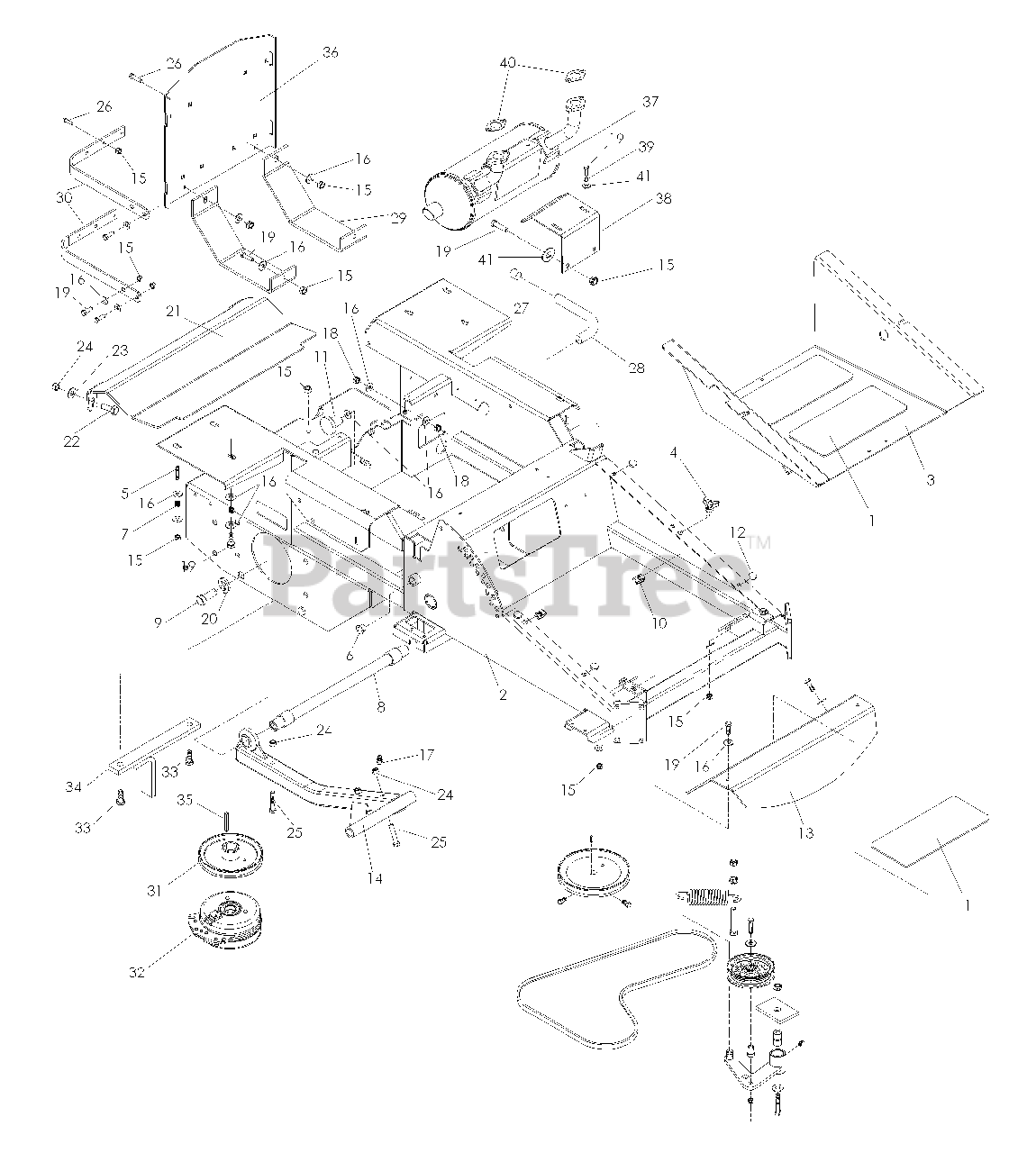

iZ 21 (968999774) - Husqvarna Zero-Turn Mower (2008-01) Chassis, Engine & Pulleys Parts Diagram

Zero-Turn Mower

Chassis, Engine & Pulleys Parts Diagram

  • Title

1

Husqvarna 539977778

PAD-ABRASIVE

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539111098

FRAME W/DECALS

$897.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111573

FOOT PLATE W/DECALS

$

$

Not available

4

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102502

TANK-STUD FUEL

$10.99

$

In Stock, only 4 left!

0

6

Husqvarna 539102519

BUSHING

$

$

Not available

7

Husqvarna 539102845

SPRING, FUEL TANK

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 539104197

STRUT MOUNT

$

$

Not available

9

Husqvarna 539104199

HCS, 5/8-11 x 2

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104763

NUT, 5/16-18, U-TYPE

$6.49

$

In Stock, Qty 12

0

11

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0

13

Husqvarna 539106941

FOOT REST

$70.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110806

STRUT, RIGHT

$424.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110807

STRUT, LEFT

$424.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539976998

ZERK, STRAIGHT 1/4-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539990184

NUT, 5/16-18, CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990209

HCS, 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990333

LOCKWASHER, 5/8

$1.99

$

In Stock, Qty 6

0

21

Husqvarna 539112953

REAR GUARD

$28.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990134

HCS, 3/8 -16 X 3/4

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539990588

HCS, 3/8 -16 x 2

$4.99

$

In Stock, Qty 10

0

26

Husqvarna 539107271

RHSNB, 5/16 -18 x 1
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

27

Husqvarna 539101364

PLUG-OIL

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539101362

HOSE-DRAIN

$47.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539106957

SKID PLATE

$21.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539106961

STRAP

$21.99

$

In Stock, only 1 left!

0

31

Husqvarna 539112774

PULLEY

$

$

Not available

32

Husqvarna 539105406

CLUTCH MODEL 968999771

$

$

Not available

32

Husqvarna 539106880

CLUTCH MODEL 96899974

$

$

Not available

33

Husqvarna 539990669

HCS, 5/16 -18 x 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

34

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

35

Husqvarna 539912757

KEY, 1/4 SQ x 1 1/4

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539105897

MUFFLER MODEL 96899974

$

$

Not available

38

Husqvarna 539111093

BRACKET MUFFLER MODEL 96899974

$36.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990187

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

40

Husqvarna 539108199

GASKET

$

$

Not available

41

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539104415

PIGTAIL

Note: (KAWASAKI) NOT SHOWN

$34.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539104416

PIGTAIL

Note: (KOHLER) NOT SHOWN

$42.99

$

Usually ships in 3-10 days

0
