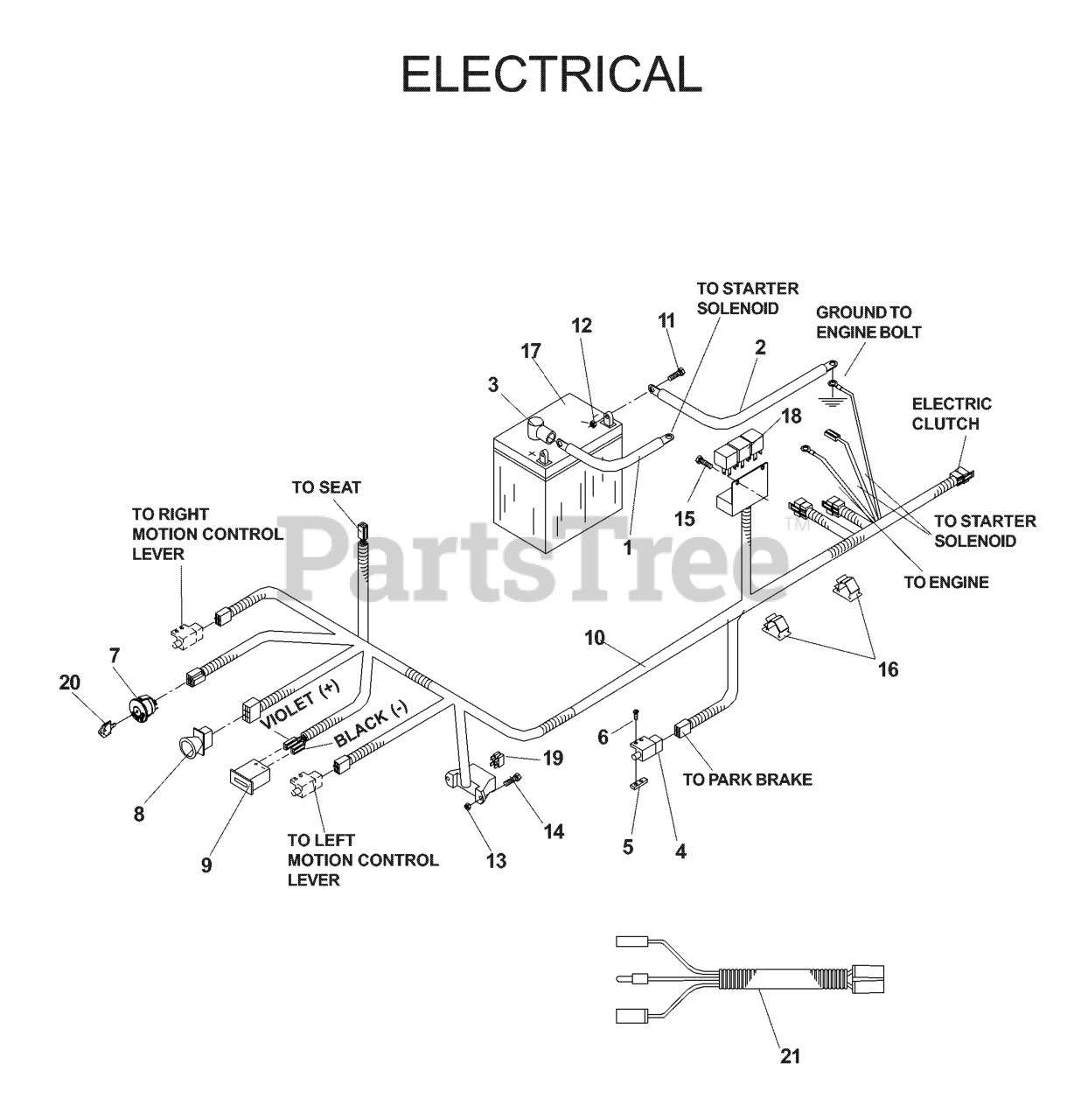

iZ 21 (968999306) - Husqvarna Zero-Turn Mower (2007-04) ELECTRICAL 2 Parts Diagram

Zero-Turn Mower

ELECTRICAL 2 Parts Diagram

  • Title

21

Husqvarna 539104415

KAW PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 9

0

15

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, Qty 5

0

6

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

5

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

3

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

17

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

7

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

9

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

18

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

-

Husqvarna 539102115

TIE-PLASTIC 15X120#

$

$

Not available

19

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

14

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 539110950

FRAME HARNESS

$

$

Not available

2

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

16

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

1

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

11

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0
