iZ 21 (968999306) - Husqvarna Zero-Turn Mower (2007-04) CHASSIS / FRAME Parts Diagram

Zero-Turn Mower

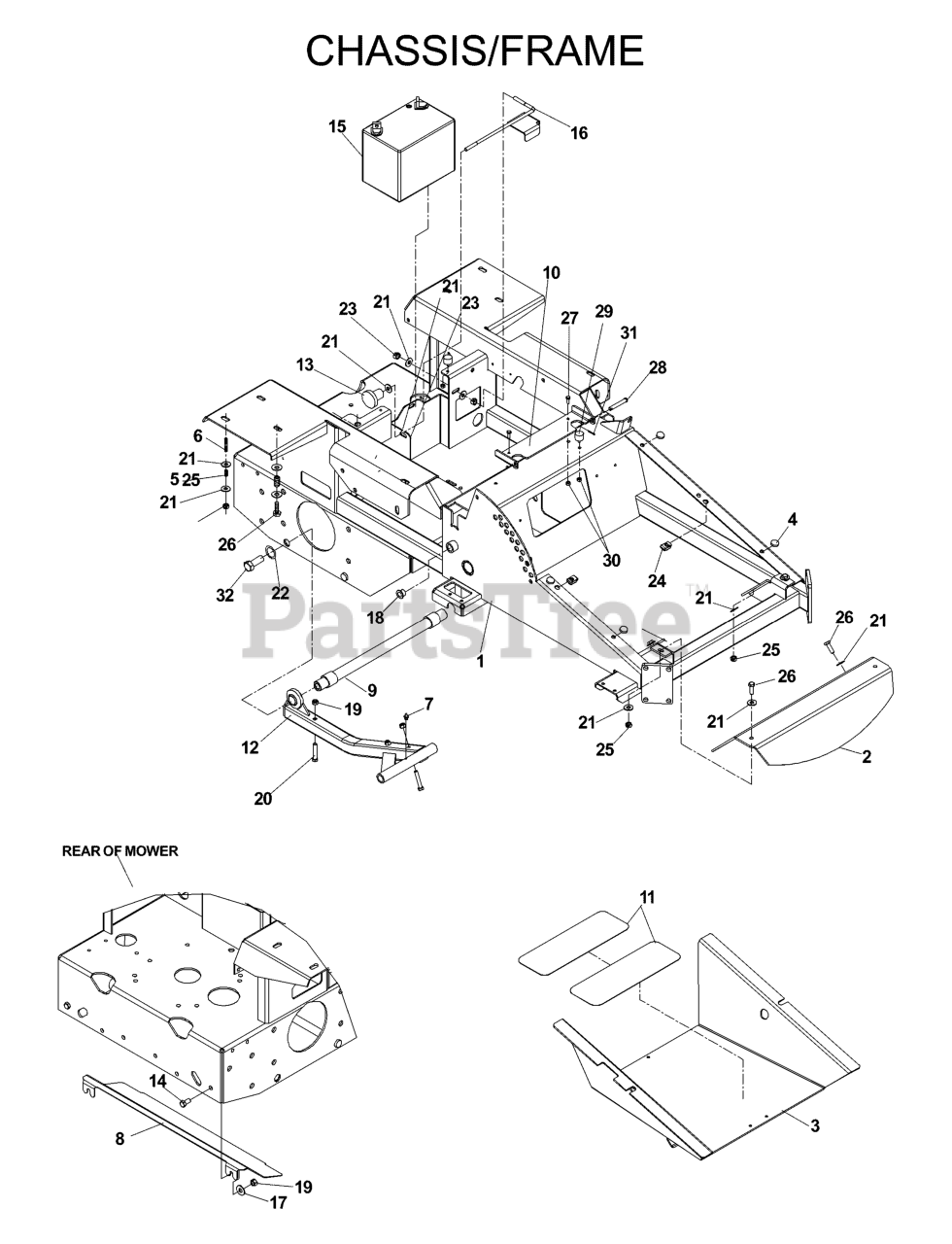

CHASSIS / FRAME Parts Diagram

  • Title
11

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539111573

IZ FOOTPLATE W/DECAL

$

$

Not available

24

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

14

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

23

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539112647

STRUT, RIGHT

$94.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539105224

SEAT BRKT W/DECAL

$30.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539110819

CLEVIS PIN 3/8

$3.99

$

Usually ships in 3-10 days

0

-

Husqvarna 539112646

STRUT, LEFT

$94.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

7

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

8

Husqvarna 539112953

REAR GUARD

$28.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539110198

CHASSIS W/DECALS

$849.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

22

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

32

Husqvarna 539104199

HCS 5/8C X 2 GR.5

$3.99

$

Usually ships in 3-10 days

0

18

$

$

Not available

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 539106941

FOOTREST ORANGE

$70.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106899

BATTERY HOLD DOWN

$68.99

$

In Stock, only 1 left!

0

17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104197

STRUT MOUNT WELDMENT

$

$

Not available

27

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0
