iZ 21 (968999306) - Husqvarna Zero-Turn Mower (2007-04) 48"/122CM CUTTING DECK Parts Diagram

Zero-Turn Mower

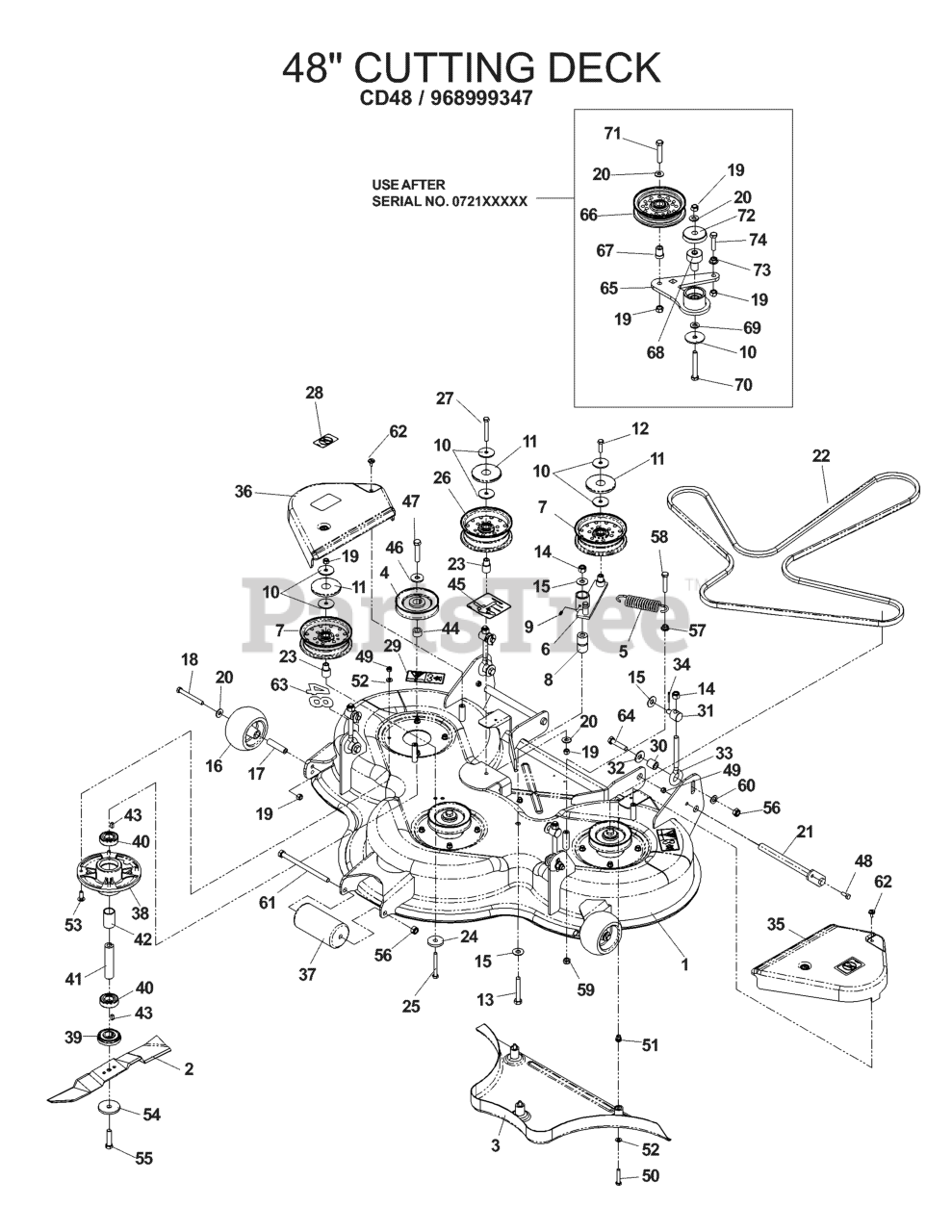

48"/122CM CUTTING DECK Parts Diagram

  • Title

10

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

31

Husqvarna 539114405

SWIVEL

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

13

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$5.99

$

In Stock, Qty 10

0

38

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

49

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

41

Husqvarna 535428702

AXLE

$56.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539114404

SPACER

$7.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539109246

PIN COTTER 1/8 X 1 ZD

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 506792302

WASHER

$14.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

40

Husqvarna 738220519

BALL BEARING

$50.99

$

In Stock, only 2 left!

0

73

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

25

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 10

0

24

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

74

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

65

Husqvarna 539130392

ARM, IDLER - W/BEARINGS

$48.99

$

Usually ships in 3-10 days

0

47

Husqvarna 725254471

$4.49

$

Usually ships in 3-10 days

0

44

Husqvarna 539112609

KEY RETAINER

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

19

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

67

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

2

Husqvarna 535429410

BLADE

$28.99

$

In Stock, only 3 left!

0

42

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

52

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

71

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

45

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 539112484

SPRING WASHER - .50

$9.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

28

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

59

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

61

Husqvarna 544221001

$

$

Currently unavailable

55

Husqvarna 725254251

Screw

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 725250271

SCREW

$1.99

$

Usually ships in 3-10 days

0

66

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

37

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

6

Husqvarna 539103230

IDLER ARM

$

$

Not available

11

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

20

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

43

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 535429201

$

$

Currently unavailable

21

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

53

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

63

Husqvarna 544245303

LABEL

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539112505

PULLEY, 48

$51.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539112509

BELT SHIELD RT

$34.99

$

Usually ships in 3-10 days

0

39

Husqvarna 535504201

$

$

Currently unavailable

26

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539105744

DECAL, BELT DRIVE

$6.99

$

In Stock, only 2 left!

0

57

Husqvarna 539112963

$

$

Currently unavailable

22

Husqvarna 539112528

DECK BELT, 48 CMB

$109.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

69

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 732252201

Nut

$1.99

$

In Stock, only 2 left!

0

48

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

62

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 6

0

5

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

3

Husqvarna 535428301

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 539102698

BUSHING

$

$

Not available

50

Husqvarna 725246071

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

70

Husqvarna 539106492

HEX SCREW 3/8-20 X 2.75

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539113345

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 539112508

BELT SHIELD LT

$24.99

$

In Stock, only 1 left!

0

72

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

27

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0
