iZ 21 (968999306) - Husqvarna Zero-Turn Mower (2006-03) HYDRAULIC PUMP - MOTOR Parts Diagram

Zero-Turn Mower

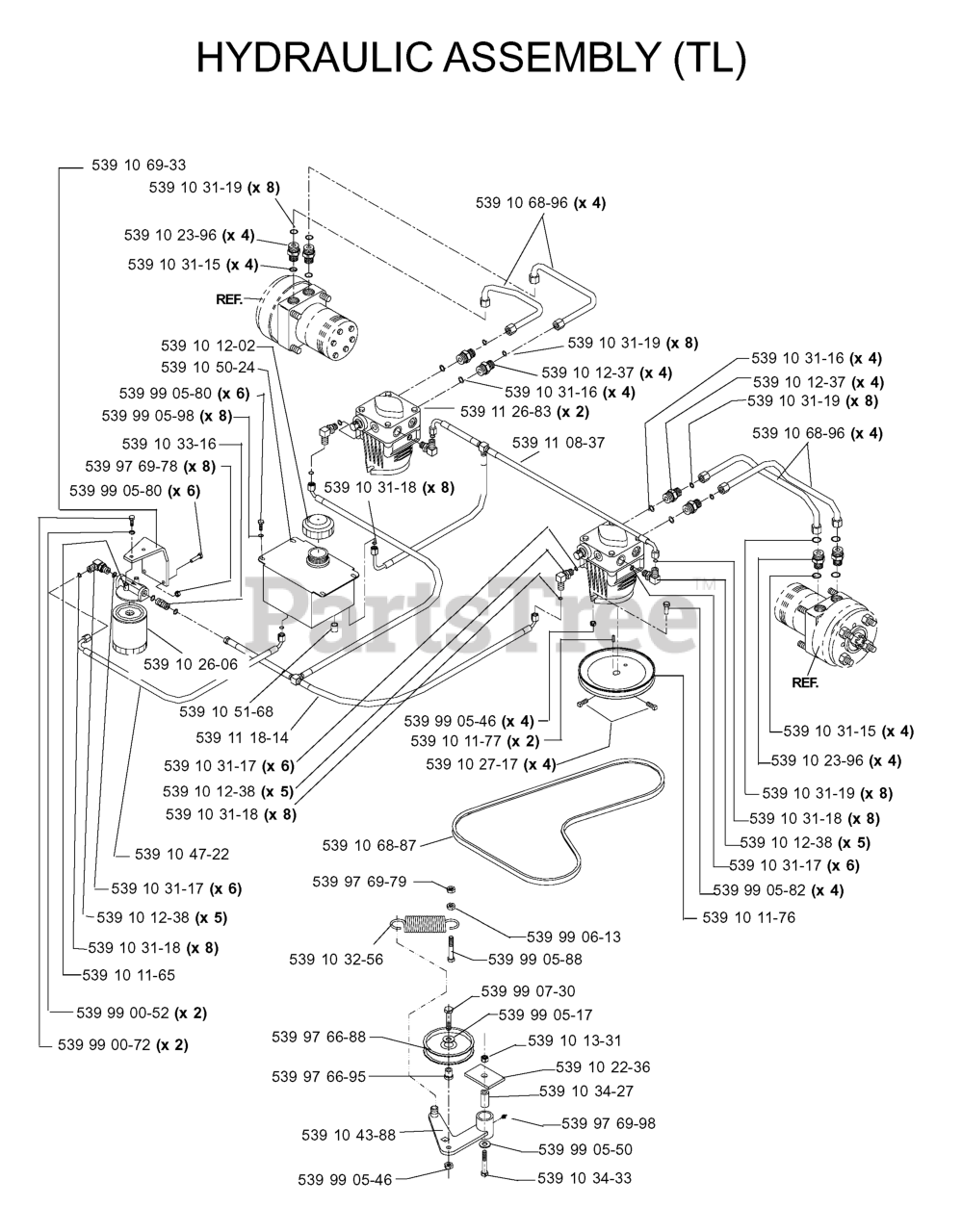

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title
539 10 34-33

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

539 99 06-13

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 10 27-17

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

539 10 31-19

$4.99

$

In Stock, only 3 left!

0

539 10 11-77

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 2 left!

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 12-38

Husqvarna 539101238

ELBOW, F6801-6-6-0 90 DEGREE

$15.99

$

Usually ships in 3-10 days

0

539 99 05-82

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

539 10 31-15

$

$

Not available

539 11 18-14

Husqvarna 539111814

T-ASSEMBLY

$

$

Not available

539 10 31-16

$

$

Not available

539 97 69-78

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

539 11 08-37

$

$

Not available

539 10 47-22

$

$

Not available

539 10 26-06

Husqvarna 539102606

HYDRAULIC OIL FILTER

$44.99

$

In Stock, Qty 8

0

539 99 07-30

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 10 68-96

Husqvarna 539106896

HYDRAULIC HOSE

$

$

Not available

539 10 31-18

$

$

Not available

539 10 11-65

Husqvarna 539101165

FILTER HEAD

$

$

Not available

539 10 11-76

$

$

Not available

539 10 22-36

$27.99

$

Usually ships in 3-10 days

0

539 10 50-24

$

$

Not available

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539 97 66-95

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

539 10 51-68

Husqvarna 539105168

NUT 9/16-18 JIC CAP

$3.99

$

In Stock, only 3 left!

0

539 10 31-17

$

$

Not available

539 99 00-52

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539 10 68-87

Husqvarna 539106887

PUMP BELT
(Superseded to 510201401)

$

$

Not available

539 99 05-88

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

539 99 05-98

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

539 10 12-02

Husqvarna 539101202

HYDRAULIC CAP

$24.99

$

In Stock, only 1 left!

0

539 10 69-33

Husqvarna 539106933

OIL FILTER BRKT

$27.99

$

Usually ships in 3-10 days

0

539 10 23-96

$

$

Not available

539 99 05-80

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

539 10 32-56

$12.99

$

In Stock, Qty 6

0

539 10 12-37

Husqvarna 539101237

FITTING, STRAIGHT F6400-8-8-0

$12.99

$

In Stock, only 2 left!

0

539 10 33-16

Husqvarna 539103316

STRAIGHT FITG

$11.99

$

Usually ships in 3-10 days

0

539 11 26-83

Husqvarna 539112683

PUMP 10CC WO/RTN
(Superseded to 539132147)

$

$

Not available

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 43-88

Husqvarna 539104388

IDLER ARM WLDT
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

539 99 00-72

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 97 66-88

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

539 10 34-27

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0
