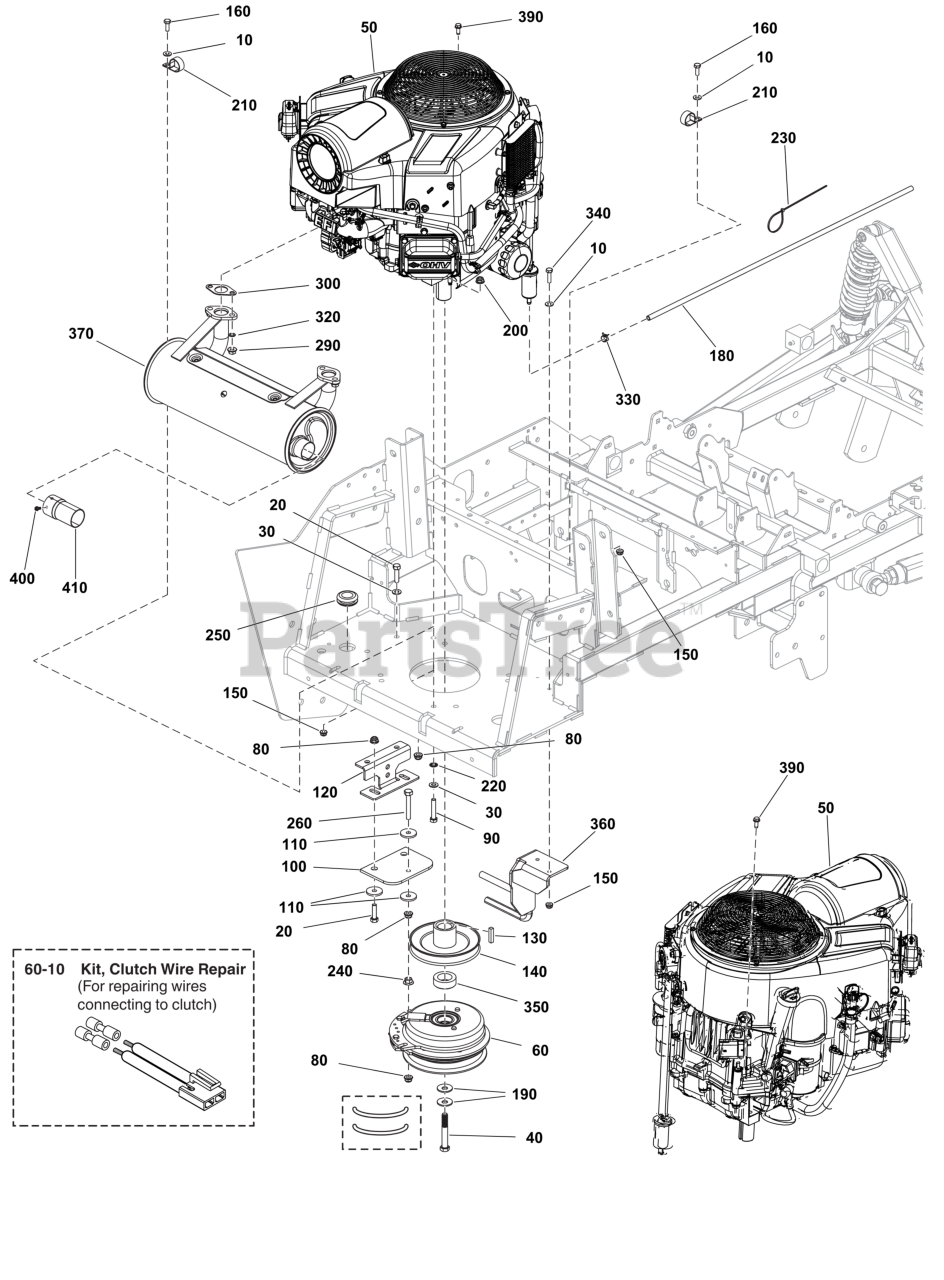

ISX 800 (5902172) - Ferris ISX800 Series 60" Zero-Turn Mower, 27hp Briggs & Stratton Engine and PTO Group Parts Diagram

ISX800 Series 60" Zero-Turn Mower, 27hp Briggs & Stratton

Engine and PTO Group Parts Diagram

  • Title

10

Ferris 84007033

WASHER

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025011X8FS

BOLT

$3.49

$

In Stock, Qty 17

0

30

Ferris 703350

WASHER

$4.49

$

In Stock, only 3 left!

0

40

Ferris 5102866YP

BOLT, CRANKSHAFT, 7/1

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm); Apply Loctite 271 to threads of crankshaft bolt when assembling.)

$5.49

$

In Stock, only 1 left!

0

50

ENGINE, Briggs & Stratton, 49X977-0005-J1

Note: (See engine manufacturer for engine service parts.)

$

$

Not available

60

Ferris 5105090YP

CLUTCH

$456.99

$

In Stock, only 3 left!

0

60-10

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

80

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

90

Ferris 5025025X14YP

BOLT

Note: (Torque engine mounting bolt to 50 ft-lbs (68 Nm))

$4.49

$

Usually ships in 2-12 days

0

100

Ferris 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

Usually ships in 2-12 days

0

110

Ferris 5044617SM

WASHER, .34 X 1.25 X

$8.49

$

In Stock, only 2 left!

0

120

Ferris 5410367AYP

ANCHOR, CLUTCH

$17.99

$

In Stock, only 1 left!

0

130

Ferris 5050407X10YP

KEY, 1/4 SQ X 1-1/4

$3.99

$

In Stock, only 4 left!

0

140

Ferris 84008127

PULLEY, Crankshaft

$62.99

$

Usually ships in 2-12 days

0

150

Ferris 5025391FS

NUT

$3.99

$

In Stock, Qty 20+

0

160

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 20+

0

180

Ferris 5050831X29SM

HOSE, 1/4" FUEL, 29.00"

$20.99

$

Usually ships in 2-12 days

0

190

Ferris 5025585YP

BELLEVILLE WASHER

$4.49

$

In Stock, only 4 left!

0

200

Ferris 5025616YP

NUT

$3.99

$

In Stock, only 2 left!

0

210

Ferris 5021500FS

CLAMP

$4.49

$

Usually ships in 2-12 days

0

220

Ferris 5025188SM

WASHER, 5/16" INT. TO

$3.99

$

In Stock, only 1 left!

0

230

Ferris 5101492YP

TIE,SELF-LOCKING, 24"

$3.49

$

Usually ships in 2-12 days

0

240

Ferris 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, Qty 12

0

250

Ferris 5103944YP

GROMMET, 7/8"ID

$2.99

$

Usually ships in 2-12 days

0

260

Ferris 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

290

Ferris 690941

NUT

$4.99

$

In Stock, Qty 7

0

300

Ferris 594365

GASKET, Exhaust

$11.99

$

In Stock, only 2 left!

0

320

Ferris 5023217SM

WASHER, 5/16 LIGHT LO

$3.49

$

Usually ships in 2-12 days

0

330

Ferris 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

340

Ferris 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

350

Ferris 84008137

SPACER

$

$

Currently unavailable

360

Ferris 5415993AYP

GUIDE, Belt

$56.99

$

Usually ships in 2-12 days

0

370

Ferris 706900

MUFFLER, RIGHT OUTLET

$222.99

$

Usually ships in 2-12 days

0

390

Ferris 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 5

0

400

Ferris 5025470YP

SCREW,SELF-TAP,#8-32

$3.49

$

In Stock, only 2 left!

0

410

Ferris 5104348YP

EXTENSION, TAILPIPE

$14.99

$

Usually ships in 2-12 days

0
