ISX 800 (5902084) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton Seat Mount and Floor Group Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

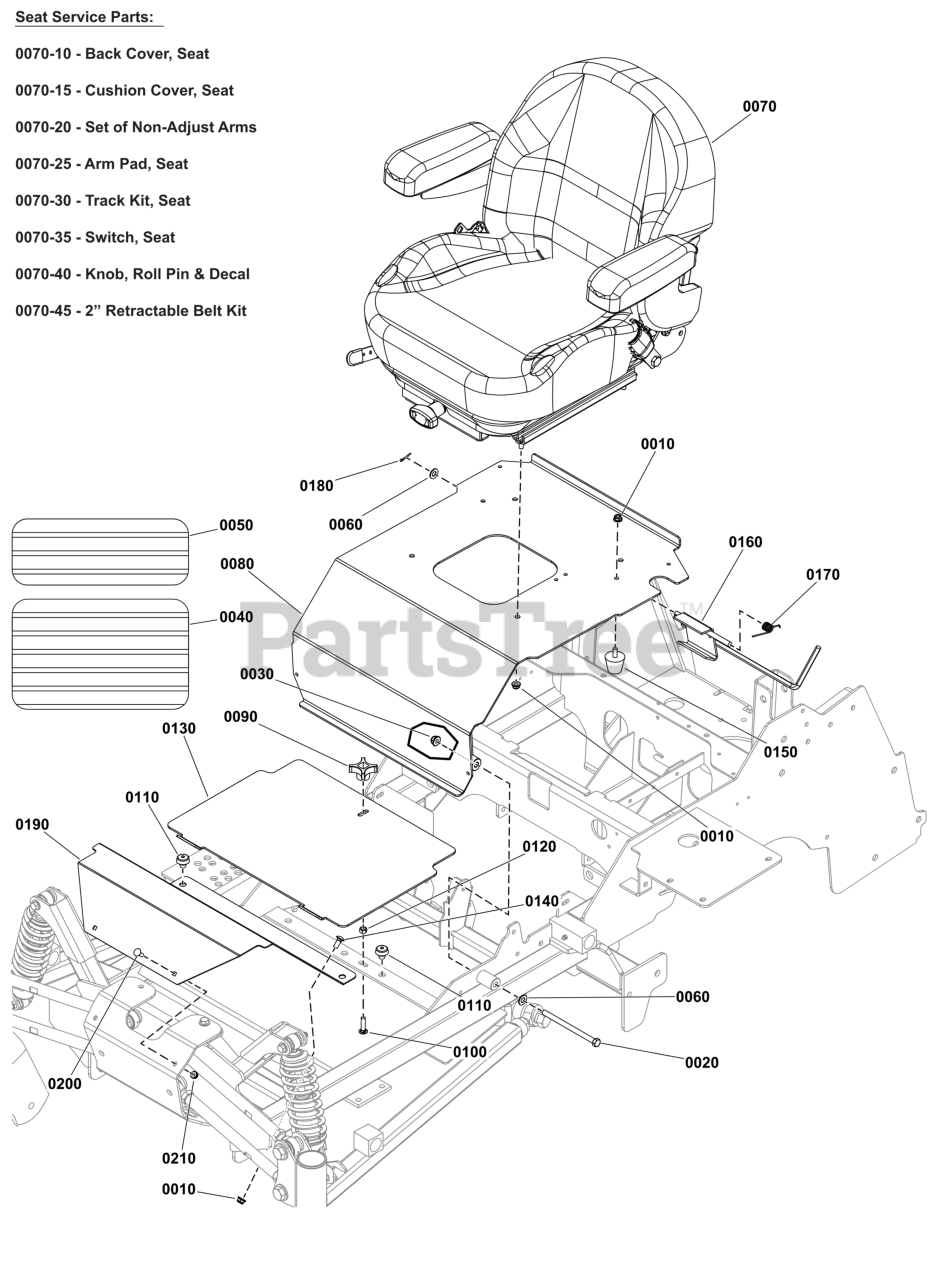

Seat Mount and Floor Group Parts Diagram

  • Title

0010

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

0020

Ferris 5025013X44SM

BOLT, 3/8-16 X 5-1/2"

$4.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0040

Ferris 5101333YP

SAFETY WALK, FLOOR PL

$37.99

$

Usually ships in 2-12 days

0

0050

Ferris 5101374YP

SAFETY WALK, FLOOR RE

$18.99

$

In Stock, only 1 left!

0

0060

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 84006403

SEAT

$1353.99

$

Usually ships in 2-12 days

0

0070-10

Ferris 84005183

COVER, Back

Note: (SV)

$253.99

$

Usually ships in 2-12 days

0

0070-15

Ferris 84005184

CUSHION, Seat

Note: (SV)

$210.99

$

Usually ships in 2-12 days

0

0070-20

Ferris 5108520X5

SET OF NON-ADJUST ARMS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

0070-25

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

0070-30

Ferris 5108520X1

TRACK KIT, SEAT

Note: (SV)

$165.99

$

Usually ships in 2-12 days

0

0070-35

Ferris 7023354YP

SWITCH, SEAT

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0070-40

Ferris 84005187

KNOB, Adjuster

Note: (SV)

$31.99

$

Usually ships in 2-12 days

0

0070-45

Ferris 5106325X5

2" RETRACTABLE BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

0080

Ferris 5601210

SEAT PLATE W/ DECALS, IS2100Z, ST LTCH

Note: (USA Models)

$343.99

$

Usually ships in 2-12 days

0

0080

Ferris 5601212

SEAT PLATE W/ DECALS, 2100, ST LTCH, CE

Note: (Export Models)

$349.99

$

Usually ships in 2-12 days

0

0090

Ferris 1670578SM

KNOB-INT THR .312-18

$13.99

$

Usually ships in 2-12 days

0

0100

Ferris 5025145X10YP

BOLT, 5/16-18 X 1-1/4

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 197546GS

MOUNT-VIBRATION

$7.99

$

In Stock, only 2 left!

0

0120

Ferris 703164

NUT

$3.49

$

In Stock, Qty 20+

0

0130

Ferris 5410296BFS

PLATE, FLOOR

$84.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 5

0

0150

Ferris 84003201

SUPPORT, RUBBER

$8.99

$

In Stock, only 3 left!

0

0160

Ferris 84002142

WELD, SEAT LATCH HOOK - BLK

$35.99

$

Usually ships in 2-12 days

0

0170

Ferris 84003202

SPRING, TORSION

$2.49

$

Usually ships in 2-12 days

0

0180

Ferris 703312

PIN, COTTER, 3/32X.75

$3.99

$

In Stock, Qty 20+

0

0190

Ferris 5419452BFS

PLATE, FLOOR

$62.99

$

Usually ships in 2-12 days

0

0200

Ferris 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0210

Ferris 5025391FS

NUT

$3.99

$

In Stock, Qty 20+

0
