ISX 800 (5902084) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton Parking Brake Group Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

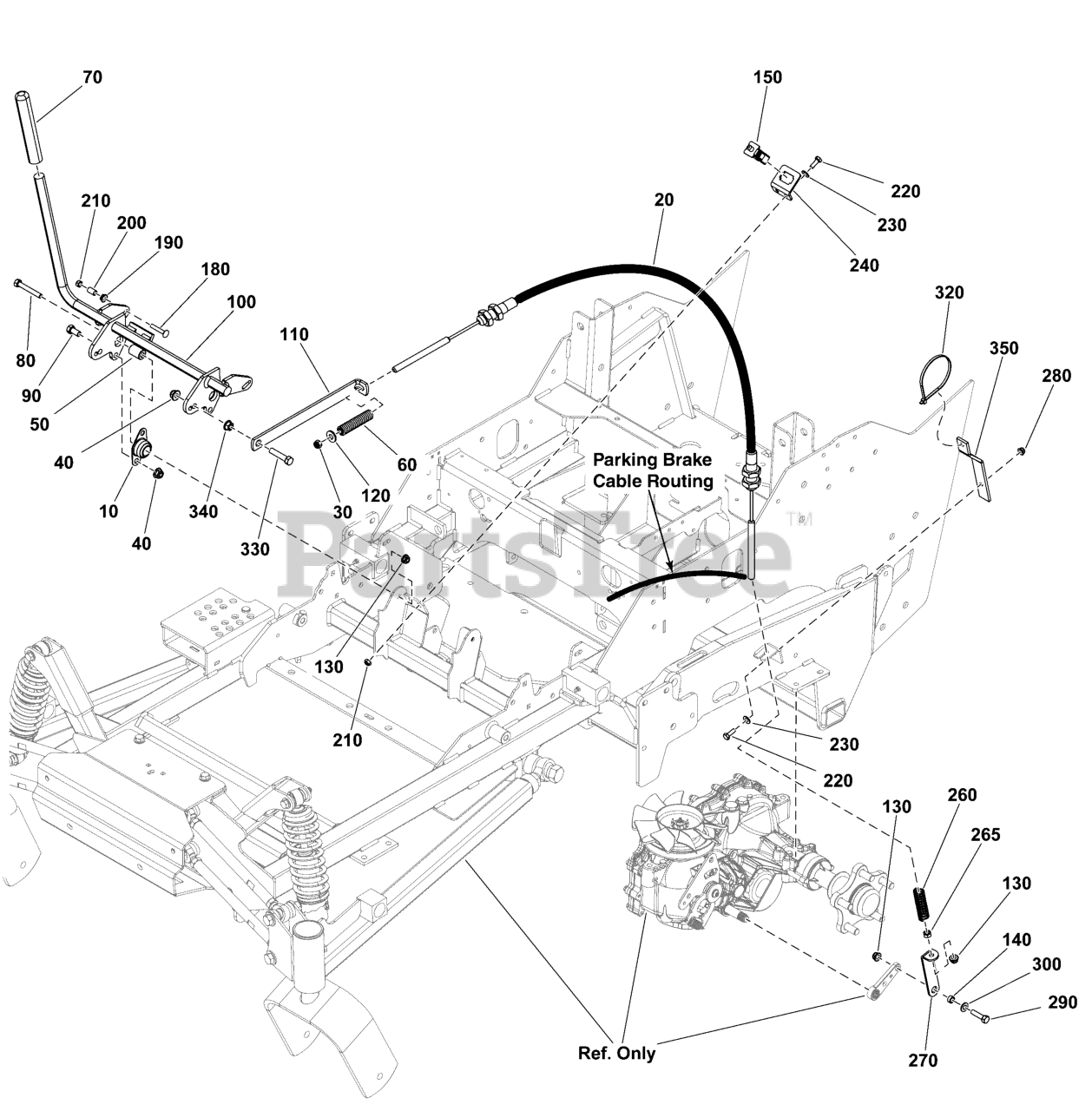

Parking Brake Group Parts Diagram

  • Title

10

Ferris 5021098SM

BEARING, BRONZE FLANG

$13.99

$

In Stock, Qty 5

0

20

Ferris 5104276YP

CABLE,PARKING BRAKE

$62.99

$

Usually ships in 2-12 days

0

30

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, Qty 11

0

40

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

50

Ferris 5042134SM

SPACER, .32 X .75 X 1

$6.49

$

In Stock, only 1 left!

0

60

Ferris 5023242SM

SPRING, CONTROL ROD

$6.99

$

Usually ships in 2-12 days

0

70

Ferris 5101038SM

GRIP, FOAM

$7.49

$

In Stock, only 1 left!

0

80

Ferris 5025011X14SM

BOLT, 5/16-18 X 1-3/4

$3.99

$

In Stock, Qty 20+

0

90

Ferris 5025013X6SM

BOLT, 3/8-16 X 3/4" G

$3.99

$

Usually ships in 2-12 days

0

100

Ferris 84008232

LINK, Lockout

$

$

Currently unavailable

110

Ferris 84008138

LATCH, Parking Brake

$

$

Currently unavailable

120

Ferris 5025337FS

WASHER

$3.99

$

Usually ships in 2-12 days

0

130

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

140

Ferris 5102463YP

SPACER, .33 X .50X.25

$5.49

$

Usually ships in 2-12 days

0

150

Ferris 7022886YP

SWITCH, DP NO/NC SNAP

$14.99

$

In Stock, Qty 20+

0

180

Ferris 704214

BOLT, 1/4-20 X 1.5

$3.99

$

Usually ships in 2-12 days

0

190

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

200

Ferris 5041483YP

SPACER

$5.49

$

Usually ships in 2-12 days

0

210

Ferris 5025095SM

NUT, 1/4-20 HEX NYLON

$3.49

$

In Stock, Qty 5

0

220

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 20+

0

230

Ferris 84007033

WASHER

$4.49

$

Usually ships in 2-12 days

0

240

Ferris 5415932AYP

TAB

$6.99

$

Usually ships in 2-12 days

0

260

Ferris 5021494SM

SPRING, COMPRESSION,

$13.99

$

Usually ships in 2-12 days

0

265

Ferris 5025032SM

NUT, 5/16-18 HEX

$3.49

$

Usually ships in 2-12 days

0

270

Ferris 5410294AYP

LINK, LOWER BRAKE

$9.49

$

Usually ships in 2-12 days

0

280

Ferris 5025391FS

NUT

$3.99

$

In Stock, Qty 20+

0

290

Ferris 5025011X8FS

BOLT

$3.49

$

In Stock, Qty 17

0

300

Ferris 703350

WASHER

$4.49

$

In Stock, only 3 left!

0

320

Ferris 5021029SM

TIE WRAP, 11" Long

$

$

Not available

330

Ferris 5025013X14SM

BOLT, 3/8-16 X 1-3/4"

$3.99

$

In Stock, only 2 left!

0

340

Ferris 5025128SM

NUT, 3/8-16 HEX SERRA

$3.49

$

In Stock, only 2 left!

0

350

Ferris 84008120

BRACKET

$

$

Currently unavailable
