ISX 800 (5902075) - Ferris ISX800 Series 60" Zero-Turn Mower, 27hp Briggs & Stratton Motion Control Group - Control System Parts Diagram

ISX800 Series 60" Zero-Turn Mower, 27hp Briggs & Stratton

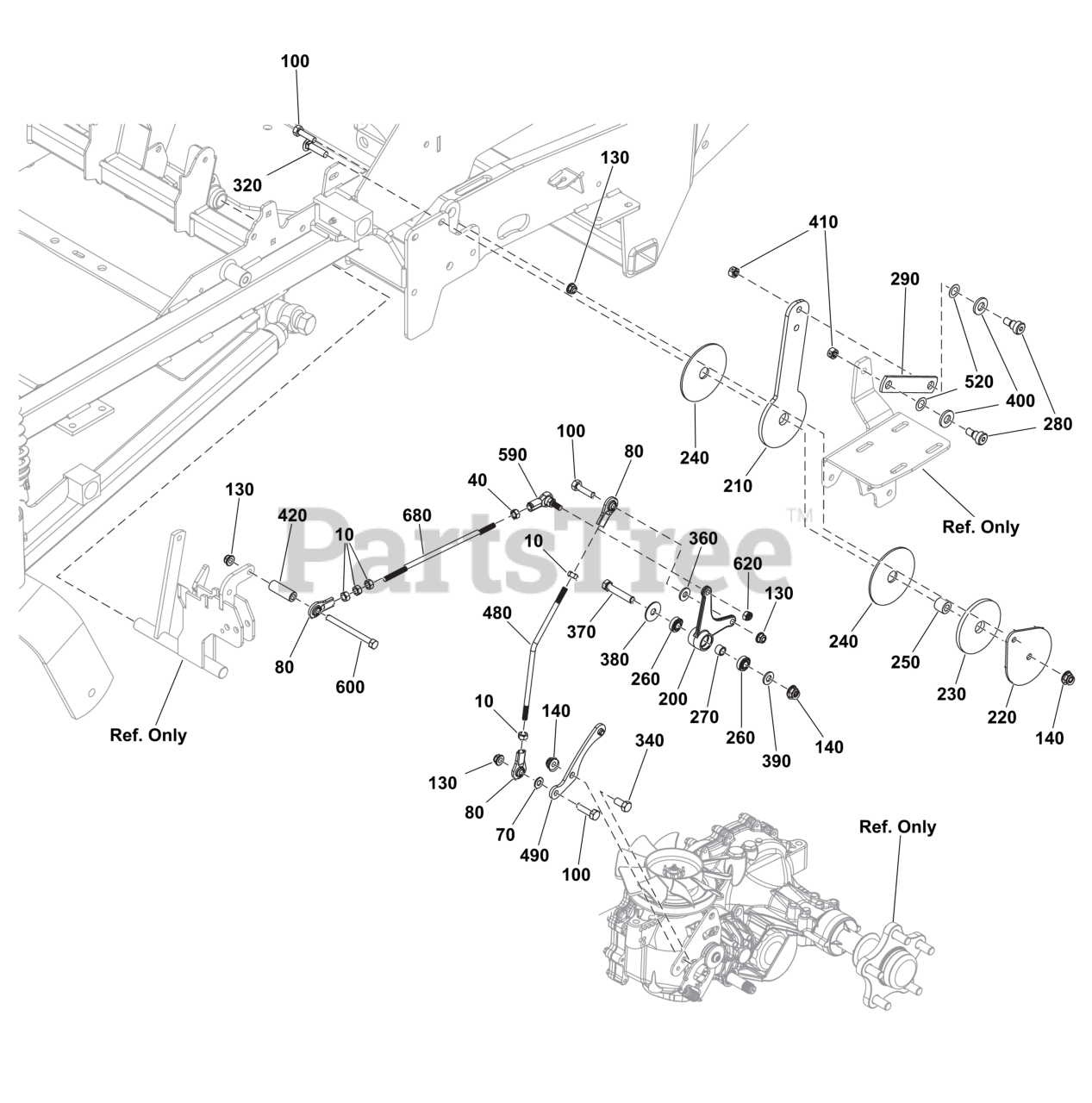

Motion Control Group - Control System Parts Diagram

  • Title

10

Ferris 5025033FS

NUT

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 5023212SM

NUT, 5/16-24 HEX, LH

$3.49

$

Usually ships in 2-12 days

0

70

Ferris 703350

WASHER

$4.49

$

In Stock, only 2 left!

0

80

Ferris 5104578YP

JOINT-BALL

$11.99

$

Usually ships in 2-12 days

0

100

Ferris 5025055X10YP

BOLT, 5/16-18 X 1-1/4

$3.49

$

In Stock, only 1 left!

0

130

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

140

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

200

Ferris 5103718YP

PIVOT, CONTROL SYSTEM

$23.99

$

Usually ships in 2-12 days

0

210

Ferris 84008022

PLATE, CONTROL SYSTEM ARM - HT

$

$

Currently unavailable

220

Ferris 5410271AYP

PLATE, CTRL SYSTEM LK

$8.49

$

Usually ships in 2-12 days

0

230

Ferris 5103704YP

PAD, .77 X 3.50 X .25

$50.99

$

Usually ships in 2-12 days

0

240

Ferris 5103672YP

PAD, CONTROL SYSTEM

$6.49

$

Usually ships in 2-12 days

0

250

Ferris 5103705YP

SPACER, .39X.75X.69

$7.49

$

Usually ships in 2-12 days

0

260

Ferris 5102003YP

BEARING, .375ID

$9.49

$

Usually ships in 2-12 days

0

270

Ferris 5103676YP

SPACER, .39X.55X.38

$6.49

$

Usually ships in 2-12 days

0

280

Ferris 5025356SM

BOLT, 3/8-16 X 3/8",

$6.99

$

In Stock, Qty 6

0

290

Ferris 84008023

LINK, CONTROL SYSTEM, 800/P1 - BLK

$

$

Currently unavailable

320

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

340

Ferris 5025013X6SM

BOLT, 3/8-16 X 3/4" G

$3.99

$

Usually ships in 2-12 days

0

360

Ferris 5025292SM

WASHER, 5/16" GD.9 FL

$3.99

$

In Stock, Qty 17

0

370

Ferris 703589

CAPSCREW, 3/8-16X2

$4.49

$

In Stock, only 1 left!

0

380

Ferris 5025165SM

WASHER, 3/8" FENDER

$3.99

$

In Stock, only 2 left!

0

390

Ferris 5025293SM

WASHER, 3/8"

$3.99

$

In Stock, Qty 5

0

400

Ferris 5025440SM

WASHER, 1/2" YELLOW

$4.49

$

In Stock, only 1 left!

0

410

Ferris 5025100SM

NUT, 3/8-16 HEX SIDE

$3.49

$

In Stock, Qty 20+

0

420

Ferris 84008020

SPACER

$

$

Currently unavailable

480

Ferris 84008024

ROD, LOWER CONTROL, 800/P1 CONSOL

$

$

Currently unavailable

490

Ferris 5105030YP

ARM-CONTROL

$11.99

$

Usually ships in 2-12 days

0

520

Ferris 5103784YP

WAVE WASHER

$11.99

$

Usually ships in 2-12 days

0

590

Ferris 5104495YP

JOINT-BALL

$22.99

$

Usually ships in 2-12 days

0

600

Ferris 5025011X24SM

BOLT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

620

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, Qty 11

0

680

Ferris 84008025

ROD, 5/16-24 RH & LH, BZ

$

$

Currently unavailable
