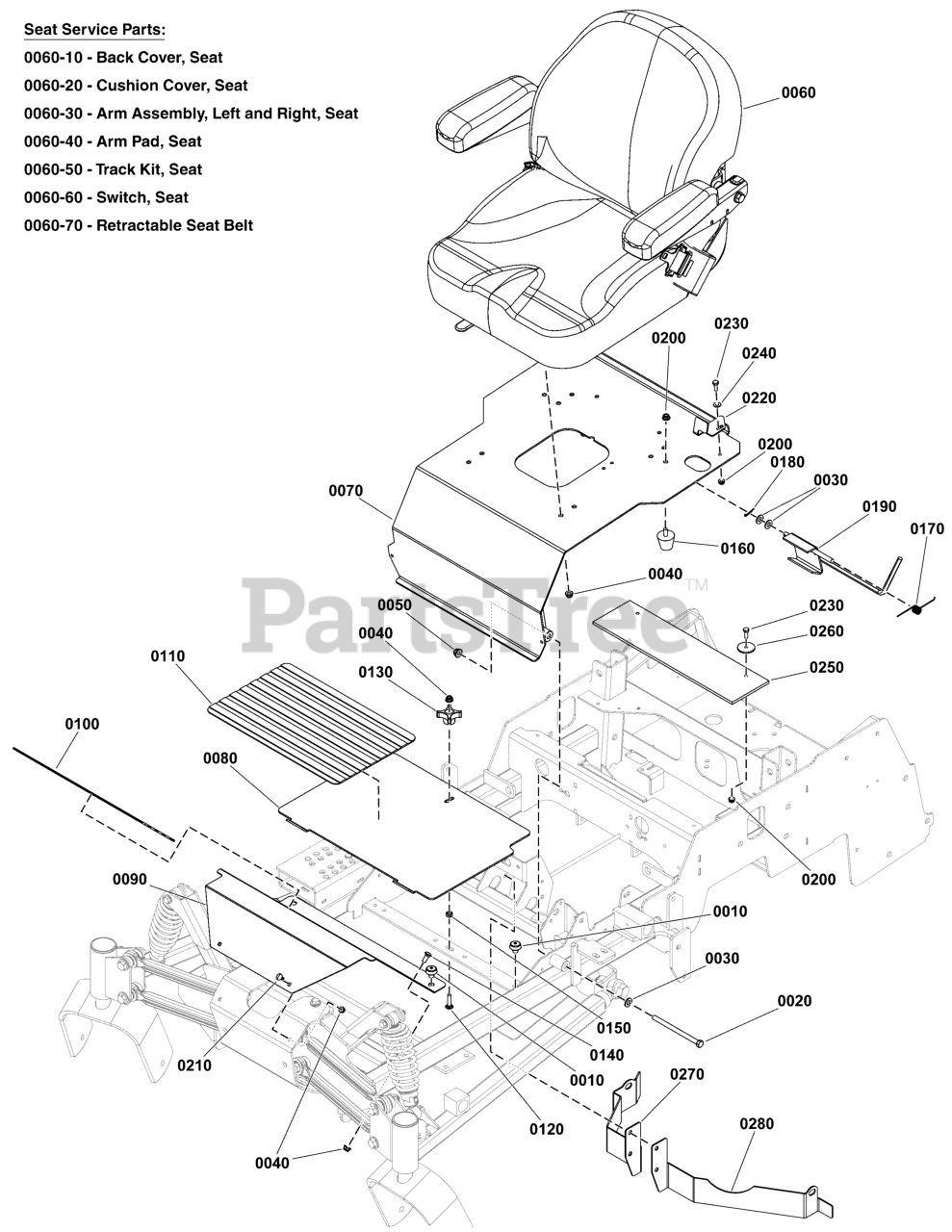

ISX 800 (5902021) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton Seat Mount and Floor Group Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

Seat Mount and Floor Group Parts Diagram

  • Title

0010

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0020

Ferris 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0060

Ferris 84008518

SEAT

$

$

Currently unavailable

0060-10

Ferris 84006015

CUSHION, Back

Note: (SV)

$213.99

$

Usually ships in 2-12 days

0

0060-20

Ferris 5108188X1

CUSHION COVER FOR CI3

Note: (SV)

$201.99

$

In Stock, only 2 left!

0

0060-30

Ferris 5108188X2

SET OF FRONT ADJUST ARMS

Note: (SV)

$343.99

$

Usually ships in 2-12 days

0

0060-40

Ferris 5108190X1

ARM PAD ASSEMBLY

Note: (SV)

$70.99

$

Usually ships in 2-12 days

0

0060-50

Ferris 5108188X3

4" SINGLE LOCKING TRACK KIT

Note: (SV)

$165.99

$

Usually ships in 2-12 days

0

0060-60

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0060-70

Ferris 5106325X5

2" RETRACTABLE BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

0070

Ferris 5601295

SEAT PLATE W/DECALS, 800, ST LATCH AUS

$512.99

$

Usually ships in 2-12 days

0

0080

Ferris 5410296B

PLATE, FLOOR, REMOVABLE, IS700 - RED
(Superseded to 5410296BFS)

$84.99

$

Usually ships in 2-12 days

0

0090

Ferris 5420838B

PLATE, FRONT FLOOR, ISX800 - RED
(Superseded to 5420838BFS)

$91.99

$

Usually ships in 2-12 days

0

0100

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

0110

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X10YP)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

0140

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0150

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0160

Ferris 5106763

BUMPER, RUBBER, 5/16-18, 60 DURO
(Superseded to 84003201)

$8.99

$

In Stock, only 3 left!

0

0170

Ferris 5106644

SPRING, TORSION, LH, .0625OD
(Superseded to 84003202)

$2.49

$

Usually ships in 2-12 days

0

0180

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0190

Ferris 5420950AA

WELD, SEAT LATCH HOOK, 700/800 - BLK
(Superseded to 84006564)

$48.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0210

Ferris 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0220

Ferris 80080168AA

SEAT LATCH, 3200, CE - BLK

$

$

Currently unavailable

0230

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0240

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0250

Ferris 5104173

RUBBER, SEAT GUARD, IS700 CE

$

$

Currently unavailable

0260

Ferris 5044577

WASHER, .265 X 1.50 X .109, YZ
(Superseded to 5044577SM)

$3.99

$

In Stock, only 1 left!

0

0270

Ferris 80079680AA

GROUP, DRIVE RH, ISX800 52" CE - BLK

$

$

Currently unavailable

0280

Ferris 80079692AA

GROUP, DRIVE LH, ISX800 52" CE - BLK

$

$

Currently unavailable
