ISX 800 (5902020) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton 52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

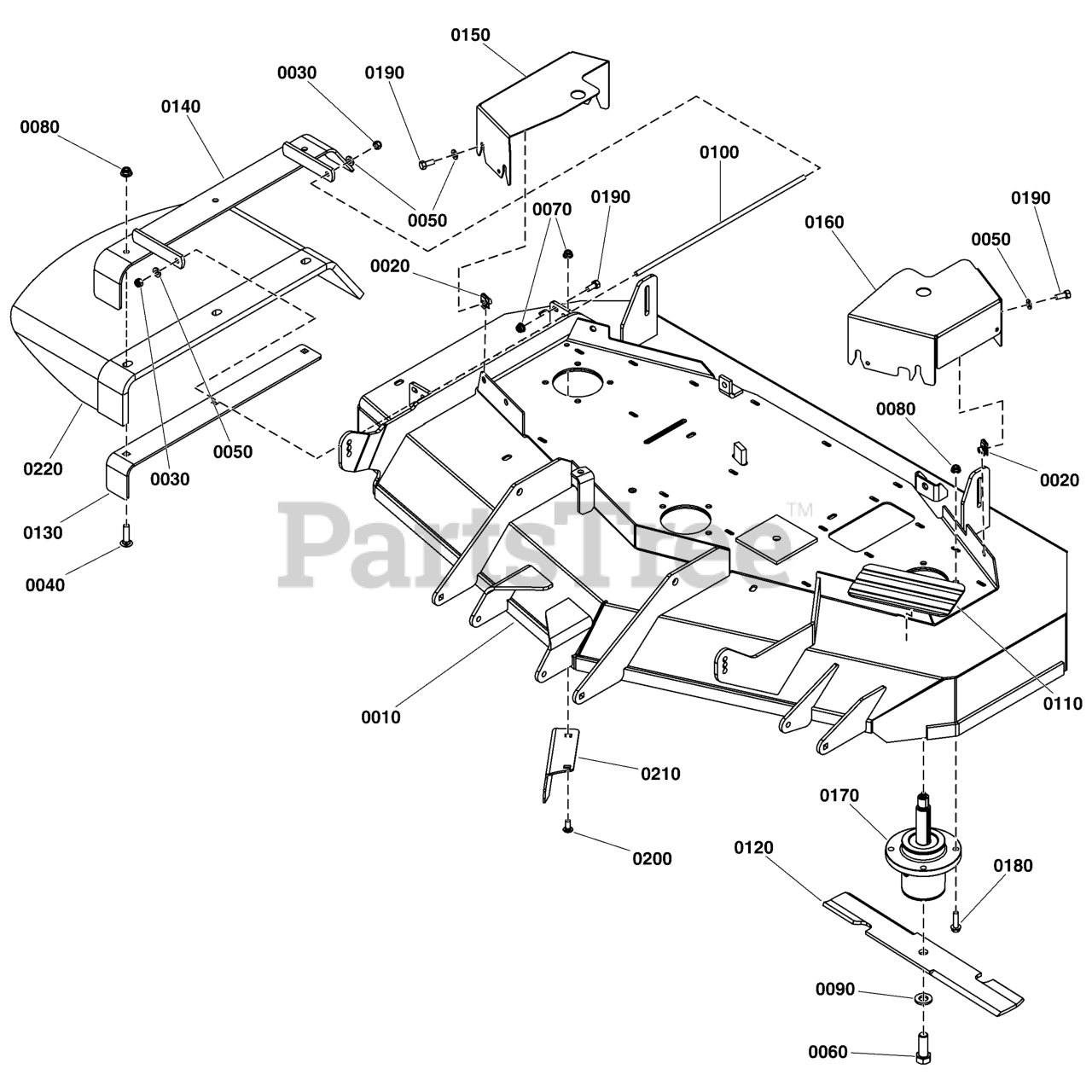

52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

0010

Ferris 5601307

DECK SHELL W/DECALS, 800-52 AUS (5422055B)

$

$

Currently unavailable

0020

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0030

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0040

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0050

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0060

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: Blade Mounting Bolt Torque: 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0090

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 8

0

0100

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

0110

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

0120

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

Note: (Set of 3 blades)

$

$

Currently unavailable

0130

Ferris 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

$31.99

$

Usually ships in 2-12 days

0

0140

Ferris 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

$66.99

$

Usually ships in 2-12 days

0

0150

Ferris 5418311B

GUARD, 52 DECK, RH - RED
(Superseded to 5418311BFS)

$32.99

$

Usually ships in 2-12 days

0

0160

Ferris 5418310B

GUARD, 52 DECK, LH - RED
(Superseded to 5418310BFS)

$34.99

$

Usually ships in 2-12 days

0

0170

Ferris 5061096

SPINDLE ASSM, ALUMINUM, LONG SHAFT
(Superseded to 5061096SM)

$243.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

Note: (Spindle Mounting Bolt Torque: 30 ft-lbs (41 Nm)

$2.99

$

Usually ships in 2-12 days

0

0190

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 7

0

0200

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0210

Ferris 84003127

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

0220

Ferris 5413500

CHUTE, RUBBER DISCHARGE (5104442)

$216.99

$

Usually ships in 2-12 days

0
