ISX 800 (5901991) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton Rear Bumper and ROPS Group Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

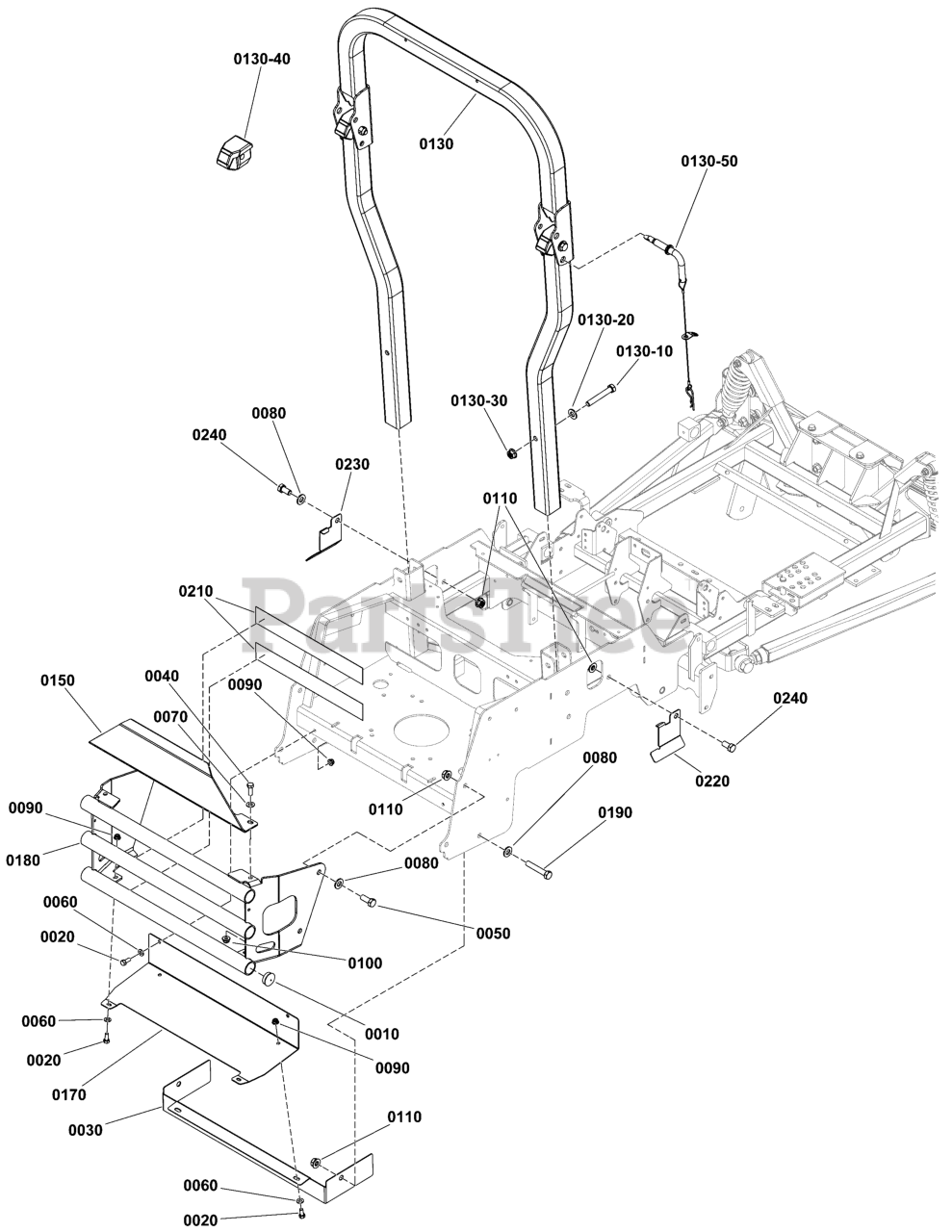

Rear Bumper and ROPS Group Parts Diagram

  • Title

0010

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

0020

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0030

Ferris 5413448AA

PLATE, PULLEY GUARD, FRAME MOUNT - BLK

$

$

Currently unavailable

0040

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0050

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0070

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0110

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0130

ROPS

Note: (Refer to Note: *)

$

$

Not available

0130-10

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

0130-20

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0130-30

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

0130-40

Ferris 5108027

BLOCK, ROPS
(Superseded to 5108027FS)

$20.99

$

Usually ships in 2-12 days

0

0130-50

Ferris 5108350

HINGE PIN ASSEMBLY
(Superseded to 5108350FS)

$27.99

$

In Stock, only 2 left!

0

0150

Ferris 5410486B

PLATE, CARB PROTECTOR - RED
(Superseded to 5410486BFS)

$53.99

$

Usually ships in 2-12 days

0

0170

Ferris 84008515

SHIELD, Heat

$

$

Currently unavailable

0180

Ferris 5410483B

WELD, BUMPER - IS700 - RED
(Superseded to 5410483BFS)

$266.99

$

Usually ships in 2-12 days

0

0190

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

0210

Ferris 5021125X16

ALUM FOIL TAPE 2 WIDE-2160 RL X 16"LG

$

$

Currently unavailable

0220

Ferris 5421450B

PLATE, FAN GUARD, FRAME MOUNT - RH - RED

$

$

Currently unavailable

0230

Ferris 5421447B

PLATE, FAN GUARD, FRAME MOUNT - LH - RED

$

$

Currently unavailable

0240

Ferris 5025017X8

BOLT, 1/2-13 X 1, GD5 YZ

$

$

Currently unavailable
