ISX 800 (5901974) - Ferris ISX800 Series 61" Zero-Turn Mower, 26hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton 49R977 Parts Diagram

ISX800 Series 61" Zero-Turn Mower, 26hp Briggs & Stratton

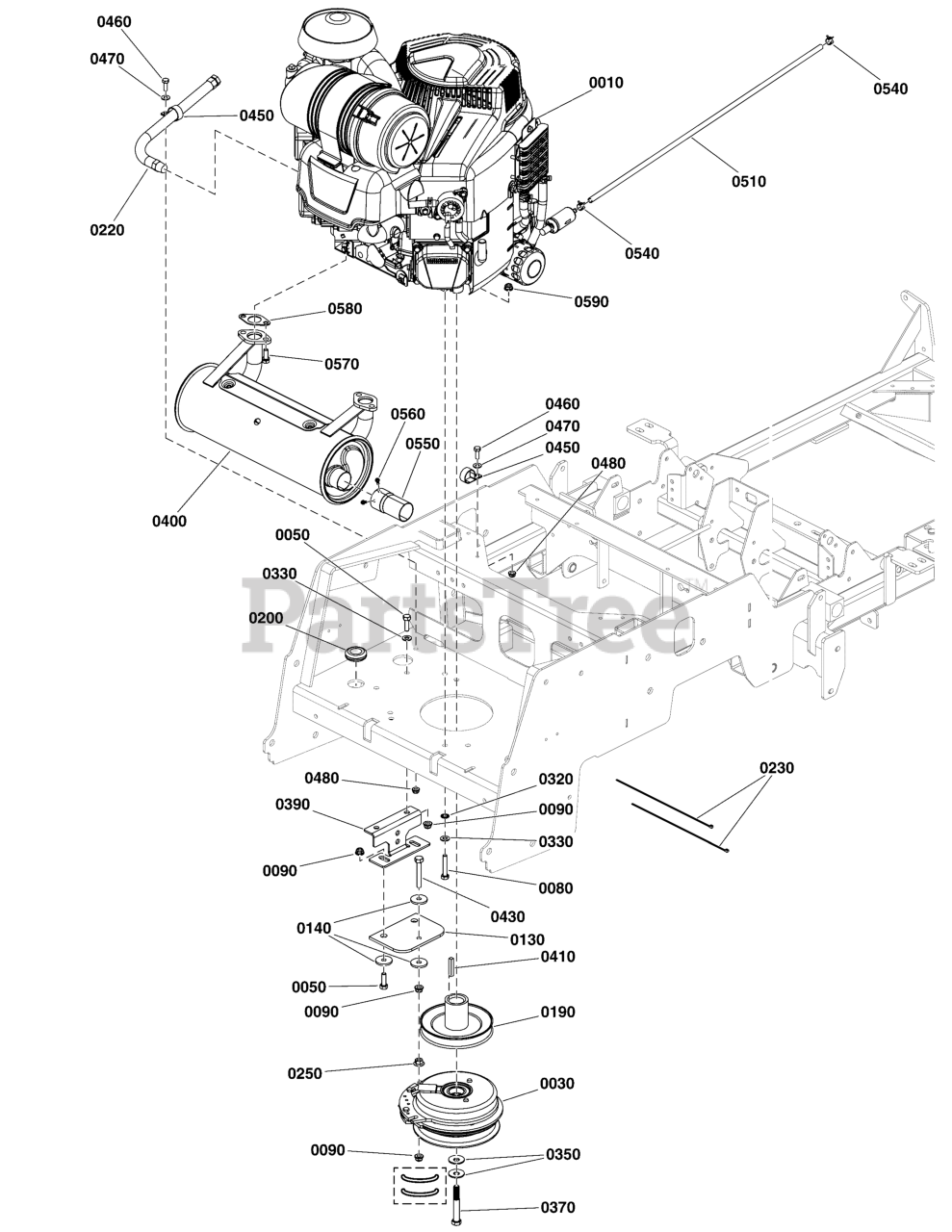

Engine & PTO Group - Briggs & Stratton 49R977 Parts Diagram

  • Title

0010

ENGINE, BRIGGS & STRATTON, VANGUARD

Note: (See engine manufacturer for engine service parts.)

$

$

Not available

0030

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

0050

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0080

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

Note: (Torque engine mounting bolt to 50 ft-lbs (68 Nm); Apply Loctite 271 to threads of crankshaft bolt when assembling.)

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

0140

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

0190

Ferris 5105108

PULLEY, CRANKSHAFT 1.1255"ID X 5.318" OB
(Superseded to 5105108YP)

$64.99

$

Usually ships in 2-12 days

0

0200

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

0220

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

0230

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

0250

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

0320

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

0330

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0350

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

0370

Ferris 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm))

$5.49

$

In Stock, only 1 left!

0

0390

Ferris 5410367A

ANCHOR, CLUTCH, IS600-IS700 - BLK
(Superseded to 5410367AYP)

$17.99

$

In Stock, only 1 left!

0

0400

Ferris 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

$222.99

$

Usually ships in 2-12 days

0

0410

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

0430

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

0450

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0460

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0470

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0480

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0510

Ferris 5050831X29

1/4" Fuel Line, 29" Long

$

$

Not available

0540

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

0550

Ferris 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

Usually ships in 2-12 days

0

0560

Ferris 5025470

SCREW, SELF-TAP, #8-32 X 3/8. WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

In Stock, only 2 left!

0

0570

Ferris 94480

SCREW
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

0580

Ferris 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

0590

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0
