ISX 800 (5901834) - Ferris ISX800 Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, CARB Rear Suspension Group Parts Diagram

ISX800 Series 61" Zero-Turn Mower, 26hp Briggs & Stratton, CARB

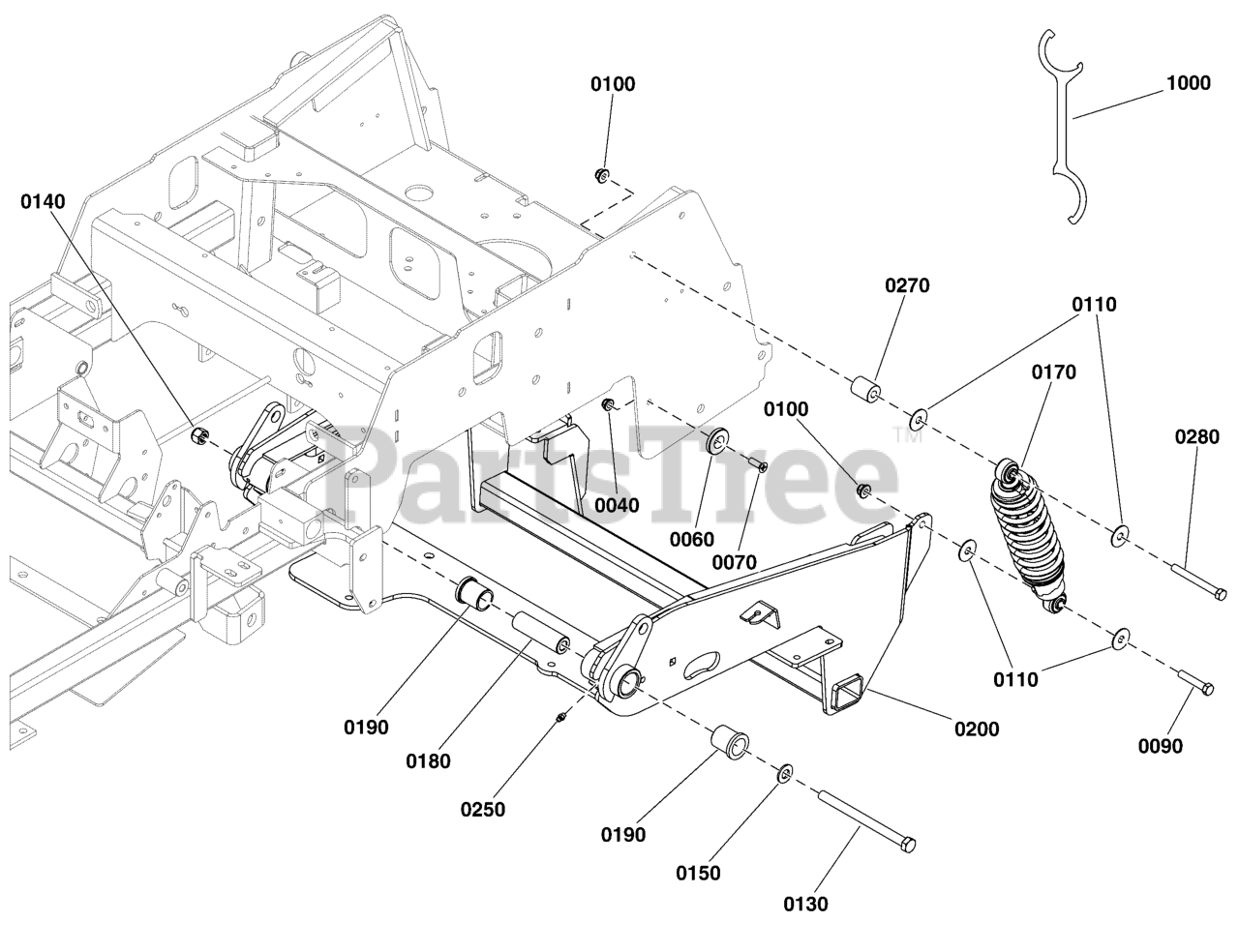

Rear Suspension Group Parts Diagram

  • Title
0040

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5102701

SPACER, .34 X 1.54 X .25 - UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

0070

Ferris 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

$3.99

$

Usually ships in 2-12 days

0

0090

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0110

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

0130

Ferris 5025488X52

BOLT, 1/2-13 X 6-1/2" GD8 YZ
(Superseded to 5025488X52YP)

$8.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

0150

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

0170

Ferris 5106600

SHOCK ABSORBER
(Superseded to 84001902)

$136.99

$

Usually ships in 2-12 days

0

0180

Ferris 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

0190

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

0200

Ferris 84007762

CRADLE, Suspension

$889.99

$

Usually ships in 2-12 days

0

0250

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

0270

Ferris 5103427

SPACER, .39 X 1.00 X 1.25, PM, CZ
(Superseded to 5103427YP)

$8.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

1000

Ferris 5106539

WRENCH, SPANNER, CZ
(Superseded to 84001903)

$14.99

$

Usually ships in 2-12 days

0
