ISX800 Series 61" Zero-Turn Mower, 26hp Kawasaki

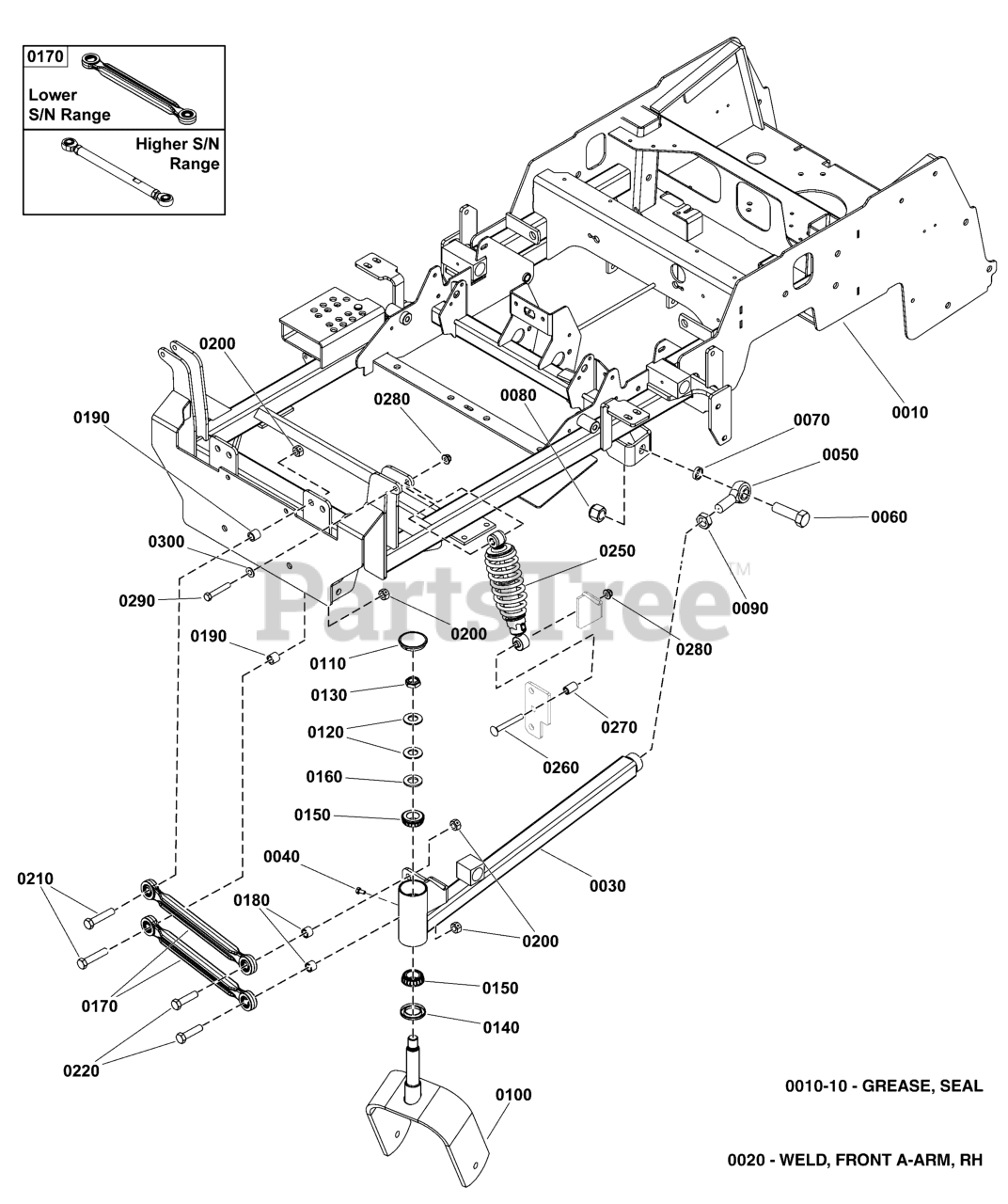

Main Frame and Front Suspension Group Parts Diagram

  • Title

0010

WELD, MAIN FRAME, ISX800Z - RED

Note: (Refer to Note: *)

$

$

Not available

0010-10

Ferris 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

0020

Ferris 5418173B

WELD, FRONT A-ARM, RH, 61 - RED
(Superseded to 5418173BFS)

$248.99

$

In Stock, only 1 left!

0

0030

Ferris 5418172B

WELD, FRONT A-ARM, LH, 61 - RED
(Superseded to 5418172BFS)

$248.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

0050

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

0060

Ferris 5025265X20

BOLT, 3/4-16 X 2-1/2" YZ GD5
(Superseded to 5025265X20YP)

$10.99

$

Usually ships in 2-12 days

0

0070

Ferris 5047461

SPACER, .76 x 1.00 x .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

0090

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

0100

Ferris 5411934B

WELD, CASTER YOKE - RED
(Superseded to 5419196BFS)

$198.99

$

Usually ships in 2-12 days

0

0110

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

0120

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

0130

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

0140

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

0150

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

0160

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

0170

CONTROL ARM, CAST

Note: (S/N: 4001946876 and below) (Refer to Note: *)

$

$

Not available

0170

Ferris 5108875

CONTROL ARM, 1/2 X 11.88, LOADER SLOT
(Superseded to 84006986)

Note: (S/N: 4001946877 and above)

$60.99

$

Usually ships in 2-12 days

0

0180

Ferris 5047027

SPACER, .51 X .75 X .56, PM, CZ
(Superseded to 5047027SM)

Note: (S/N: 4001946876 and below)

$5.49

$

In Stock, Qty 20+

0

0180

Ferris 5109853

SPACER, TAPPERED .50 ID, ISX800 ARM CZ
(Superseded to 84006987)

Note: (S/N: 4001946877 and above)

$3.99

$

Usually ships in 2-12 days

0

0190

Ferris 5048049

SPACER, .50 X .75 X .66, CZ
(Superseded to 84002461)

Note: (S/N: 4001946876 and below)

$8.49

$

In Stock, only 1 left!

0

0190

Ferris 5109853

SPACER, TAPPERED .50 ID, ISX800 ARM CZ
(Superseded to 84006987)

Note: (S/N: 4001946877 and above)

$3.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

0210

Ferris 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

In Stock, only 1 left!

0

0220

Ferris 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

0250

Ferris 5106476

SHOCK ABSORBER, 9.06"
(Superseded to 84001896)

$142.99

$

Usually ships in 2-12 days

0

0260

Ferris 5025146X24

BOLT, 3/8-16 X 3, CARRIAGE, GD5, CZ

$

$

Currently unavailable

0270

Ferris 5101933

SPACER, .39 X .63 X 1.00, YZ
(Superseded to 5101933YP)

$4.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0290

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

0300

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
