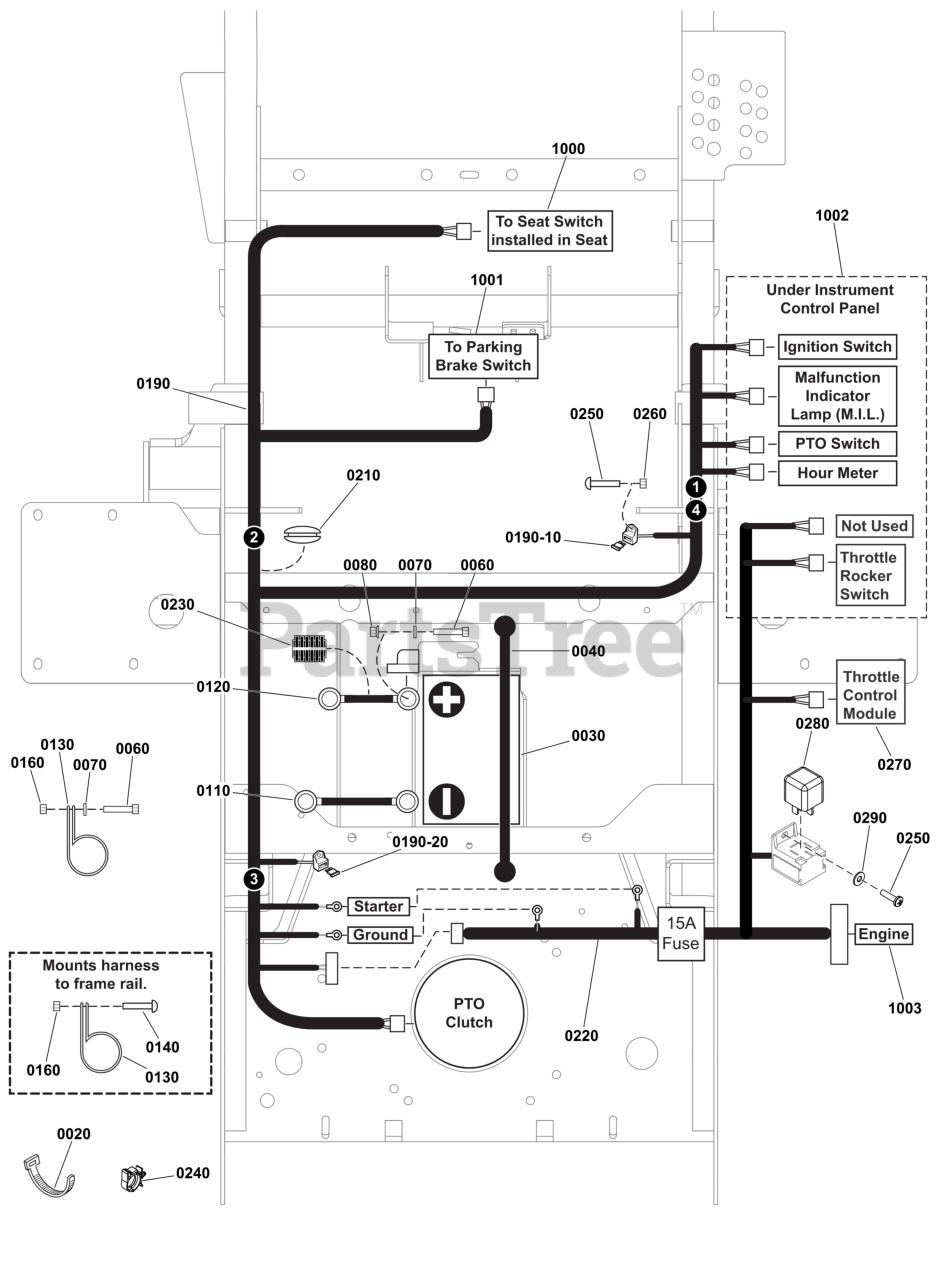

ISX 3300 (5902118) - Ferris ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton Electrical Group - Briggs & Stratton Models with ETC S/N: 4002218815 and Above Parts Diagram

ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton

Electrical Group - Briggs & Stratton Models with ETC S/N: 4002218815 and Above Parts Diagram

  • Title

0020

Ferris 5021029SM

TIE WRAP, 11" Long

$

$

Not available

0030

BATTERY, 11U1L, 350 CCA

$

$

Not available

0040

Ferris 1722009FS

STRAP

$9.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 20+

0

0070

Ferris 84007033

WASHER

$4.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

0110

Ferris 5021406SM

BATTERY CABLE, NEGATI

$16.99

$

Usually ships in 2-12 days

0

0120

Ferris 5021405SM

BATTERY CABLE, POSITI

$18.99

$

Usually ships in 2-12 days

0

0130

Ferris 5021500FS

CLAMP

$4.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0160

Ferris 5025391FS

NUT

$3.99

$

In Stock, Qty 20+

0

0190

Ferris 5105535YP

HARNESS-WIRING

$207.99

$

Usually ships in 2-12 days

0

0190-10

Ferris 5101935YP

FUSE, ATO 15 AMP

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

0190-20

Ferris 5102710YP

FUSE

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

0210

Ferris 5102677YP

GROMMET, 1-1/2" ID FOR 1/4" METAL

$7.49

$

Usually ships in 2-12 days

0

0220

Ferris 84008164

HARNESS, JUMPER, BRIGGS EFI, 16 PIN

$184.99

$

Usually ships in 2-12 days

0

0230

Ferris 5050927X16YP

WIRE LOOM

$4.99

$

Usually ships in 2-12 days

0

0240

Ferris 5104705YP

CLIP

$2.49

$

Usually ships in 2-12 days

0

0250

Ferris 5025179X6SM

SCREW - #10-24

$3.99

$

Usually ships in 2-12 days

0

0260

Ferris 5025271FS

NUT

$3.99

$

Usually ships in 2-12 days

0

0270

Ferris 84006408

MODULE, Throttle Control

$222.99

$

Usually ships in 2-12 days

0

0280

Ferris 5021766SM

RELAY, 12V, 40A

$24.99

$

Usually ships in 2-12 days

0

0290

Ferris 5023499SM

WASHER, #10 SAE

$3.49

$

Usually ships in 2-12 days

0

1000

Refer to: Seat Mount & Floor Group

$

$

Not available

1001

Refer to: Parking Brake Group

$

$

Not available

1002

Refer to: Instrument Control Panel Group

$

$

Not available

1003

Connects to Engine

$

$

Not available
