ISX 3300 (5902068) - Ferris ISX3300 Series 60" Zero-Turn Mower, 40hp Briggs & Stratton Parking Brake Group Parts Diagram

ISX3300 Series 60" Zero-Turn Mower, 40hp Briggs & Stratton

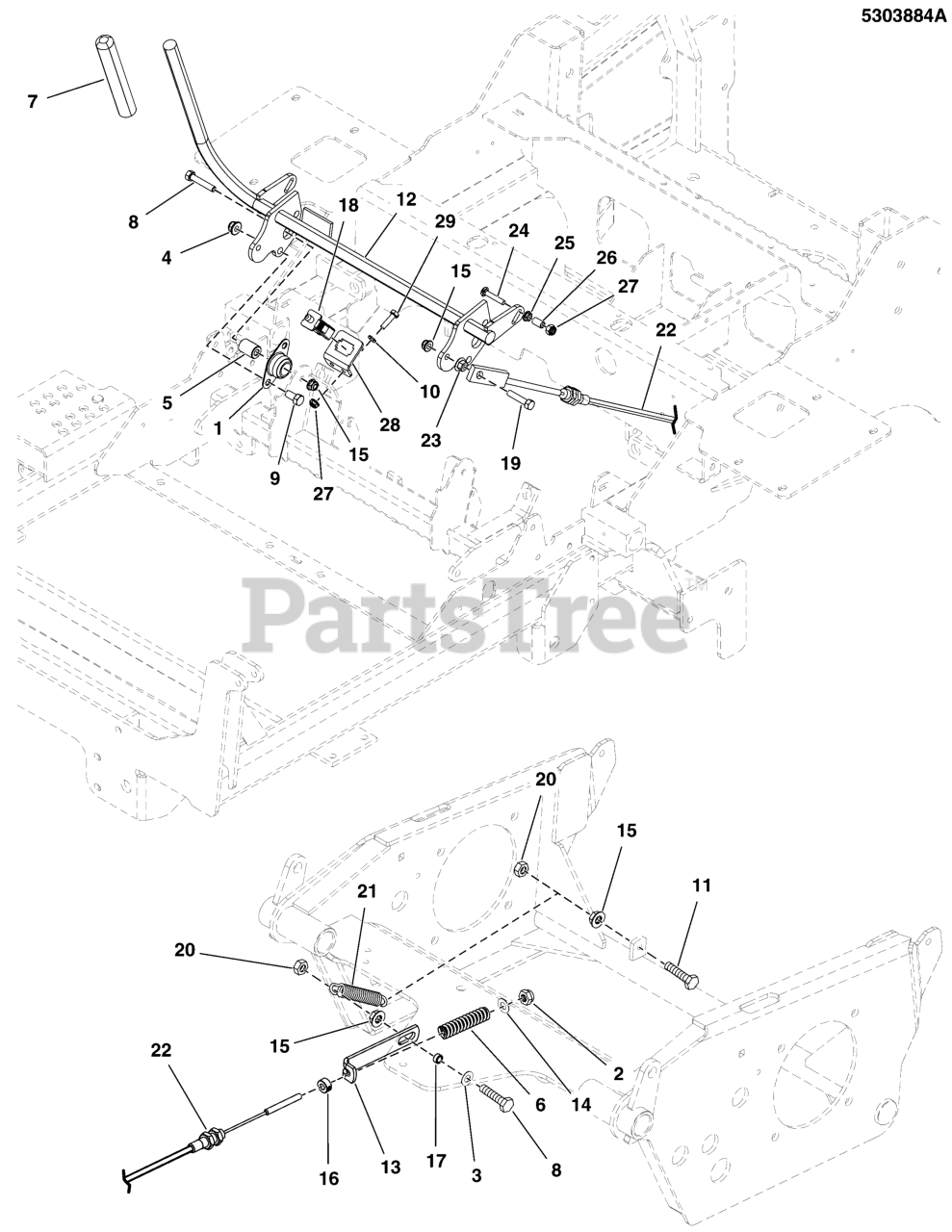

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5021098

BEARING, 3/4" FLANGED, BRONZE
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

2

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

6

Ferris 5100385

SPRING, COMP. 1/2 ID X .140 WIRE X 3.25
(Superseded to 5100385YP)

$9.49

$

Usually ships in 2-12 days

0

7

Ferris 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

$7.49

$

In Stock, only 1 left!

0

8

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 CZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

12

Ferris 5415423A

WELD, BRAKE SHAFT, LOCKOUT, 21" - BLK
(Superseded to 5415423AAFS)

$94.99

$

Usually ships in 2-12 days

0

13

Ferris 5411363A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

14

Ferris 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

17

Ferris 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

18

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

19

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 CZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

20

Ferris 80003675

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

21

Ferris 5103969

SPRING, EXTENSION, .521 X 4.12, BLACK
(Superseded to 5103969YP)

$14.99

$

Usually ships in 2-12 days

0

22

Ferris 5104235

CABLE, PARKING BRAKE, 32"
(Superseded to 5104235YP)

$101.99

$

Usually ships in 2-12 days

0

23

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

24

Ferris 80003564

BOLT, 1/4-20 X 1.500, GR5, SQ, ZINC/CLEA
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5041483

SPACER, .25 X .38 X .63, CZ
(Superseded to 5041483YP)

$5.49

$

Usually ships in 2-12 days

0

27

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

28

Ferris 5415932A

TAB, SWITCH PLATE, BOLT-ON - BLK

$7.49

$

Usually ships in 2-12 days

0

29

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0
