ISX 3300 (5901938) - Ferris ISX3300 Series 61" Zero-Turn Mower, 37hp Briggs & Stratton Wheel and Tire Group Parts Diagram

ISX3300 Series 61" Zero-Turn Mower, 37hp Briggs & Stratton

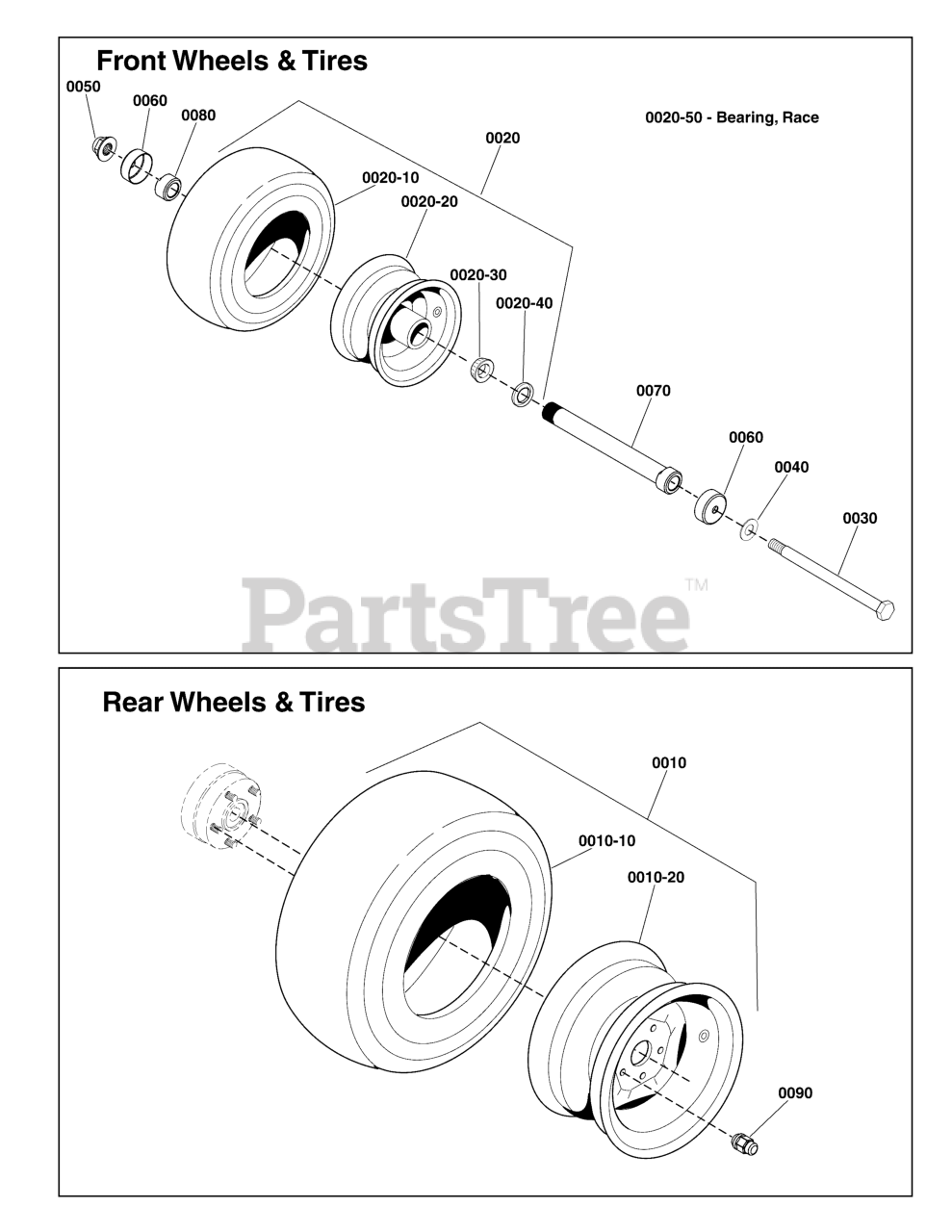

Wheel and Tire Group Parts Diagram

  • Title
0010

Ferris 5108784

TIRE/WHEEL 26X12.00-12 MULTI TRAC, BLACK
(Superseded to 5108784FS)

$397.99

$

Usually ships in 2-12 days

0

0010-10

Ferris 84003893

TIRE, 26 X 12 - 12

Note: (One per tire.)

$347.99

$

Usually ships in 2-12 days

0

0010-20

Ferris 5108784X1

WHEEL, 12 X 9.50, 5/4.5, VIKING BLACK

Note: (One per tire.)

$216.99

$

Usually ships in 2-12 days

0

0020

Ferris 5109035

TIRE ASM, 13 X 6.5 - 6, PNE / TB, BLK
(Superseded to 5109035FS)

$139.99

$

Usually ships in 2-12 days

0

0020-10

Ferris 5022577

TIRE, RUBBER ONLY

Note: (One per tire.)

$

$

Currently unavailable

0020-20

Ferris 5109035X1

WHEEL ASSEMBLY, for 13 x 6.5 x 6 Tire, Blk

Note: (One per tire.)

$

$

Currently unavailable

0020-30

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (Two per tire.)

$12.99

$

In Stock, Qty 20+

0

0020-40

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (Two per tire.)

$9.99

$

In Stock, Qty 20+

0

0020-50

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (Two per tire.)

$10.99

$

In Stock, Qty 20+

0

0030

Ferris 5025017X72

BOLT, 1/2-13 X 9" GD5 YZ
(Superseded to 5025017X72YP)

$11.99

$

In Stock, Qty 19

0

0040

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

0050

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0060

Ferris 5108803

DUST CAP, CASTER TIRE, BLACK
(Superseded to 5108803FS)

$4.99

$

Usually ships in 2-12 days

0

0070

Ferris 5103649

BEARING ADJUSTER, SPACER, 7.062 LG
(Superseded to 5103649YP)

$23.99

$

In Stock, Qty 18

0

0080

Ferris 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

$16.99

$

In Stock, Qty 13

0

0090

Ferris 5108802FS

NUT

Note: (Black Lug Nut)

$3.99

$

Usually ships in 2-12 days

0

0090

Ferris 5020601SM

NUT, 1/2-20, FOR WHEEL BOLT SILVER

Note: (Silver Lug Nut)

$3.49

$

In Stock, Qty 20+

0
