ISX 3300 (5901914) - Ferris ISX3300 Series Zero-Turn Mower, 37hp Briggs & Stratton Seat Mount and Floor Group Parts Diagram

ISX3300 Series Zero-Turn Mower, 37hp Briggs & Stratton

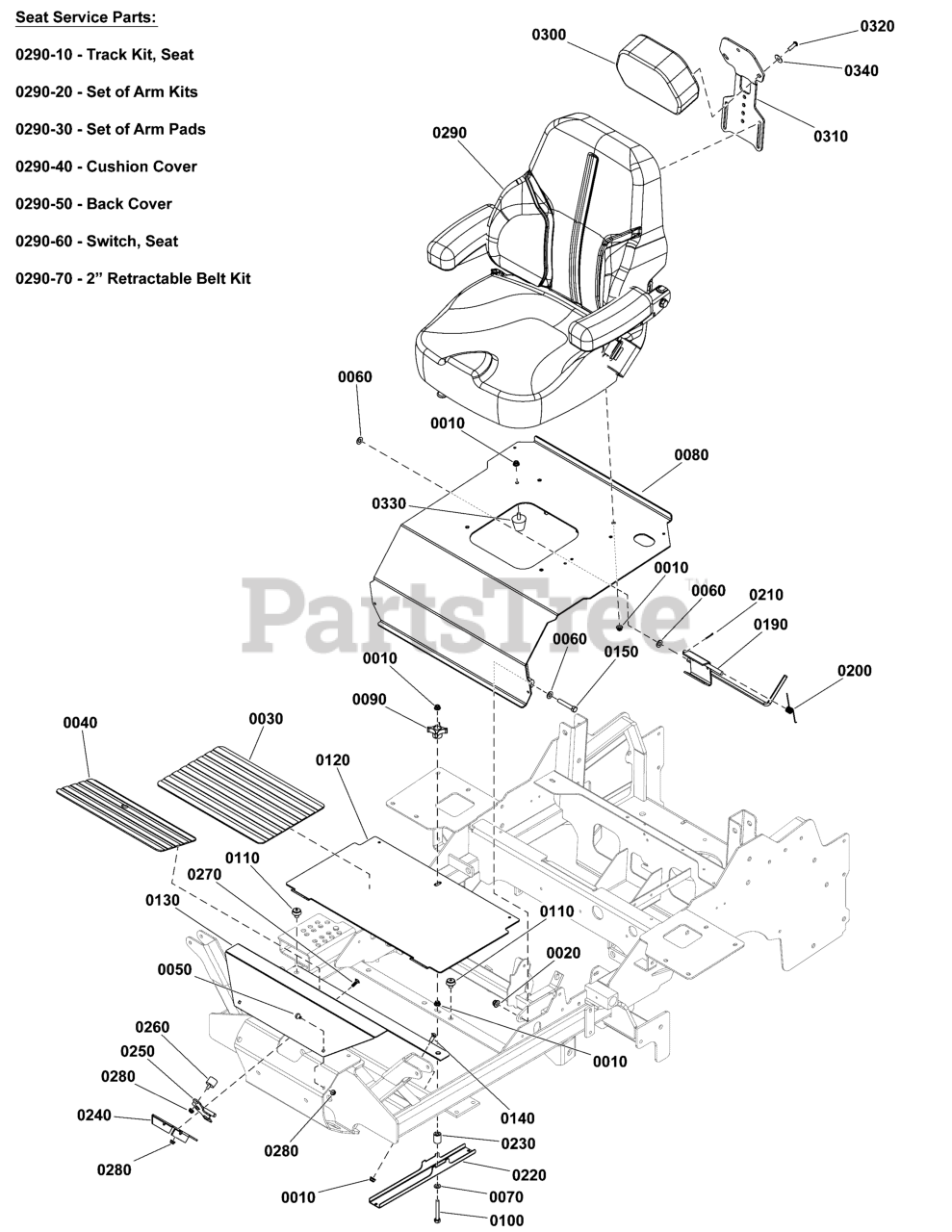

Seat Mount and Floor Group Parts Diagram

  • Title

0010

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

0020

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0030

Ferris 5101333YP

SAFETY WALK, FLOOR PL

$37.99

$

Usually ships in 2-12 days

0

0040

Ferris 5107580FS

WALK, SAFETY

$13.99

$

Usually ships in 2-12 days

0

0050

Ferris 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0060

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 703350

WASHER

$4.49

$

In Stock, only 1 left!

0

0080

Ferris 5601203

ASSM, SEAT PLATE W/ DECALS, IS3200-CEHYD

$398.99

$

Usually ships in 2-12 days

0

0090

Ferris 1670578SM

KNOB-INT THR .312-18

$13.99

$

Usually ships in 2-12 days

0

0100

Ferris 5025055X20FS

BOLT

$7.49

$

Usually ships in 2-12 days

0

0110

Ferris 197546GS

MOUNT-VIBRATION

$7.99

$

In Stock, only 2 left!

0

0120

Ferris 5412905BFS

PLATE, FLOOR

$103.99

$

Usually ships in 2-12 days

0

0130

Ferris 84007988

PLATE, Floor

$

$

Currently unavailable

0140

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 5

0

0150

Ferris 5025013X18SM

BOLT, 3/8-16 X 2-1/4"

$3.99

$

In Stock, only 4 left!

0

0190

Ferris 84002142

WELD, SEAT LATCH HOOK - BLK

$35.99

$

Usually ships in 2-12 days

0

0200

Ferris 84003202

SPRING, TORSION

$2.49

$

Usually ships in 2-12 days

0

0210

Ferris 703312

PIN, COTTER, 3/32X.75

$3.99

$

In Stock, Qty 20+

0

0220

Ferris 5418803BFS

PLATE, Channel

$

$

Currently unavailable

0230

Ferris 5045404SM

SPACER, .32 X .75 X 1.06

$7.49

$

Usually ships in 2-12 days

0

0240

Ferris 5419102BFS

MOUNT

$17.99

$

Usually ships in 2-12 days

0

0250

Ferris 5409963BFS

BRACKET

$19.99

$

Usually ships in 2-12 days

0

0260

Ferris 5022673SM

BUMPER, RUBBER 1/4-20

$18.99

$

In Stock, only 1 left!

0

0270

Ferris 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0280

Ferris 5025391FS

NUT

$3.99

$

In Stock, Qty 20+

0

0290

Ferris 84006078

SEAT

$1186.99

$

Usually ships in 2-12 days

0

0290-10

Ferris 5106318X1

4" SINGLE LOCKING TRACK KIT

Note: (SV)

$160.99

$

Usually ships in 2-12 days

0

0290-20

Ferris 5106325X2

SET OF ARM KITS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

0290-30

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

0290-40

Ferris 5106318X4

CUSHION COVER FOR E-DELUXE

Note: (SV)

$281.99

$

Usually ships in 2-12 days

0

0290-50

Ferris 5108195X1

MID BACK COVER - E-DELUXE

Note: (SV)

$192.99

$

Usually ships in 2-12 days

0

0290-60

Ferris 7023354YP

SWITCH, SEAT

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0290-70

Ferris 5106318X2

2" RETRACTABLE SEAT BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

0300

Ferris 5106645FS

SEAT ASSEMBLY

$101.99

$

Usually ships in 2-12 days

0

0310

Ferris 5418483AAFS

PLATE

$65.99

$

Usually ships in 2-12 days

0

0320

Ferris 84003203

SCREW, 5/16-18X1, BUT HD, BLK, W/PATCH

$2.99

$

Usually ships in 2-12 days

0

0330

Ferris 84003201

SUPPORT, RUBBER

$8.99

$

In Stock, only 3 left!

0

0340

Ferris 84001871

WASHER, FENDER, 1.00 OD X .315 ID X .055

$2.49

$

Usually ships in 2-12 days

0
