ISX 3300 (5901872) - Ferris ISX3300 Series 72" Zero-Turn Mower, 40hp Briggs & Stratton Rear Suspension Group Parts Diagram

ISX3300 Series 72" Zero-Turn Mower, 40hp Briggs & Stratton

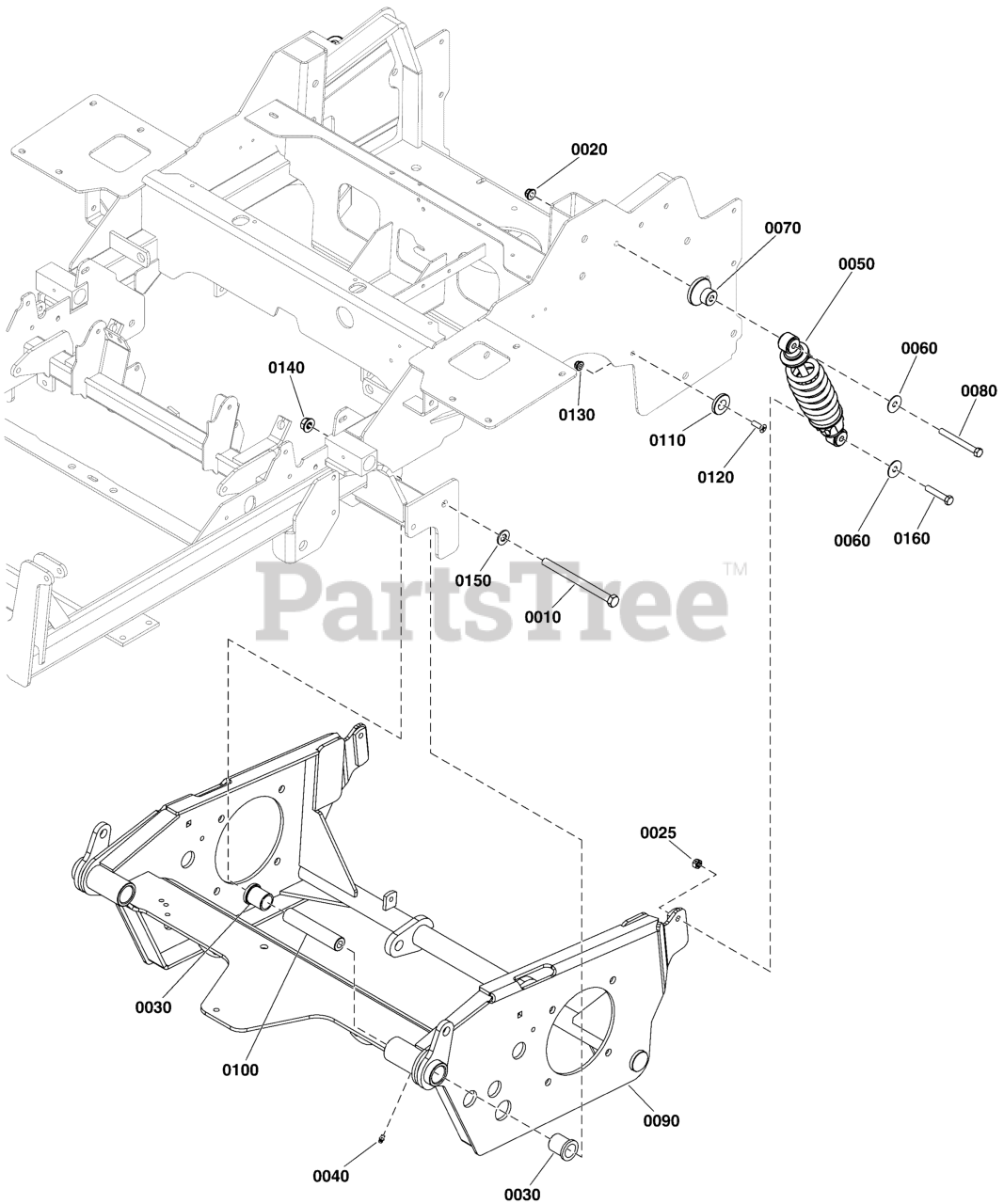

Rear Suspension Group Parts Diagram

  • Title
0010

Ferris 5025488X52

BOLT, 1/2-13 X 6-1/2" GD8 YZ
(Superseded to 5025488X52YP)

$8.49

$

Usually ships in 2-12 days

0

0020

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0025

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

0030

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

0040

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

0050

Ferris 5108022

SHOCK, SPRING ASSM
(Superseded to 5108022FS)

Note: -

$133.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

0070

Ferris 5104704

SPACER, .39 X 2.00 X 1.35, PM
(Superseded to 5104704YP)

$12.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

0090

Ferris 84007759

CRADLE, Suspension

$1852.99

$

Usually ships in 2-12 days

0

0100

Ferris 5100194

SPACER, .52 X 1.00 X 5.00
(Superseded to 5100194SM)

$22.99

$

Usually ships in 2-12 days

0

0110

Ferris 5102701

SPACER, .34 X 1.54 X .25 - UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

0120

Ferris 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

$3.99

$

Usually ships in 2-12 days

0

0130

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0150

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

0160

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0
