ISX 3300 (5901872) - Ferris ISX3300 Series 72" Zero-Turn Mower, 40hp Briggs & Stratton Main Frame and Front Suspension Group Parts Diagram

ISX3300 Series 72" Zero-Turn Mower, 40hp Briggs & Stratton

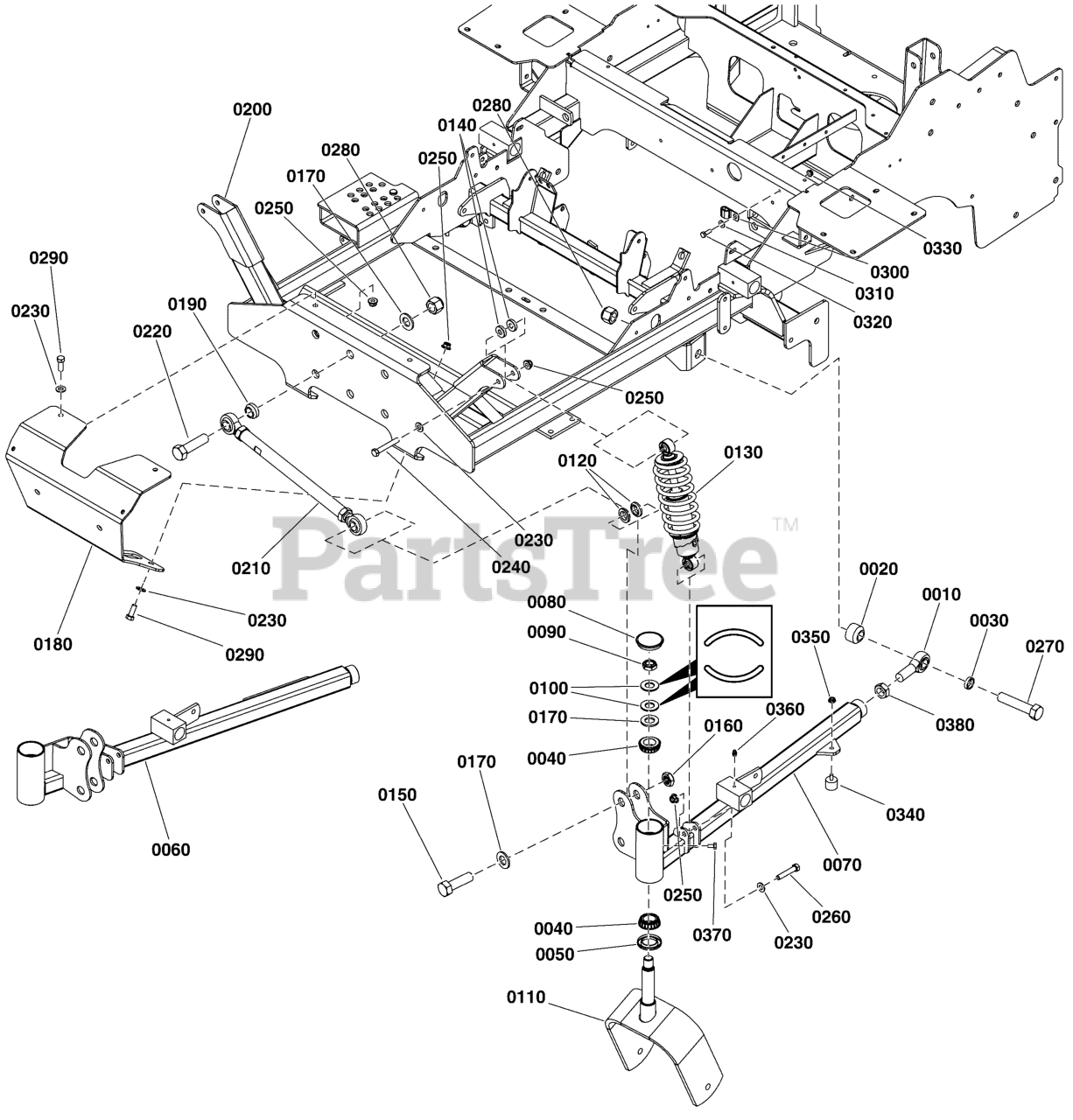

Main Frame and Front Suspension Group Parts Diagram

  • Title

0010

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

0020

Ferris 5046093

SPACER, .75 X 1.50 X 1.00, CZ
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

0030

Ferris 5047461

SPACER, .76 x 1.00 x .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0

0040

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

0050

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

0060

Ferris 5418824B

WELD, A-ARM, IS3300Z, RH - RED
(Superseded to 5418824BFS)

$331.99

$

Usually ships in 2-12 days

0

0070

Ferris 5419140B

WELD, A-ARM, 72. LH - RED
(Superseded to 5419140BFS)

$263.99

$

Usually ships in 2-12 days

0

0080

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

0090

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

0100

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

0110

Ferris 5419196B

WELD, CASTER YOKE - RED
(Superseded to 5419196BFS)

$198.99

$

Usually ships in 2-12 days

0

0120

Ferris 5108733

SPACER, .765 X 1.500 X .283, TPRD CZ

$

$

Currently unavailable

0130

Ferris 5108008

SHOCK, SPRING ASSM
(Superseded to 5108008FS)

$148.99

$

In Stock, only 1 left!

0

0140

Ferris 5108184

SPACER, .39 X 1.00 X .24, SHOCK, ISX
(Superseded to 84006562)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 5025265X20

BOLT, 3/4-16 X 2-1/2" YZ GD5
(Superseded to 5025265X20YP)

$10.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025679

NUT, THIN NYLON INSERT, 3/4-16 GR5
(Superseded to 5025679FS)

$2.99

$

Usually ships in 2-12 days

0

0170

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

0180

Ferris 5419629B

PLATE, FRONT MOUNT, ISX3300 - RED
(Superseded to 5419629BFS)

$91.99

$

Usually ships in 2-12 days

0

0190

Ferris 5108732

SPACER, .765 X 1.500 X .500, TPRD CZ
(Superseded to 5108732FS)

$11.99

$

Usually ships in 2-12 days

0

0200

WELD, MAIN FRAME, ISX3300Z - RED

$

$

Not available

0210

Ferris 5108560

CONTROL ARM, IX3300, PTFE
(Superseded to 5108790FS)

Note: (S/N: 4001527345 and below)

$105.99

$

Usually ships in 2-12 days

0

0210

Ferris 5108790

CONTROL ARM, 3/4 X 15.88, LOADER SLOT
(Superseded to 5108790FS)

Note: (S/N: 4001527346 and above)

$105.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025265X24

BOLT, 3/4-16 X 3" YZ GD5
(Superseded to 5025265X24SM)

$13.99

$

In Stock, only 2 left!

0

0230

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0240

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

0250

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0260

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0270

Ferris 5025265X28

BOLT, 3/4-16 X 3-1/2" YZ GD5
(Superseded to 5025265X28SM)

$15.99

$

Usually ships in 2-12 days

0

0280

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

0290

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0300

Ferris 5025430

CLAMP, 5/16", DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

0310

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0320

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0330

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0340

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

$18.99

$

In Stock, only 1 left!

0

0350

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0360

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

0370

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

0380

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0
