ISX 3300 (5901872) - Ferris ISX3300 Series 72" Zero-Turn Mower, 40hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

ISX3300 Series 72" Zero-Turn Mower, 40hp Briggs & Stratton

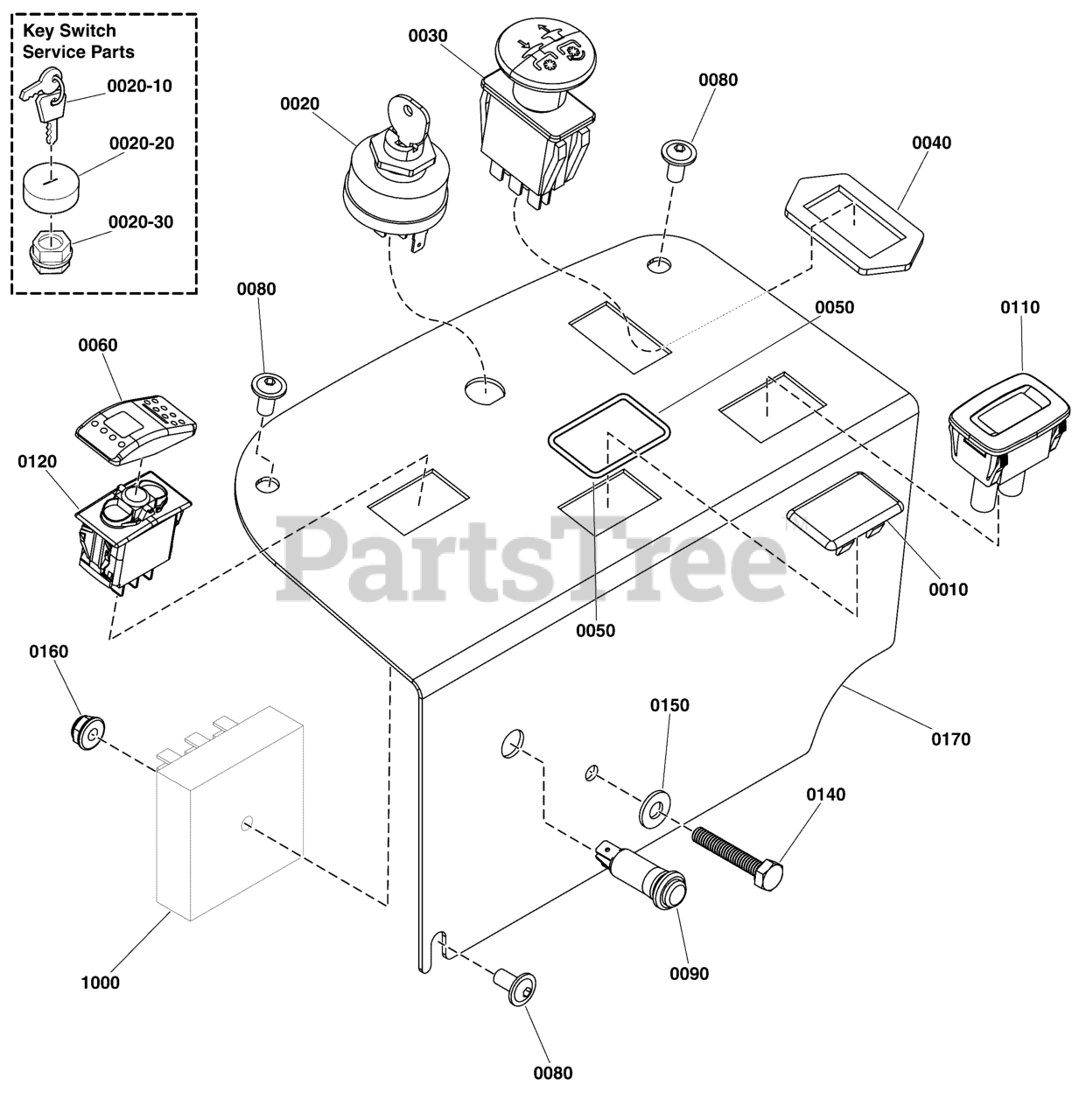

Instrument Control Panel Group Parts Diagram

  • Title

0010

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

0020

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

0020-10

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

0020-20

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

0020-30

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

0030

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

0040

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

0050

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5102219

ACTUATOR, ROCKER SWITCH - RED
(Superseded to 84006404)

$6.49

$

In Stock, only 1 left!

0

0080

Ferris 5106469

SCREW, FLANGE, ALLEN HD, 1/4-20X.5 S/S
(Superseded to 84002228)

$2.49

$

In Stock, Qty 15

0

0090

Ferris 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

$29.99

$

Usually ships in 2-12 days

0

0110

Ferris 84008510

HOURMETER

$33.99

$

In Stock, Qty 10

0

0120

Ferris 5102218

BODY, ROCKER SWITCH
(Superseded to 84006405)

$30.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

0150

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0160

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0170

Ferris 5417122A

PANEL, CONTROL, IS2100Z, KAWI EFI - BLK
(Superseded to 84006406)

$43.99

$

Usually ships in 2-12 days

0
