ISX 2200 (5902092) - Ferris ISX2200 Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Motion Control Group - Control System Parts Diagram

ISX2200 Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

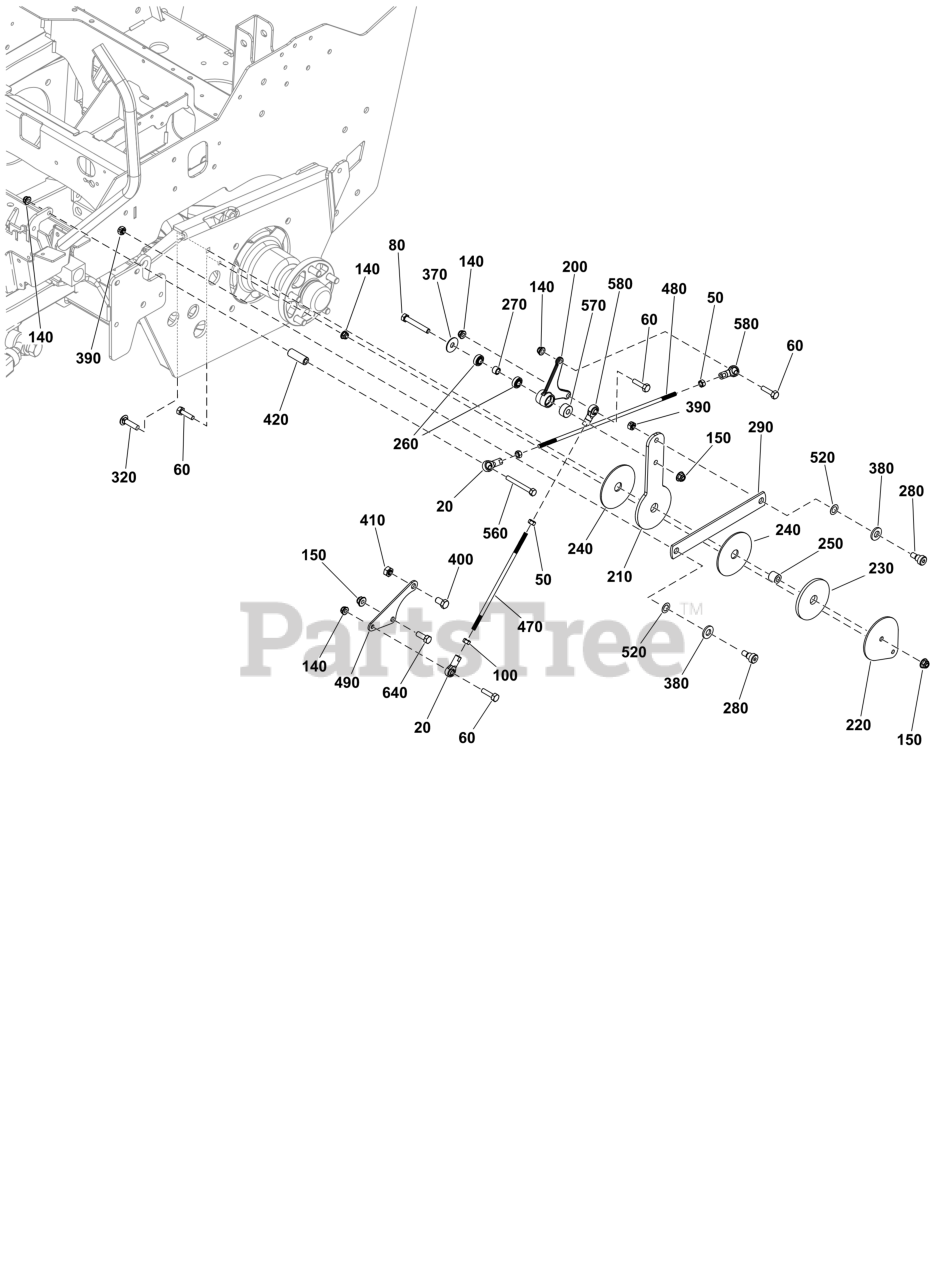

Motion Control Group - Control System Parts Diagram

  • Title

20

Ferris 5104493YP

BALL JOINT 5/16-24 RH

$18.99

$

In Stock, only 1 left!

0

50

Ferris 5023212SM

NUT, 5/16-24 HEX, LH

$3.49

$

Usually ships in 2-12 days

0

60

Ferris 5025055X10YP

BOLT, 5/16-18 X 1-1/4

$3.49

$

In Stock, only 1 left!

0

80

Ferris 84007037

BOLT

$2.99

$

In Stock, only 3 left!

0

100

Ferris 5025033FS

NUT

$3.49

$

Usually ships in 2-12 days

0

140

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

150

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

200

Ferris 5103718YP

PIVOT, CONTROL SYSTEM

$23.99

$

Usually ships in 2-12 days

0

210

Ferris 5410268YP

PLATE, CTRL SYST ARM

$25.99

$

Usually ships in 2-12 days

0

220

Ferris 5410271AYP

PLATE, CTRL SYSTEM LK

$8.49

$

Usually ships in 2-12 days

0

230

Ferris 5103704YP

PAD, .77 X 3.50 X .25

$50.99

$

Usually ships in 2-12 days

0

240

Ferris 5103672YP

PAD, CONTROL SYSTEM

$6.49

$

Usually ships in 2-12 days

0

250

Ferris 5103705YP

SPACER, .39X.75X.69

$7.49

$

Usually ships in 2-12 days

0

260

Ferris 5102003YP

BEARING, .375ID

$9.49

$

Usually ships in 2-12 days

0

270

Ferris 5103676YP

SPACER, .39X.55X.38

$6.49

$

Usually ships in 2-12 days

0

280

Ferris 5025356SM

BOLT, 3/8-16 X 3/8",

$6.99

$

In Stock, Qty 6

0

290

Ferris 5411375AYP

LINK, CONTROL SYSTEM ARM, IS2100 - BLK

$10.99

$

Usually ships in 2-12 days

0

320

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

370

Ferris 5025165SM

WASHER, 3/8" FENDER

$3.99

$

In Stock, only 2 left!

0

380

Ferris 5025440SM

WASHER, 1/2" YELLOW

$4.49

$

In Stock, only 1 left!

0

390

Ferris 5025100SM

NUT, 3/8-16 HEX SIDE

$3.49

$

In Stock, Qty 20+

0

400

Ferris 5025015X6SM

BOLT, 7/16-14

$3.99

$

In Stock, only 1 left!

0

410

Ferris 5025044SM

NUT, 7/16-14 HEX

$4.49

$

In Stock, only 1 left!

0

420

Ferris 84008020

SPACER

$

$

Currently unavailable

470

Ferris 5104053YP

ROD, 5/16-24

$13.99

$

Usually ships in 2-12 days

0

480

Ferris 5102255YP

ROD, HYDRO LINKAGE

$8.99

$

Usually ships in 2-12 days

0

490

Ferris 5411301AYP

PLATE, CONTROL MOUNT

$5.99

$

In Stock, only 1 left!

0

520

Ferris 5103784YP

WAVE WASHER

$11.99

$

Usually ships in 2-12 days

0

560

Ferris 5025011X22YP

BOLT, 5/16-18 X 2-3/4

$3.49

$

Usually ships in 2-12 days

0

570

Ferris 5046860SM

SPACER

$6.49

$

In Stock, only 1 left!

0

580

Ferris 5104494YP

BALL JOINT 5/16-24 LH

$18.99

$

Usually ships in 2-12 days

0

640

Ferris 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, Qty 6

0
