ISX 2200 (5902088) - Ferris ISX2200 Series 52" Zero-Turn Mower, 28hp Briggs & Stratton 52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

ISX2200 Series 52" Zero-Turn Mower, 28hp Briggs & Stratton

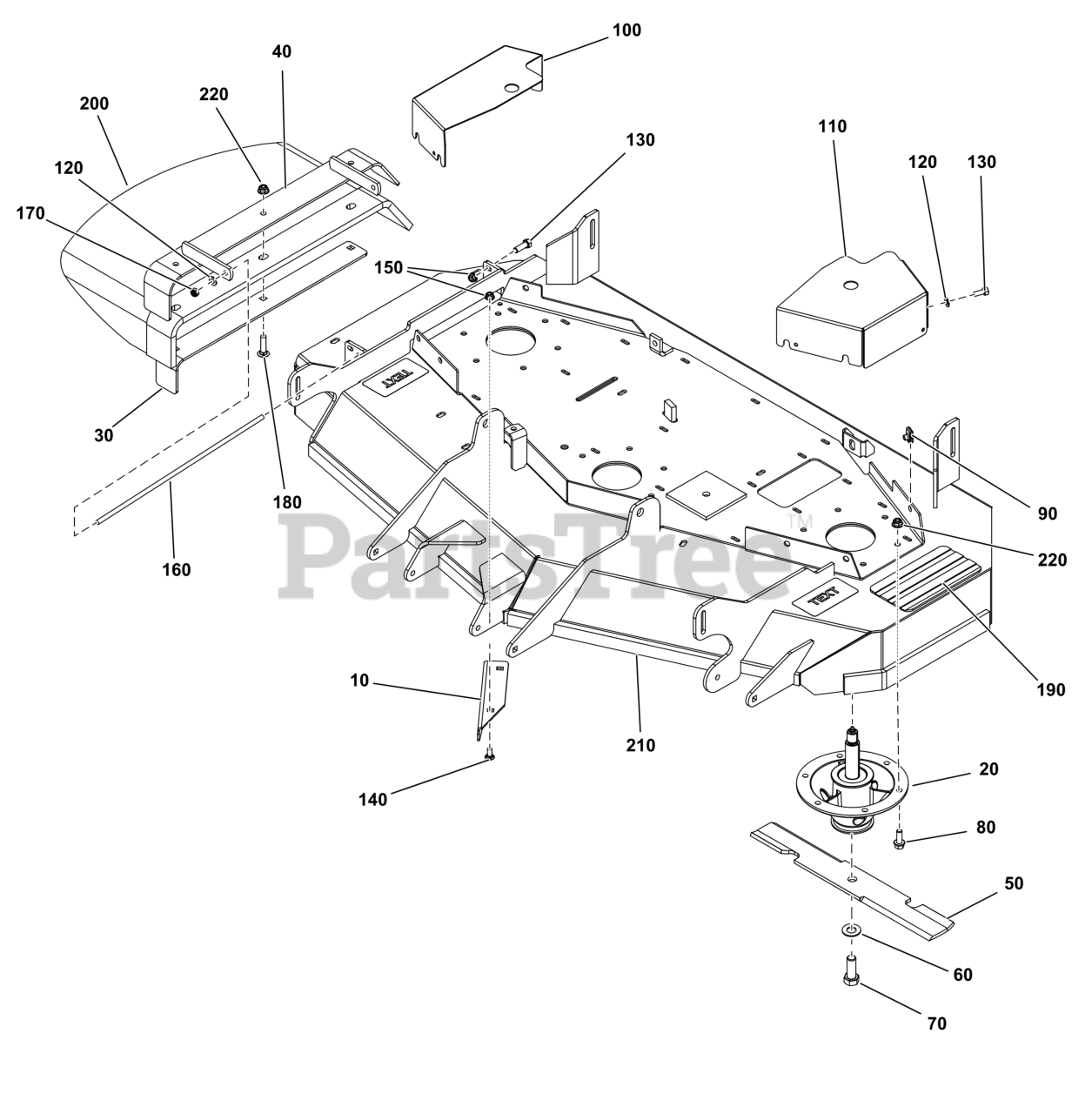

52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

10

Ferris 84003127

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

20

Ferris 5104744YP

ASSEMBLY-SPINDLE

$198.99

$

In Stock, only 4 left!

0

30

Ferris 5413398AYP

SUPPORT

$32.99

$

Usually ships in 2-12 days

0

40

Ferris 5413400AYP

KIT-MOUNTING PLATE, CHUTE ROTATION

$66.99

$

Usually ships in 2-12 days

0

50

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

Note: (Set of 3 Blades)

$

$

Currently unavailable

60

Ferris 5025477SM

WASHER, 5/8" YZ

$3.99

$

In Stock, Qty 11

0

70

Ferris 770136

BOLT

$4.49

$

In Stock, Qty 20+

0

80

Ferris 5025390X8FS

BOLT

$3.49

$

Usually ships in 2-12 days

0

90

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, only 2 left!

0

100

Ferris 5418311BFS

GUARD, PULLEY

$32.99

$

Usually ships in 2-12 days

0

110

Ferris 5418310BFS

GUARD, PULLEY

$34.99

$

Usually ships in 2-12 days

0

120

Ferris 703350

WASHER

$4.49

$

In Stock, only 3 left!

0

130

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 4 left!

0

140

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 5

0

150

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

160

Ferris 5061300FS

ROD

$11.99

$

Usually ships in 2-12 days

0

170

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, Qty 11

0

180

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

190

Ferris 5101004SM

SAFETY WALK

$9.49

$

In Stock, only 1 left!

0

200

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

210

Ferris 5601512

DECK SHELL W/ DECALS, 2200-52 (5422933B)

$

$

Currently unavailable

220

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0
