ISX 2200 (5902079) - Ferris ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki 60" Mower Deck Group - Rollers Parts Diagram

ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki

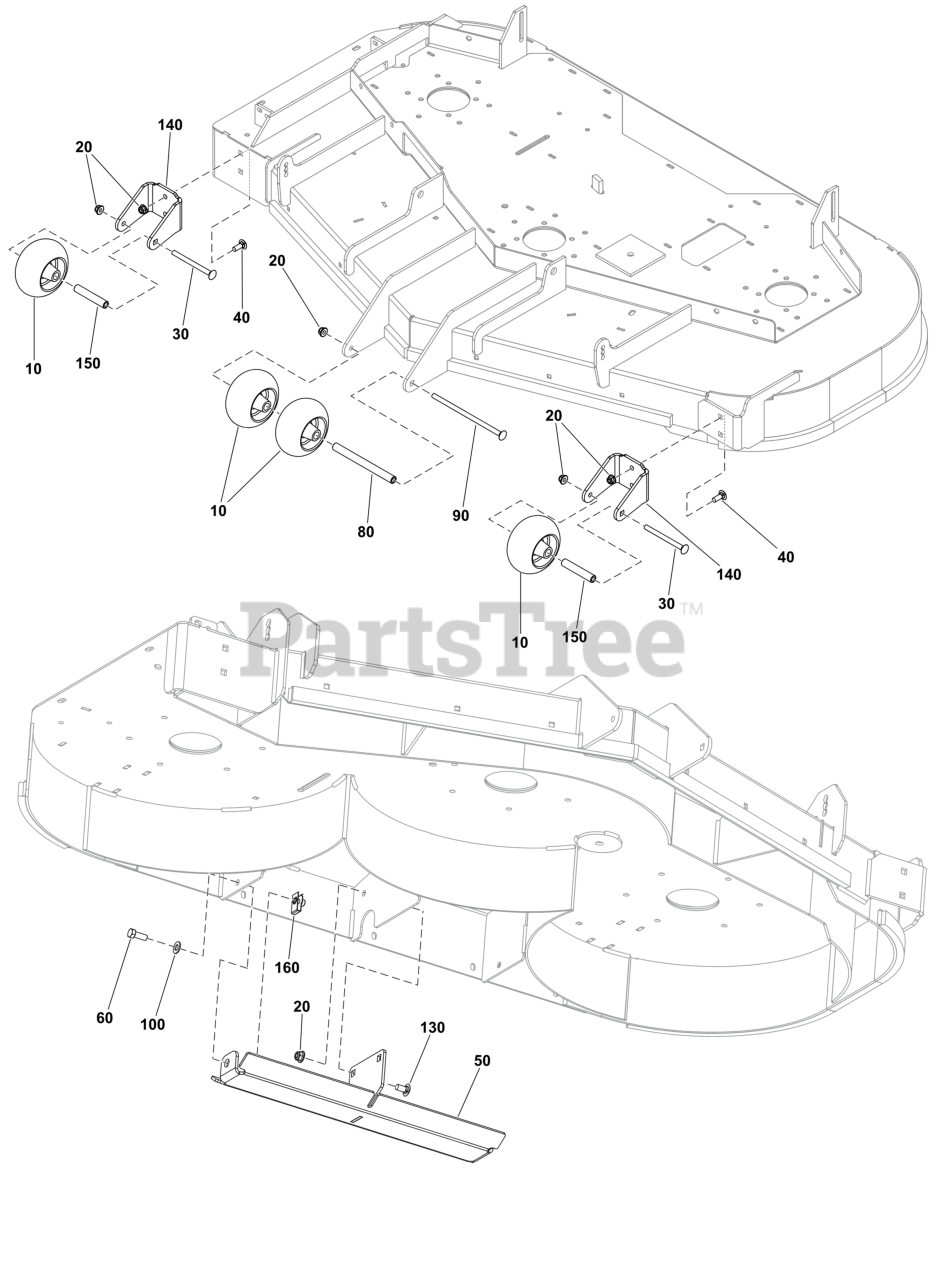

60" Mower Deck Group - Rollers Parts Diagram

  • Title

10

Ferris 5105521FS

WHEEL

$13.99

$

In Stock, Qty 20+

0

20

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

30

Ferris 5025146X36YP

BOLT

$4.49

$

In Stock, Qty 5

0

40

Ferris 703814

BOLT, RD HD, 3/8-16X1

$4.49

$

In Stock, only 4 left!

0

50

Ferris 84008092

PLATE, Skid

$

$

Currently unavailable

60

Ferris 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, Qty 6

0

80

Ferris 84007855

SPACER

$21.99

$

Usually ships in 2-12 days

0

90

Ferris 84007856

BOLT, Carriage 3/8-16 X 8

$27.99

$

Usually ships in 2-12 days

0

100

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

130

Ferris 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, Qty 20+

0

140

Ferris 84007853

MOUNT, Roller

$62.99

$

Usually ships in 2-12 days

0

150

Ferris 5105554YP

SPACER

$5.49

$

In Stock, Qty 8

0

160

Ferris 5022649FS

CLIP

$3.49

$

Usually ships in 2-12 days

0
