ISX2200 Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

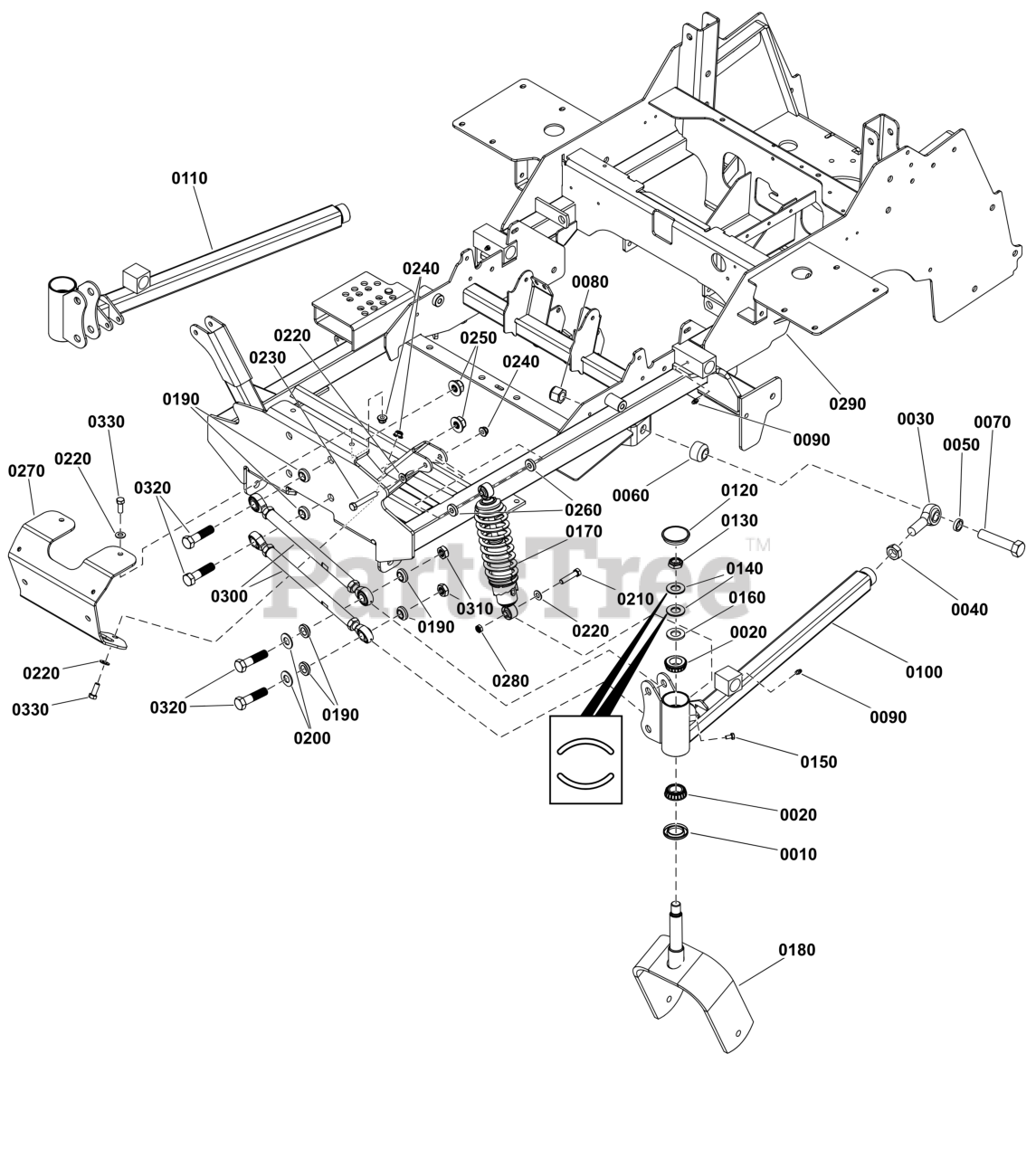

Main Frame and Front Suspension Group Parts Diagram

  • Title

0010

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 8

0

0020

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

0030

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

0040

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

0050

Ferris 5047461

SPACER, .76 x 1.00 x .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0

0060

Ferris 5046093

SPACER, .75 X 1.50 X 1.00, CZ
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

0070

Ferris 5025265X28

BOLT, 3/4-16 X 3-1/2" YZ GD5
(Superseded to 5025265X28SM)

Note: (Torque A-Arm Mount Bolts to 165-170 ft-lbs (224-230 Nm)

$15.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 2 left!

0

0090

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

0100

Ferris 5419145B

WELD, FRONT A-ARM, LH, ISX2200 - RED
(Superseded to 5419145BFS)

$266.99

$

Usually ships in 2-12 days

0

0110

Ferris 5419144B

WELD, FRONT A-ARM, RH, ISX2200 - RED
(Superseded to 5419144BFS)

$266.99

$

Usually ships in 2-12 days

0

0120

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

0130

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

0140

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

0150

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 1 left!

0

0170

Ferris 5107851

SHOCK, FRONT
(Superseded to 5107851FS)

$151.99

$

In Stock, only 2 left!

0

0180

Ferris 5419196B

WELD, CASTER YOKE - RED
(Superseded to 5419196BFS)

$198.99

$

Usually ships in 2-12 days

0

0190

Ferris 5108731

SPACER, .640 X 1.13 X .345, TPRD CZ

$

$

Currently unavailable

0200

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 8

0

0210

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 4 left!

0

0240

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0250

Ferris 5025403

NUT, 5/8-11 HEX NYLOCK FLANGE
(Superseded to 5025403YP)

$6.99

$

In Stock, Qty 6

0

0260

Ferris 5108184

SPACER, .39 X 1.00 X .24, SHOCK, ISX
(Superseded to 84006562)

$3.49

$

Usually ships in 2-12 days

0

0270

Ferris 5419630B

PLATE, FRONT MOUNT, ISX2200 - RED
(Superseded to 5419630BFS)

$61.99

$

Usually ships in 2-12 days

0

0280

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0290

WELD, MAIN FRAME, ISX2200 - RED

Note: (Refer to Note: *)

$

$

Not available

0300

Ferris 5108559

CONTROL ARM, ISX2200, PTFE
(Superseded to 5108789FS)

Note: (S/N: 4001643089 and below)

$79.99

$

In Stock, only 2 left!

0

0300

Ferris 5108789

CONTROL ARM, 5/8 X 13.88, LOADER SLOT
(Superseded to 5108789FS)

Note: (S/N: 4001643090 and above)

$79.99

$

In Stock, only 2 left!

0

0310

Ferris 80026832

NUT-HEX FLANGE 5/18-11 TWO WAY LOCK ZC/CL
(Superseded to 84003031)

$3.49

$

Usually ships in 2-12 days

0

0320

Ferris 5025019X20

BOLT, HEX, 5/8-11 X 2-1/2, GD5, CZ
(Superseded to 5025019X20YP)

Note: (Torque front control arm bolts to 150-155 ft-lbs (203-210 Nm))

$7.99

$

Usually ships in 2-12 days

0

0330

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

1000

Ferris 5020883

CUP, BEARING (SV)

Note: (Not illustrated)

$8.99

$

Usually ships in 2-12 days

0
