ISX 2200 (5902028) - Ferris ISX2200 Series 61" Zero-Turn Mower, 26hp Kawasaki Rear Bumper and ROPS Group Parts Diagram

ISX2200 Series 61" Zero-Turn Mower, 26hp Kawasaki

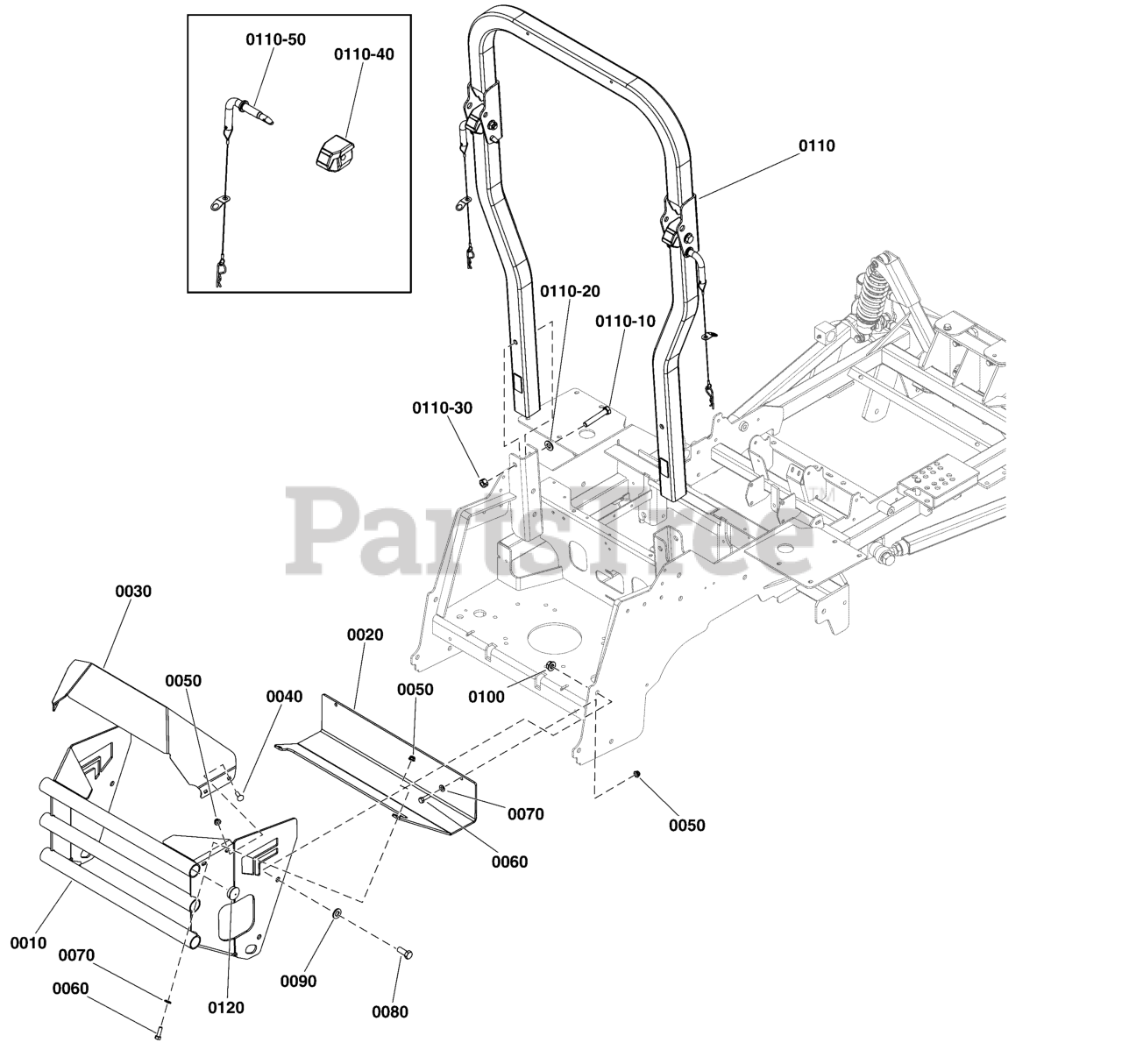

Rear Bumper and ROPS Group Parts Diagram

  • Title
0010

USE 5109537B - WELD, BUMPER

Note: (S/N: 4001662490 & Below)(Refer to Note: ***)

$

$

Not available

0010

Ferris 84008679

BUMPER, Rear

Note: (S/N: 4001662491 & Above)

$540.99

$

Usually ships in 2-12 days

0

0020

USE 5109538AA - PLATE, HEAT SHIELD

Note: (S/N: 4001662490 & Below)(Refer to Note: ***)

$

$

Not available

0020

Ferris 5109538AA

PLATE, HEAT SHIELD, ISX2200 - BLK

Note: (S/N: 4001662491 & Above)(Refer to Note: **)

$

$

Currently unavailable

0030

Ferris 5108377B

PLATE, ENG GUARD, ISX2200 - RED
(Superseded to 5108377BFS)

$73.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0050

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0070

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0080

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0100

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0110

ROPS, ISX2200 , RED

Note: (Refer to Note: *)

$

$

Not available

0110-10

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

0110-20

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0110-30

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

0110-40

Ferris 5108027

BLOCK, ROPS
(Superseded to 5108027FS)

$20.99

$

Usually ships in 2-12 days

0

0110-50

Ferris 5108350

HINGE PIN ASSEMBLY
(Superseded to 5108350FS)

$27.99

$

In Stock, only 2 left!

0

0120

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0
