ISX 2200 (5901993) - Ferris ISX2200 Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Guarding Group Parts Diagram

ISX2200 Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

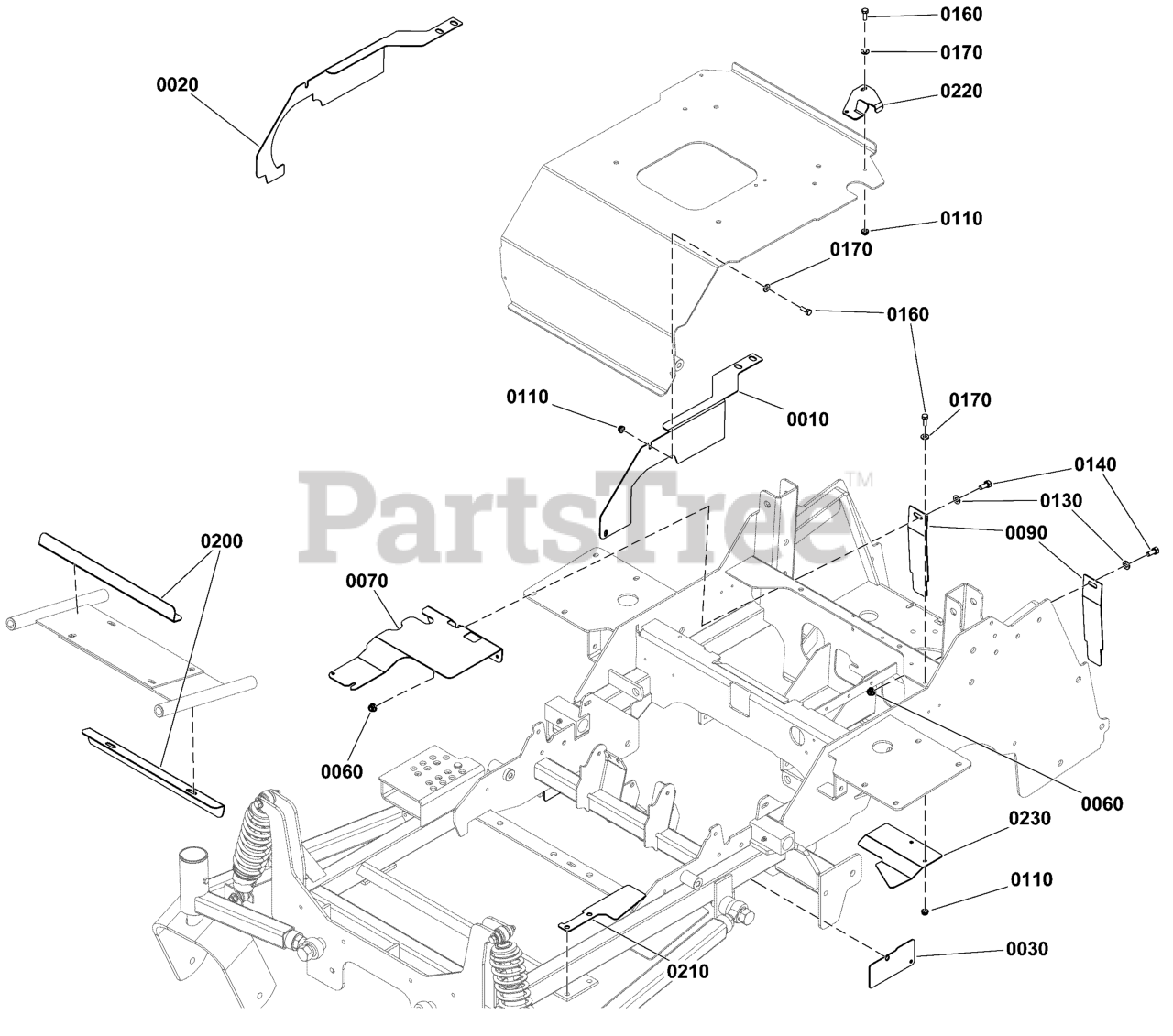

Guarding Group Parts Diagram

  • Title

0010

Ferris 84008526

PLATE, Guard, Right

$

$

Currently unavailable

0020

Ferris 84008527

PLATE, Guard, Left

$

$

Currently unavailable

0030

Ferris 5416386B

PLATE, CRADLE GUARD, CE - RED
(Superseded to 5416386BFS)

$6.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 84008528

COVER, Fan

$

$

Currently unavailable

0090

Ferris 5414954AA

PLATE, COVER, TRANSMISSION - BLK
(Superseded to 5414954AAFS)

$7.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0130

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0140

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0160

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0170

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0200

Ferris 5414467AA

PLATE, GUARD, PULLER BAR,IS2600Z EU, BLK
(Superseded to 5414467AAFS)

$9.49

$

Usually ships in 2-12 days

0

0210

Ferris 5413453B

PLATE, DECK SHIELD, FRAME - LH - RED
(Superseded to 5413453BFS)

$7.49

$

Usually ships in 2-12 days

0

0220

Ferris 84008529

LATCH

$

$

Currently unavailable

0230

Ferris 84008530

SHIELD, Debris

$

$

Currently unavailable
