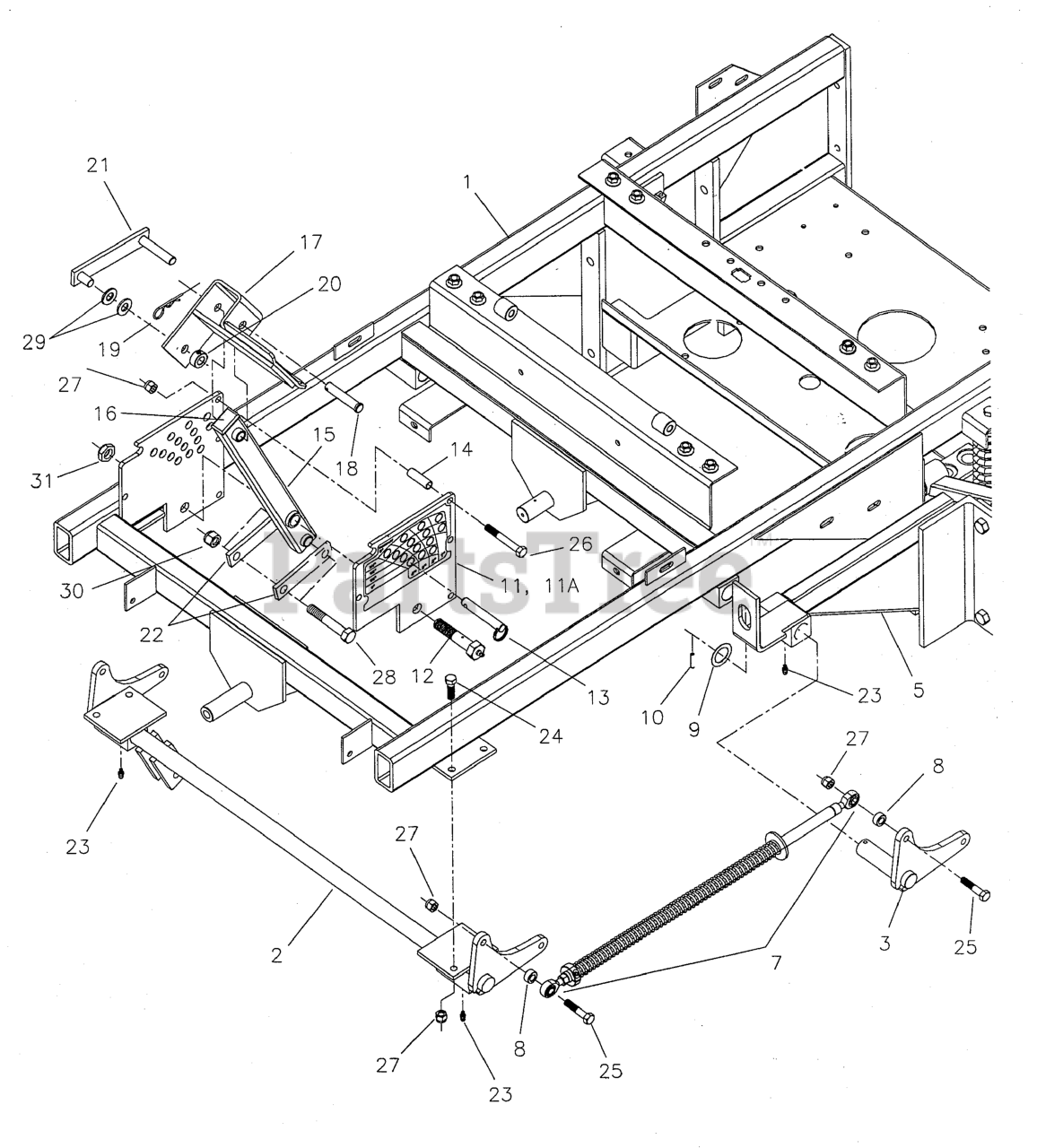

IS Z - Ferris ISZ Series Zero-Turn Mower, 22hp Kohler Deck Lift Group Parts Diagram

ISZ Series Zero-Turn Mower, 22hp Kohler

Deck Lift Group Parts Diagram

  • Title

1

FRAME, I.S. Main

$

$

Not available

2

Ferris 5045257B

SHAFT, Front Deck Lift

$

$

Currently unavailable

3

Ferris 5044927B

LIFT PIVOT, Left

$

$

Currently unavailable

4

Ferris 5044928B

LIFT PIVOT, Right

Note: (Not Shown)

$58.99

$

Usually ships in 2-12 days

0

5

Ferris 5045216B

REAR DECK LIFT FRAME - LH

$227.99

$

Usually ships in 2-12 days

0

6

Ferris 5045217B

REAR DECK LIFT FRAME - RH

Note: (Not Shown)

$227.99

$

Usually ships in 2-12 days

0

7

Ferris 5060041

DECK LIFT SPRING ROD ASSEMBLY

$

$

Currently unavailable

8

Ferris 5044933

SPACER, .39 x .75 x .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

9

Ferris 5021253

SHIM

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 2816001

PIN, Roll, 3/16 x 1
(Superseded to 2816001SM)

$4.49

$

In Stock, Qty 11

0

11

Ferris 5060029

LIFT PLATE ASSEMBLY

$

$

Currently unavailable

11

Ferris 5022063

DECAL, Deck Height
(Superseded to 5022063SM)

$49.99

$

Usually ships in 2-12 days

0

11A

Ferris 5060085

ISZ Lift Plate Assembly

Note: (S/N: 1220 & above)

$

$

Currently unavailable

11A

Ferris 5022063

DECAL, Deck Height
(Superseded to 5022063SM)

$49.99

$

Usually ships in 2-12 days

0

12

Ferris 5044993

LIFT PIVOT BOLT

$32.99

$

Usually ships in 2-12 days

0

13

Ferris 5022045

PIN, 1/2 x 3
(Superseded to 5022045SM)

$14.99

$

Usually ships in 2-12 days

0

14

Ferris 5044992

SPACER, .38 x .50 x 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

15

Ferris 5044987B

ARM, Deck Lift Pivot

$46.99

$

Usually ships in 2-12 days

0

16

Ferris 5022097

CAP

Note: (S/N: 101 - 1219)

$2.99

$

Usually ships in 2-12 days

0

17

Ferris 5060014

FOOT PEDAL ASSEMBLY
(Superseded to 5045058B)

$98.99

$

Usually ships in 2-12 days

0

17

Ferris 5044875

PEDAL SAFETY WALK
(Superseded to 5101008SM)

$7.49

$

Usually ships in 2-12 days

0

18

Ferris 5022044

PIN, Clevis, 1/2 x 2-1/2
(Superseded to 5022044SM)

$4.49

$

In Stock, only 1 left!

0

19

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5010580

COLLAR, 1/2" Set
(Superseded to 5010580FS)

$15.99

$

Usually ships in 2-12 days

0

21

Ferris 5044999B

DECK LIFT LOCK

$

$

Not available

22

Ferris 5044994B

DECK LIFT LINK

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5021728

GREASE FITTING
(Superseded to 5021728FS)

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

24

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

25

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

26

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

27

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

28

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

29

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

30

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

31

Ferris 5025282

NUT, 5/8-11 Hex Jam Nylon Lock
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days
