IS Z (5901082) - Ferris ISZ Series 61" Zero-Turn Mower, 23hp Kawasaki (SN: 2269 & Above) Wheels & Tires Group Parts Diagram

ISZ Series 61" Zero-Turn Mower, 23hp Kawasaki

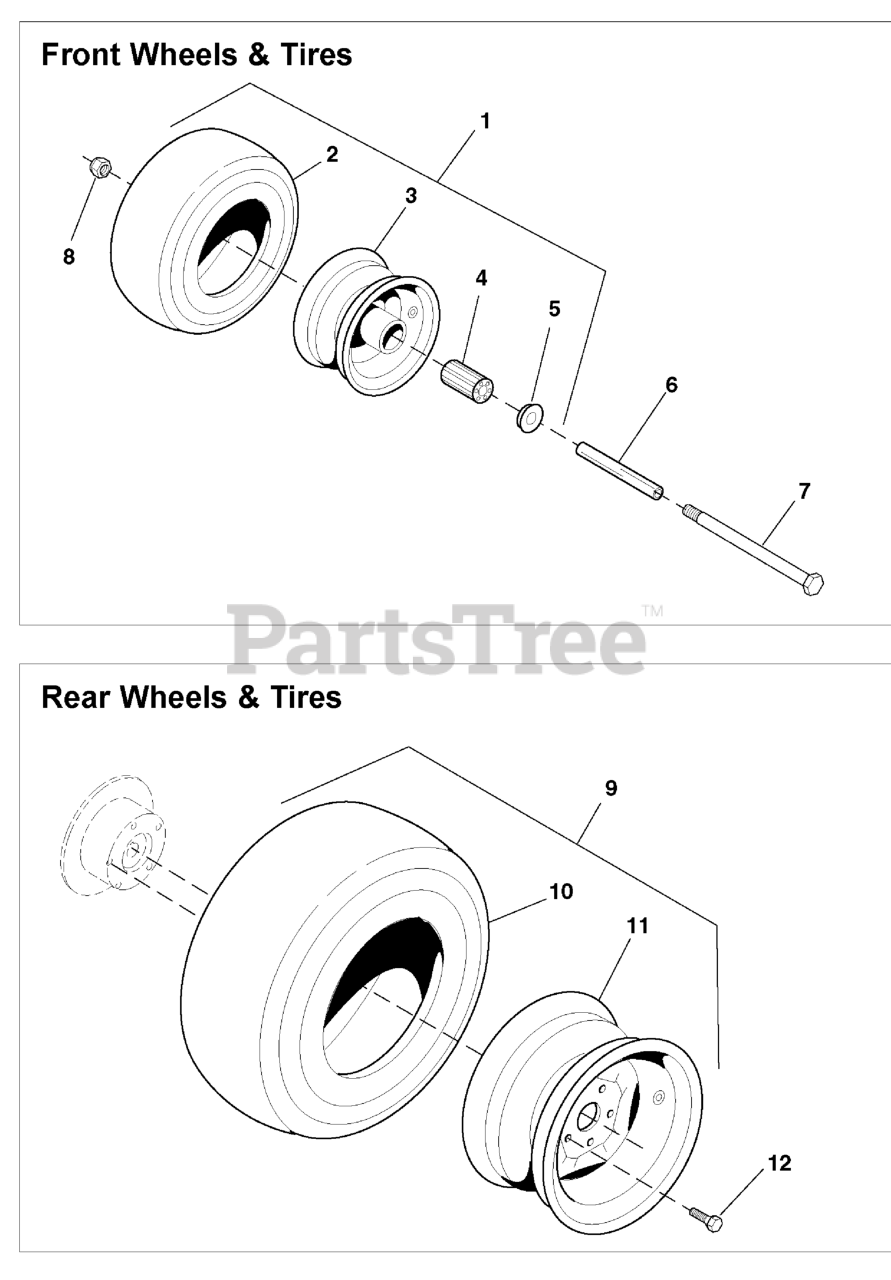

Wheels & Tires Group Parts Diagram

  • Title

1

Ferris 5022029

WHEEL & TIRE ASSEMBLY, 13 x 5.0 x 6, Complete
(Superseded to 5022631SSM)

Note: (Includes Ref No. 2 - 5)

$168.99

$

Usually ships in 2-12 days

0

2

Ferris 5022029X1

TIRE, Front, 13 x 5.0 x 6

$112.99

$

Usually ships in 2-12 days

0

3

Ferris 5022029X2

WHEEL ASSEMBLY, for 13 x 5.0 x 6 Tires, Complete

Note: (Includes Ref No. 4 & 5)

$

$

Currently unavailable

4

Ferris 5021042

BEARING, Roller

Note: (2 per tire)

$

$

Currently unavailable

5

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

6

Ferris 5022100

SHAFT, Caster Axle

$14.99

$

Usually ships in 2-12 days

0

7

Ferris 5025017X60

BOLT, 1/2-13 x 7-1/2
(Superseded to 5025488X60FS)

$13.99

$

Usually ships in 2-12 days

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5022396

WHEEL & TIRE ASSEMBLY, 23 x 10.5 x 12, Complete

Note: (Includes Ref No. 10 & 11, ISZKAV23/61 & ISZ25K/61 only)

$

$

Not available

9

Ferris 5022317

WHEEL & TIRE ASSEMBLY, 23 x 8.5 x 12, Complete

Note: (Includes Ref 10 & 11 - ISZKAV23/52 & ISZ25K/52 only)

$

$

Currently unavailable

10

Ferris 5022396X1

TIRE, Rear, 23 x 10.5 x 12
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

10

Ferris 5022317X1

TIRE, Rear, 23 x 8.5 x 12

$

$

Currently unavailable

11

Ferris 5022396X2

WHEEL ASSEMBLY, for 23 x 10.5 x 12 Tires

$179.99

$

Usually ships in 2-12 days

0

11

Ferris 5022317X2

WHEEL ASSEMBLY, for 23 x 8.5 x 12 Tires

$

$

Currently unavailable

12

Ferris 5022215

WHEEL LUG, 1/2 x 1-5/8
(Superseded to 5022215SM)

$9.99

$

Usually ships in 2-12 days

0
