IS Z (5901081) - Ferris ISZ Series 52" Zero-Turn Mower, 23hp Kawasaki (SN: 2269 & Above) Seat & Mount Group Parts Diagram

ISZ Series 52" Zero-Turn Mower, 23hp Kawasaki

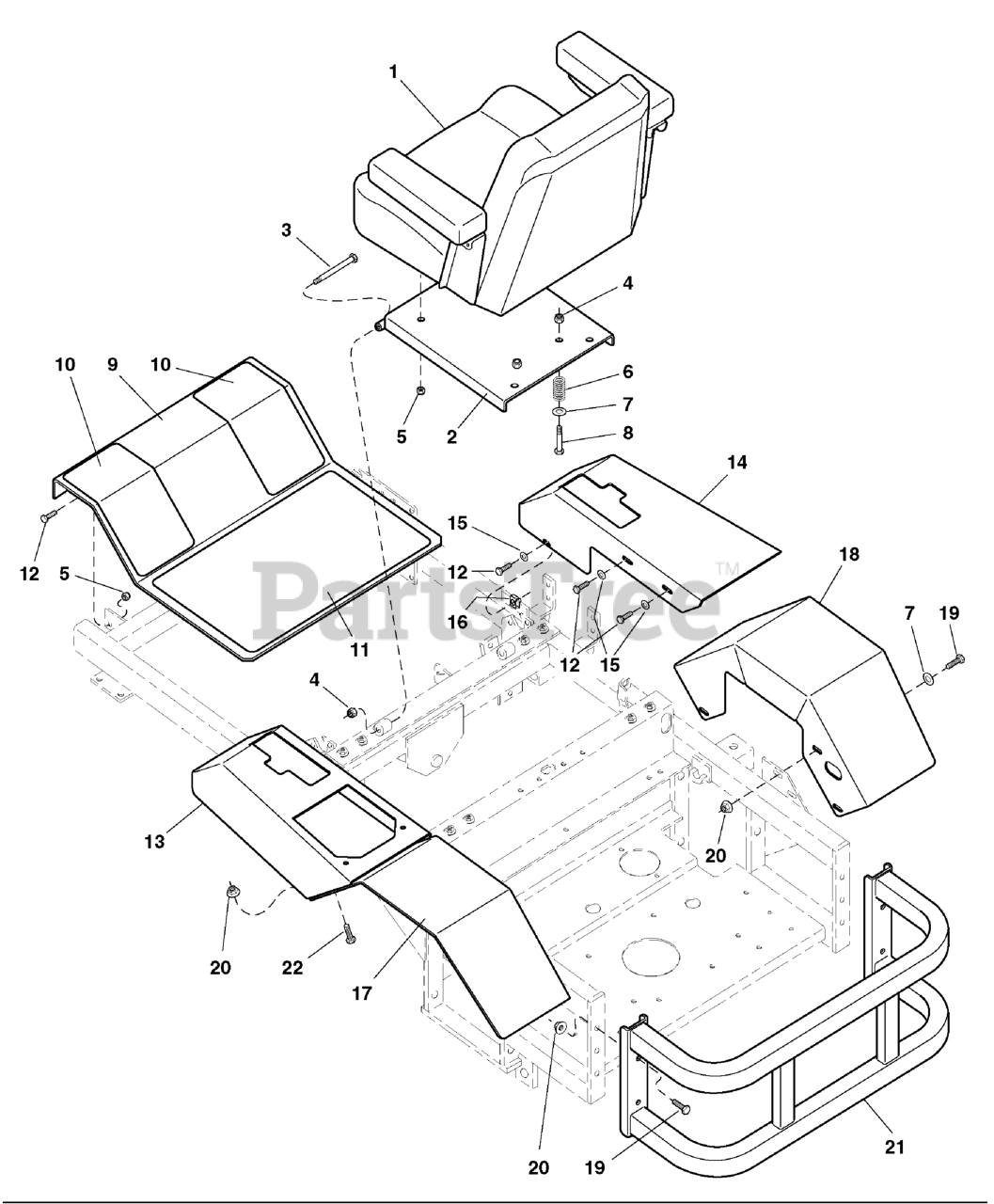

Seat & Mount Group Parts Diagram

  • Title

1

Ferris 5022031

SEAT, GRAY, NO LOGO, CMPT

$

$

Currently unavailable

1

Ferris 5022031X1

CUSHION, Seat, Gray

$245.99

$

Usually ships in 2-12 days

0

1

Ferris 5020930X9

CUSHION, BACK

$248.99

$

Usually ships in 2-12 days

0

1

Ferris 5022440

ARM REST, Black
(Superseded to 5022185)

$70.99

$

Usually ships in 2-12 days

0

2

Ferris 5045156B

SEAT MOUNT PLATE

$119.99

$

Usually ships in 2-12 days

0

3

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

4

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5021102

SPRING, Compression
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 4 left!

0

9

Ferris 5045333B

FLOOR PAN

$284.99

$

Usually ships in 2-12 days

0

10

Ferris 5045915

SAFETY WALK
(Superseded to 5101010YP)

$15.99

$

Usually ships in 2-12 days

0

11

Ferris 5101113

SAFETY WALK, 11.50 X 19.00
(Superseded to 5101114YP)

Note: WAS 5044873

$68.99

$

Usually ships in 2-12 days

0

12

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

13

Ferris 5045933B

COVER, Control - LH

$

$

Currently unavailable

14

Ferris 5045935B

COVER, Control - RH

$

$

Currently unavailable

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

17

Ferris 5045930B

FENDER, LH

$

$

Currently unavailable

18

Ferris 5045928B

FENDER, RH

$153.99

$

Usually ships in 2-12 days

0

19

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

20

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

21

Ferris 5045384B

BUMPER

$

$

Currently unavailable

22

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5100636

SPRING, EXTENSION, SEAT ADJUSTMENT (YEL OR BLK)
(Superseded to 5100636SM)

Note: (SV)(Not an illustrated part.) (2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0
