IS Z (5901081) - Ferris ISZ Series 52" Zero-Turn Mower, 23hp Kawasaki (SN: 2269 & Above) 52" Mower Deck - Rear Mount Bars Parts Diagram

ISZ Series 52" Zero-Turn Mower, 23hp Kawasaki

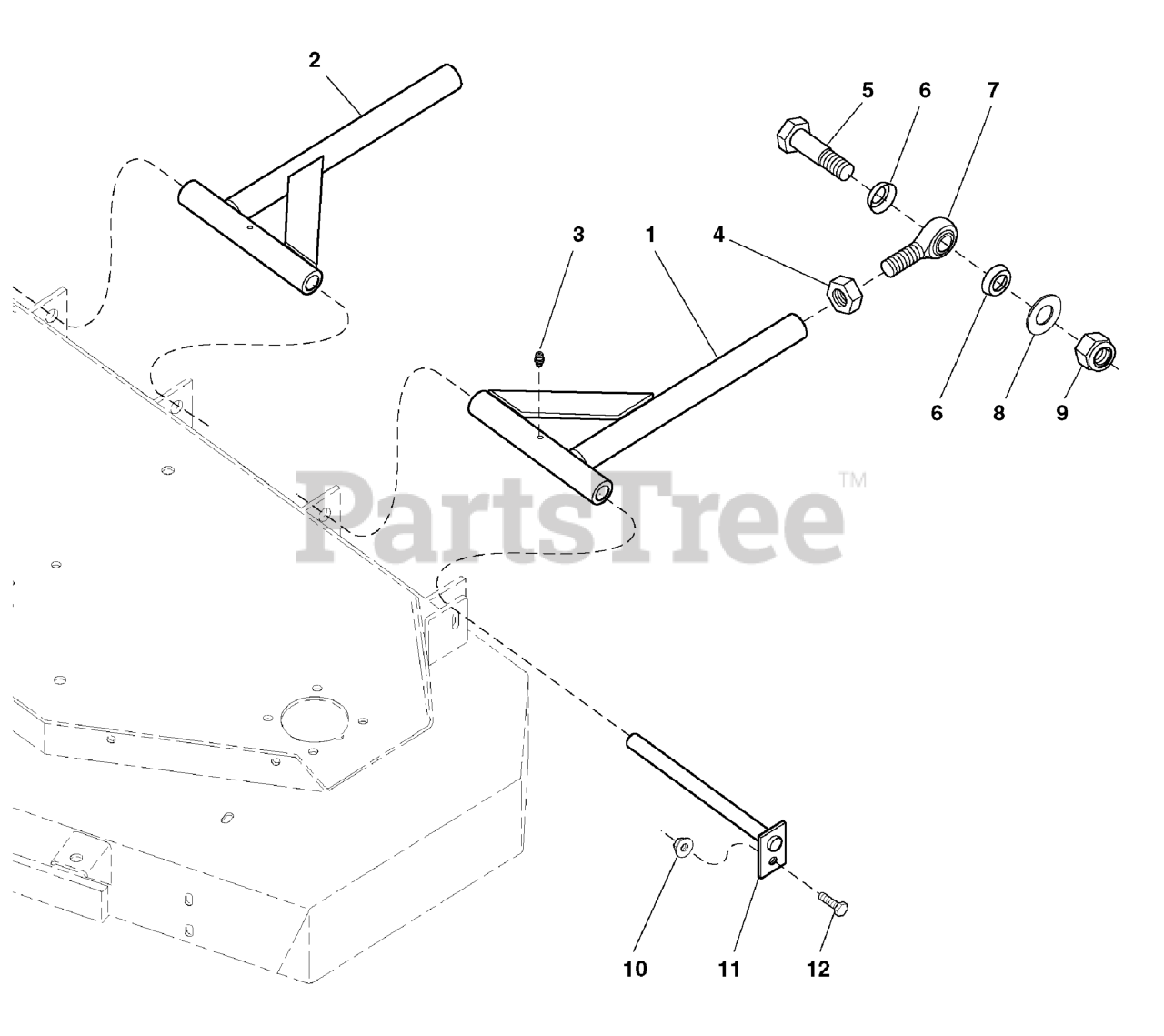

52" Mower Deck - Rear Mount Bars Parts Diagram

  • Title

1

Ferris 5045103B

52" DECK PUSHER BAR-LH

$104.99

$

Usually ships in 2-12 days

0

2

Ferris 5045104B

52" DECK PUSHER BAR-RH

$

$

Currently unavailable

3

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

4

Ferris 5025093

NUT, 3/4-16 Hex Jam
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

5

Ferris 5025265X24

BOLT, 3/4-16 x 3
(Superseded to 5025265X24SM)

$13.99

$

In Stock, only 2 left!

0

6

Ferris 5022111

ROD END SEAL
(Superseded to 5022111SM)

$15.99

$

In Stock, Qty 8

0

7

Ferris 5022039

BALL JOINT, 3/4-16 Male
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

8

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025284

NUT, 3/4-16 Hex Nylon Lock
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0

10

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

11

Ferris 5045037A

NLA - WELD, DECK MOUNT SHAFT - BLK
(Superseded to 5045037AA)

Note: SECURED W/ 5025013X8 & 5101414

$39.99

$

In Stock, only 2 left!

0

12

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0
