IS Z (5901079) - Ferris ISZ Series 61" Zero-Turn Mower, 25hp Kohler (SN: 2269 & Above) Fuel Tank & Mount Group Parts Diagram

ISZ Series 61" Zero-Turn Mower, 25hp Kohler

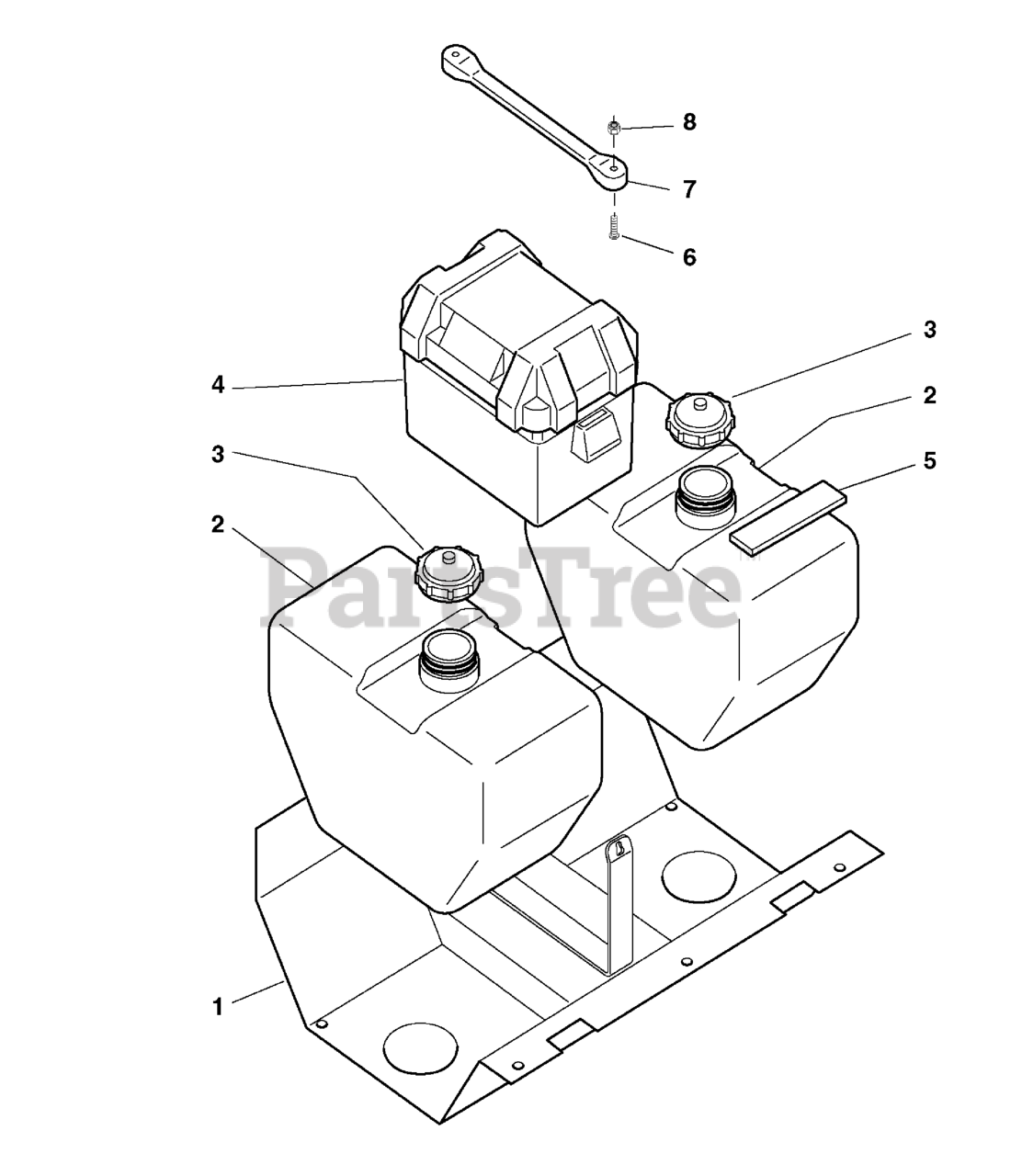

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5045920B

FUEL TANK MOUNT PAN

$

$

Currently unavailable

2

Ferris 5021437

FUEL TANK, 4 Gallon

$160.99

$

Usually ships in 2-12 days

0

3

Ferris 5021468

CAP, Fuel Tank

$

$

Not available

4

Ferris 5021666

BOX, Battery
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

5

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

6

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5021670

RUBBER STRAP
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

8

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5050831X24

1/4" Fuel Line, 24" Long
(Superseded to 5050831X24YP)

Note: (Tank to valve, Not Shown)

$8.99

$

Usually ships in 2-12 days

0

10

Ferris 5050831X36

1/4" Fuel Line, 36" Long
(Superseded to 5050831X36SM)

Note: (Valve to Engine, Not Shown)

$13.99

$

Usually ships in 2-12 days

0

11

Ferris 5050833X20

WIRE LOOM, 20"

Note: (Tank to valve, Not Shown)

$4.99

$

Usually ships in 2-12 days

0

12

Ferris 5050833X33

WIRE LOOM, 33"

Note: (Valve to Engine, Not Shown)

$

$

Not available
