IS Z (5901078) - Ferris ISZ Series 52" Zero-Turn Mower, 25hp Kohler (SN: 2269 & Above) Hydraulic Group (S/N: 101 - 2503) Parts Diagram

ISZ Series 52" Zero-Turn Mower, 25hp Kohler

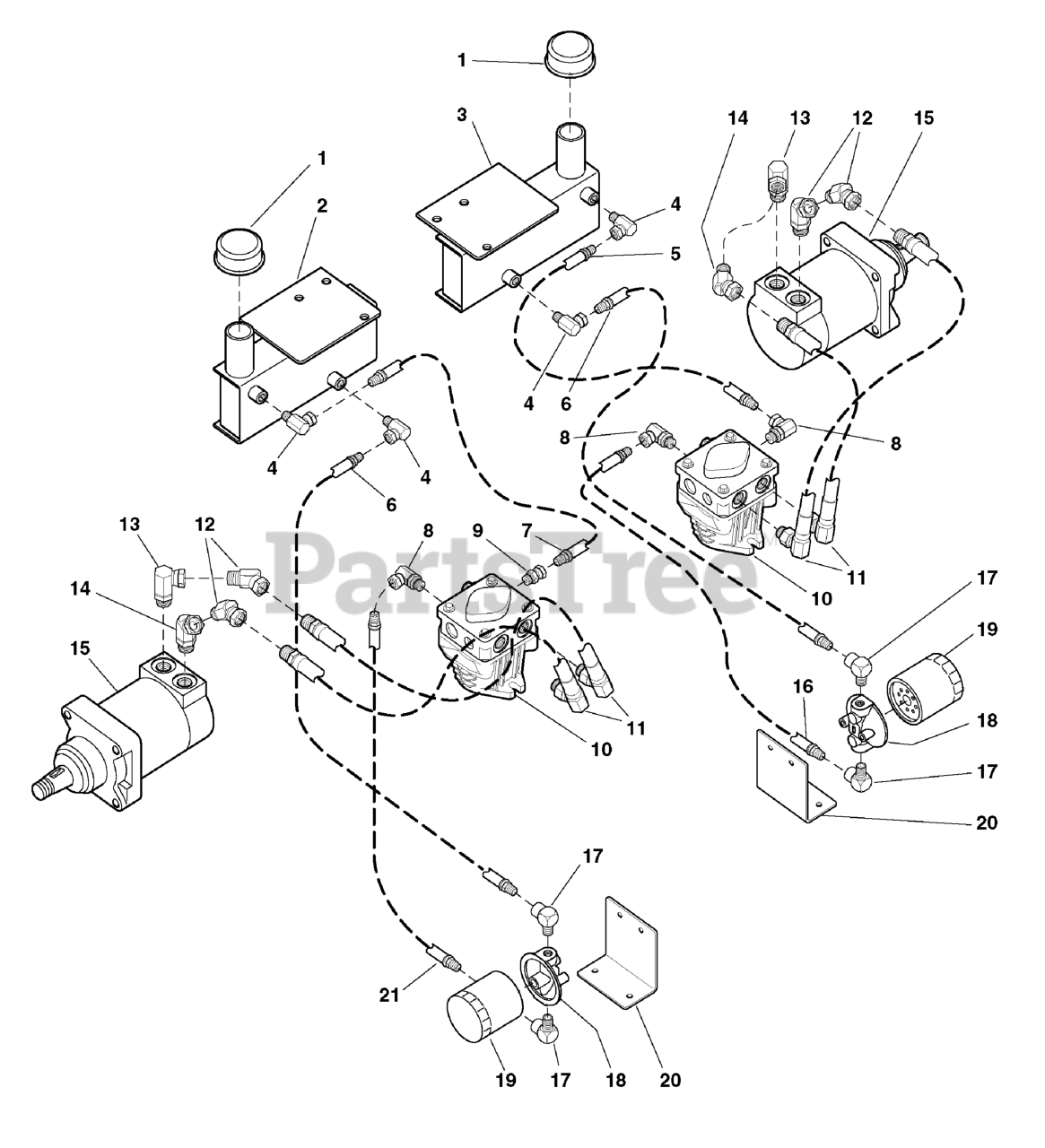

Hydraulic Group (S/N: 101 - 2503) Parts Diagram

  • Title

1

Ferris 5021871

BREATHER
(Superseded to 5021871SM)

$

$

Not available

2

Ferris 5045269B

HYDRO TANK, LH

$

$

Currently unavailable

3

Ferris 5045270B

HYDRO TANK, RH

$

$

Currently unavailable

4

Ferris 5022108

FITTING, 1/4" NPT 90 Degree Swivel

$12.99

$

Usually ships in 2-12 days

0

5

Ferris 5045953

HOSE ASSEMBLY-24"

Note: (pump-to-tank, RH)

$26.99

$

Usually ships in 2-12 days

0

6

Ferris 5045949

HOSE ASSEMBLY-13"

Note: (tank-to-filter)

$42.99

$

Usually ships in 2-12 days

0

7

Ferris 5045950

HOSE ASSEMBLY-14"

Note: (pump-to-tank, LH)

$19.99

$

Usually ships in 2-12 days

0

8

Ferris 5022453

FITTING, O-Ring, 90 Deg. Swivel
(Superseded to 5022052)

$16.99

$

Usually ships in 2-12 days

0

9

Ferris 5022053

FITTING, 9/16" O-Ring Straight Swivel

$6.49

$

Usually ships in 2-12 days

0

10

Ferris 5022338

HYDRAULIC PUMP

$1396.99

$

Usually ships in 2-12 days

0

11

NLA - SOURCE LOCALLY

$

$

Not available

12

Ferris 5021361

FITTING, 1/2 NPT, 45 Deg. Swivel
(Superseded to 5021361SM)

$27.99

$

Usually ships in 2-12 days

0

13

Ferris 5021131

FITTING, O-Ring, 90 Deg. Swivel
(Superseded to 5021131FS)

$24.99

$

Usually ships in 2-12 days

0

14

Ferris 5022210

FITTING, 7/8" O-Ring 45 Degree Swivel

$

$

Currently unavailable

15

Ferris 5022042

HYDRAULIC WHEEL MOTOR

$1709.99

$

Usually ships in 2-12 days

0

15

Ferris 5022042X2

KEY
(Superseded to 5022042X2SM)

$10.99

$

In Stock, only 1 left!

0

15

Ferris 5022042X3

NUT & COTTER PIN
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

16

Ferris 5045952

HOSE ASSEMBLY-18"

Note: (filter-to-pump, RH)

$

$

Currently unavailable

17

Ferris 5022055

FITTING, 1/4 NPT, 90 Deg.

$

$

Currently unavailable

18

Ferris 5022027

FILTER HEAD

$67.99

$

Usually ships in 2-12 days

0

19

Ferris 5022028X1

FILTER
(Superseded to 5022028X1YP)

$41.99

$

In Stock, only 1 left!

0

20

Ferris 5044981B

MOUNT, Filter Head

$

$

Currently unavailable

21

Ferris 5045951

HOSE ASSEMBLY-16"

Note: (filter-to-pump, LH)

$23.99

$

Usually ships in 2-12 days

0
